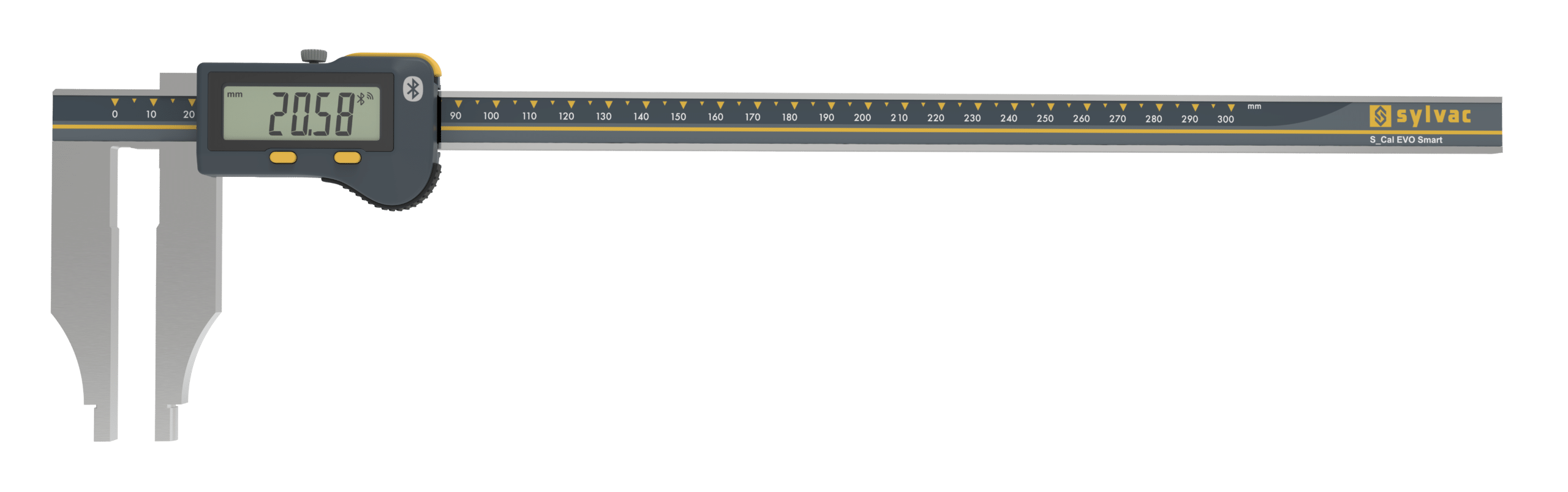

Caliper S_Cal EVO Form E Mid-size Caliper R5

Starting at :
CHF 593.00

*Available in different measuring ranges

Description

Versatile high-quality mid-size caliper with integrated Bluetooth®.
SIS
Smart Inductive System (SIS)

Features

  • Extended Reach: The 100mm long jaws allow the caliper to reach into deep or hard-to-access areas, for external dimensions and internal dimensions from 10,1mm. This is particularly useful in applications where the measurement target is located in a recessed or confined space.
  • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Built to Last: Crafted with a mechanical frame in 5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
  • Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
  • User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

810-1546
EAN 7640125714593
Measuring range (mm) 300
Accuracy (mm) 0.03
Resolution (mm) 0.01

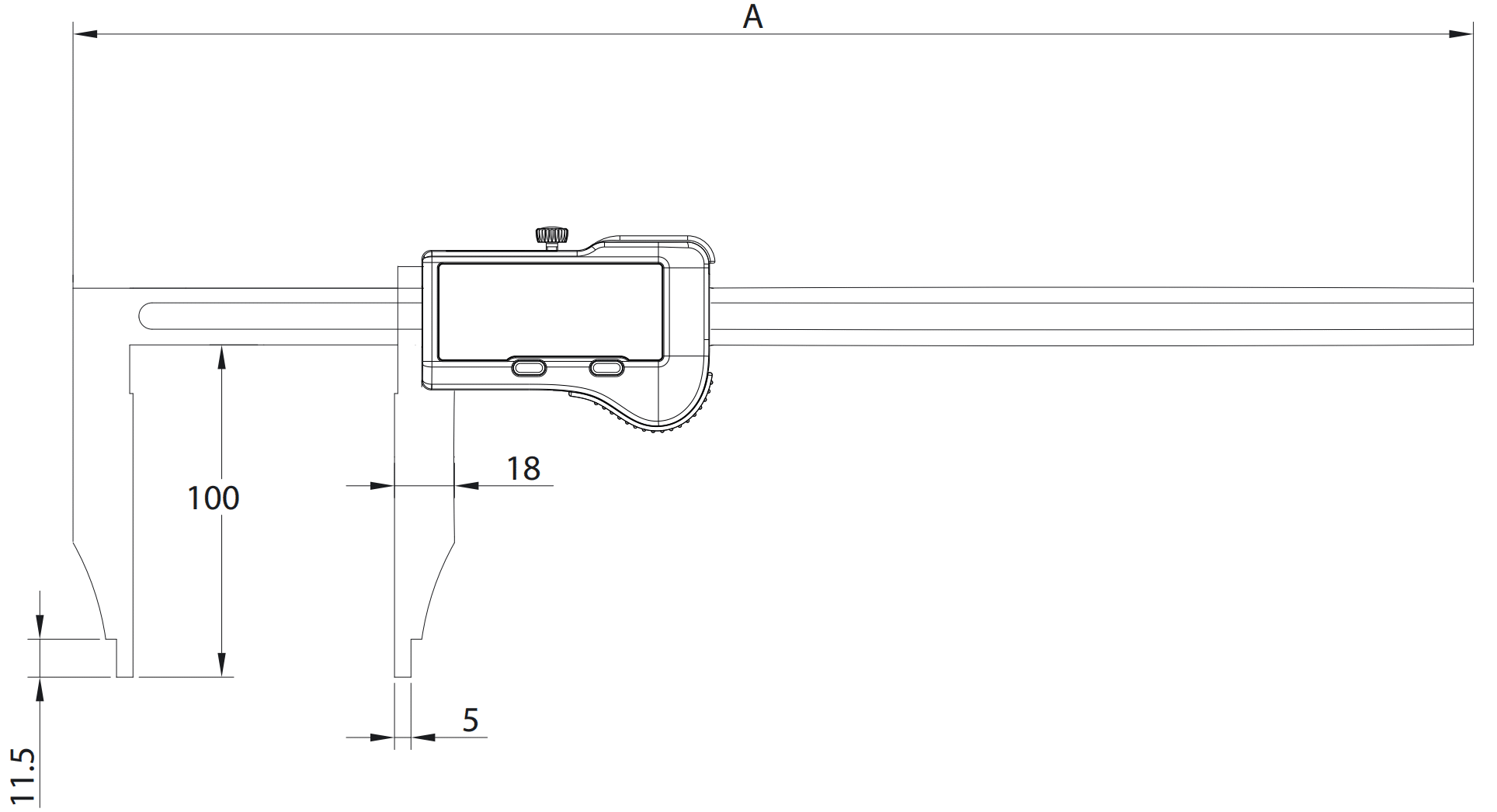

A (mm) 424
Bar section (mm) 17 x 5
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive Sensor



810-1546
EAN 7640125714593
Measuring range (mm) 300
Accuracy (mm) 0.03
Resolution (mm) 0.01
A (mm) 424
Bar section (mm) 17 x 5
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive Sensor



Standard Delivery
Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Accessories
926-7022 S_Footswitch Smart
985-2215 Battery CR2032

Available soon

  • Battery Change

    How To Take Care of your Sylvac instrument : Battery Change

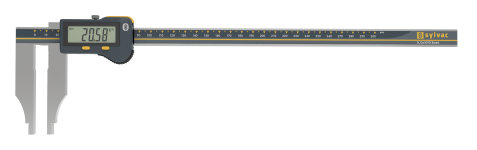

Caliper S_Cal EVO Form E Mid-size Caliper R5
