Caliper S_Cal EVO Basic
Starting at :
CHF 123.00
*Available in different measuring ranges
Description
Affordable professional caliper with IP67 protection.
Features

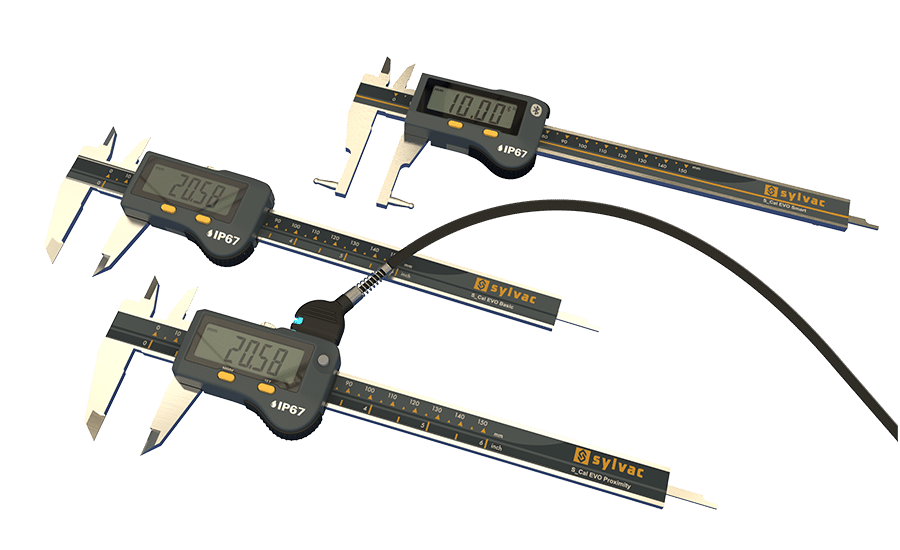

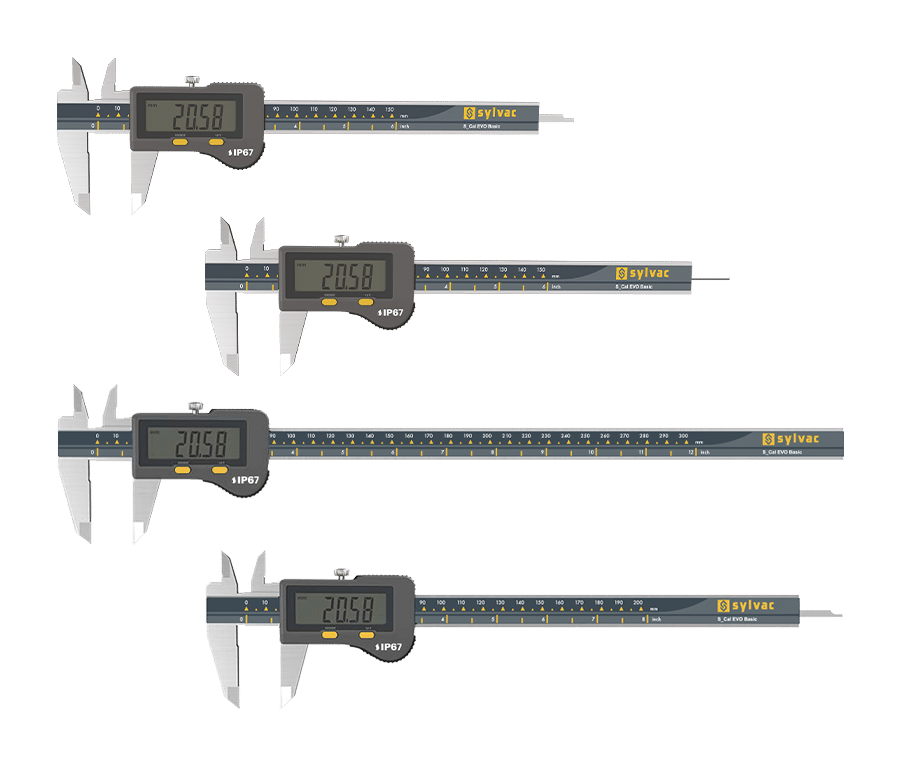

- Versatile options: Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm, available in a variety of configurations including rectangular and cylindrical depth rod options. Thumb wheel available on request.
- Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec, while the intelligent sleeping mode conserves power after 10 minutes of inactivity, optimizing battery life.
- Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments
- User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.
- Intelligent Power Management: Benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
Applications

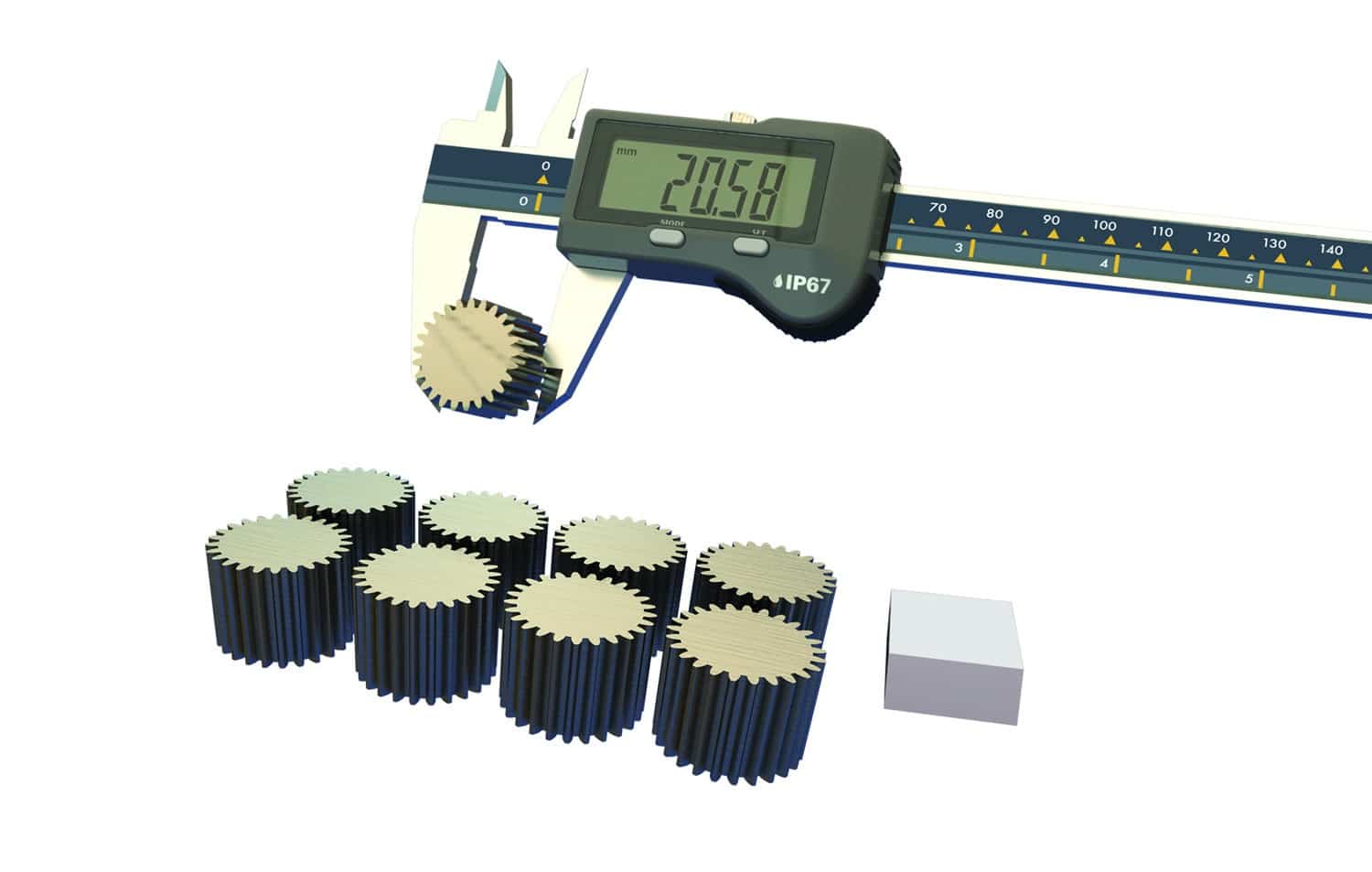

Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 810-1502 | 810-1507 | 810-1522 | 810-1532 | |
| EAN | 7640125682090 | 7640125714098 | 7640125682304 | 7640125682366 |
| Measuring range (mm) | 150 | 200 | 300 | |
| Max. Error G – external measurements EMPE (µm) | 20 ¹ | 30 ¹ | ||
| Max. Error – internal measurements SMPE (µm) | 20-30 ² | 30 ² | 40 ² | |

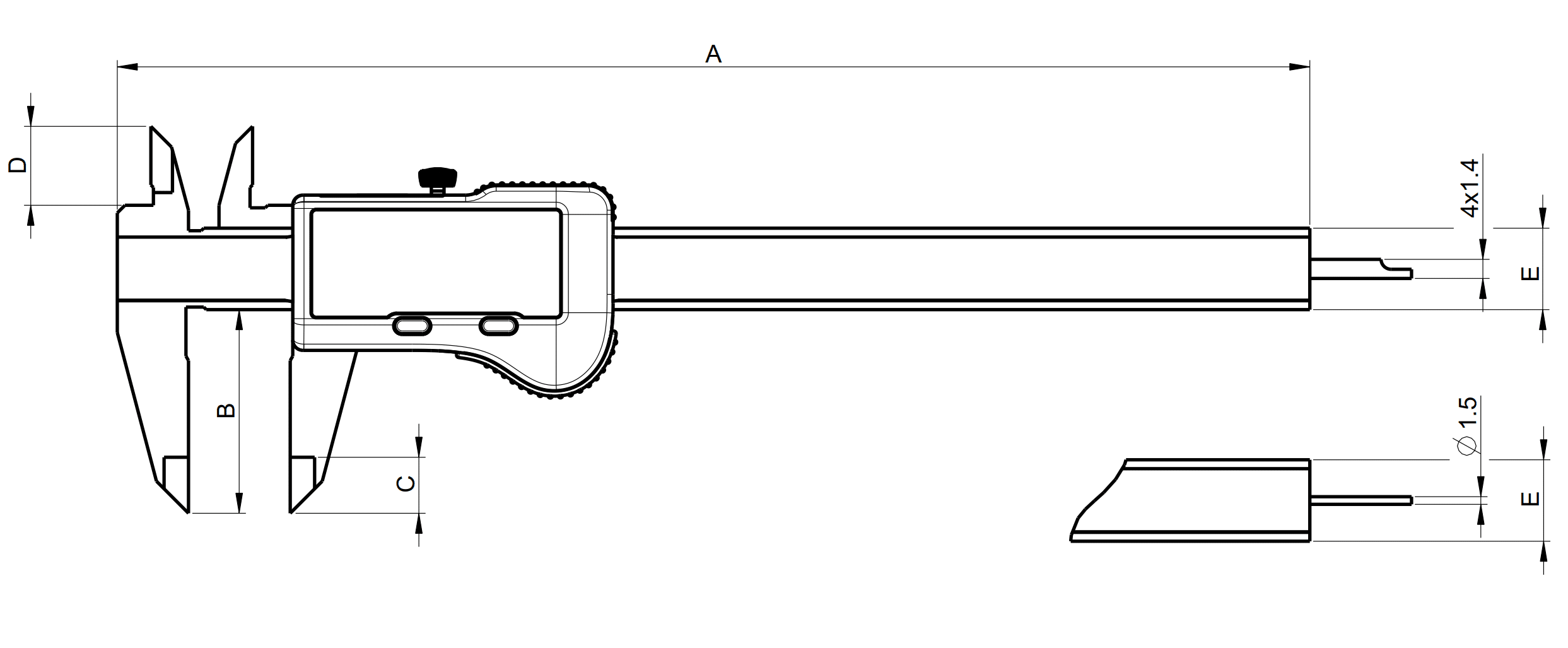

| A (mm) | 234.5 | 290.5 | 388 | |
| B (mm) | 40 | 50 | 64 | |
| C (mm) | 11 | 14 | ||
| D (mm) | 16 | 19 | ||
| E (mm) | 16 x 3.5 | 16 x 4 | ||
| Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 | ▬ 4 x 1.4 | – |
| Protection rating according to IEC 60529 | IP67 | |||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold | |||
¹ 0-150 mm : 20 µm / ISO13385-1
>150 mm : 30 µm / ISO13385-1
² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1
Spécifications
| 810-1502 | 810-1507 | 810-1522 | 810-1532 | |
| EAN | 7640125682090 | 7640125714098 | 7640125682304 | 7640125682366 |
| Measuring range (mm) | 150 | 200 | 300 | |
| Max. Error G – external measurements EMPE (µm) | 20 ¹ | 30 ¹ | ||
| Max. Error – internal measurements SMPE (µm) | 20-30 ² | 30 ² | 40 ² | |
| A (mm) | 234.5 | 290.5 | 388 | |
| B (mm) | 40 | 50 | 64 | |
| C (mm) | 11 | 14 | ||
| D (mm) | 16 | 19 | ||
| E (mm) | 16 x 3.5 | 16 x 4 | ||
| Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 | ▬ 4 x 1.4 | – |
| Protection rating according to IEC 60529 | IP67 | |||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold | |||
¹ 0-150 mm : 20 µm / ISO13385-1
>150 mm : 30 µm / ISO13385-1
² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
