Bench table PS17 VS
Starting at :
CHF 4'066.00
*Available in different measuring ranges
Description

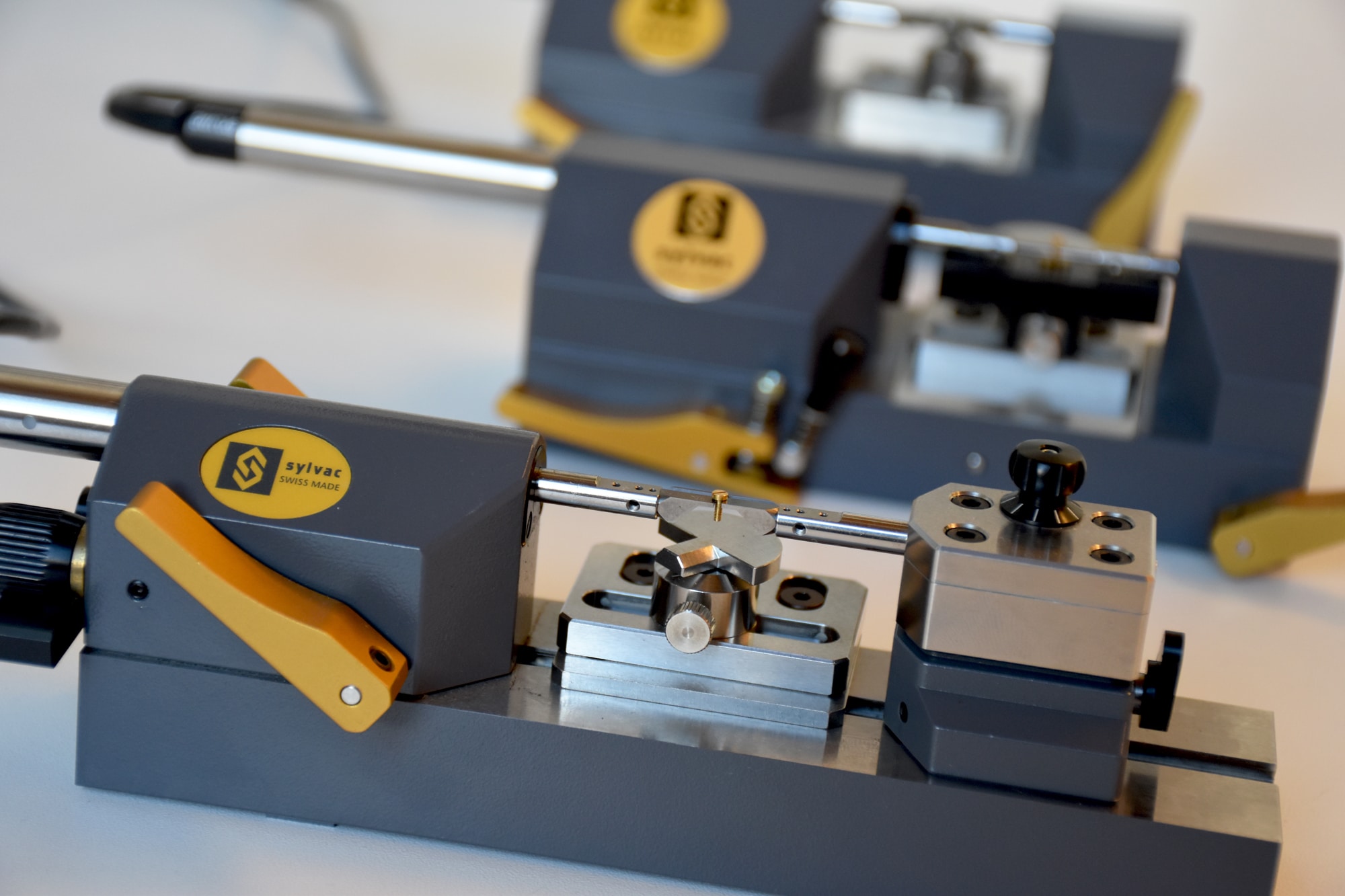

Versatile horizontal bench with adjustable tailstock (X or Z axis).
Swiss made
Features
- Powerful and Compact: With a 37mm measuring capacity and a 10mm range, our small footprint horizontal bench offers flexible use. The adjustable tailstock in the X (and optionally Z) axis allows for customizable setups to meet specific requirements. It features a precise micrometer screw for pre-positioning.
- Robust and user-friendly Design: Crafted from cast iron, our bench excels in tough environments. Effortless axis movement is achieved through two ergonomic levers with ball-bearing guides. The adjustable measuring force of 0.2-1.0N eliminates operator biases. It comes equipped with durable Ø 1.5mm hard metal measuring anvils for reliable performance.

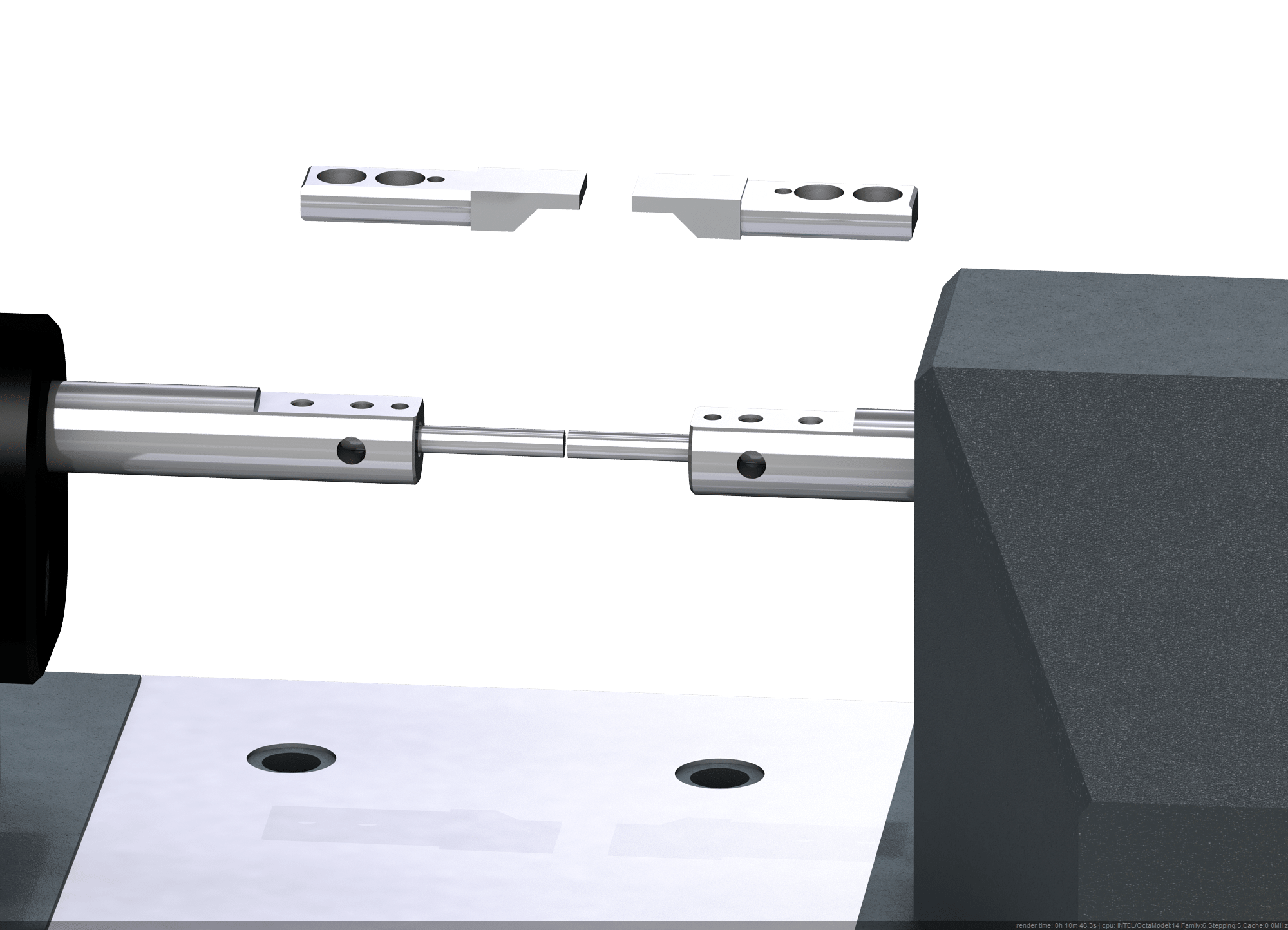

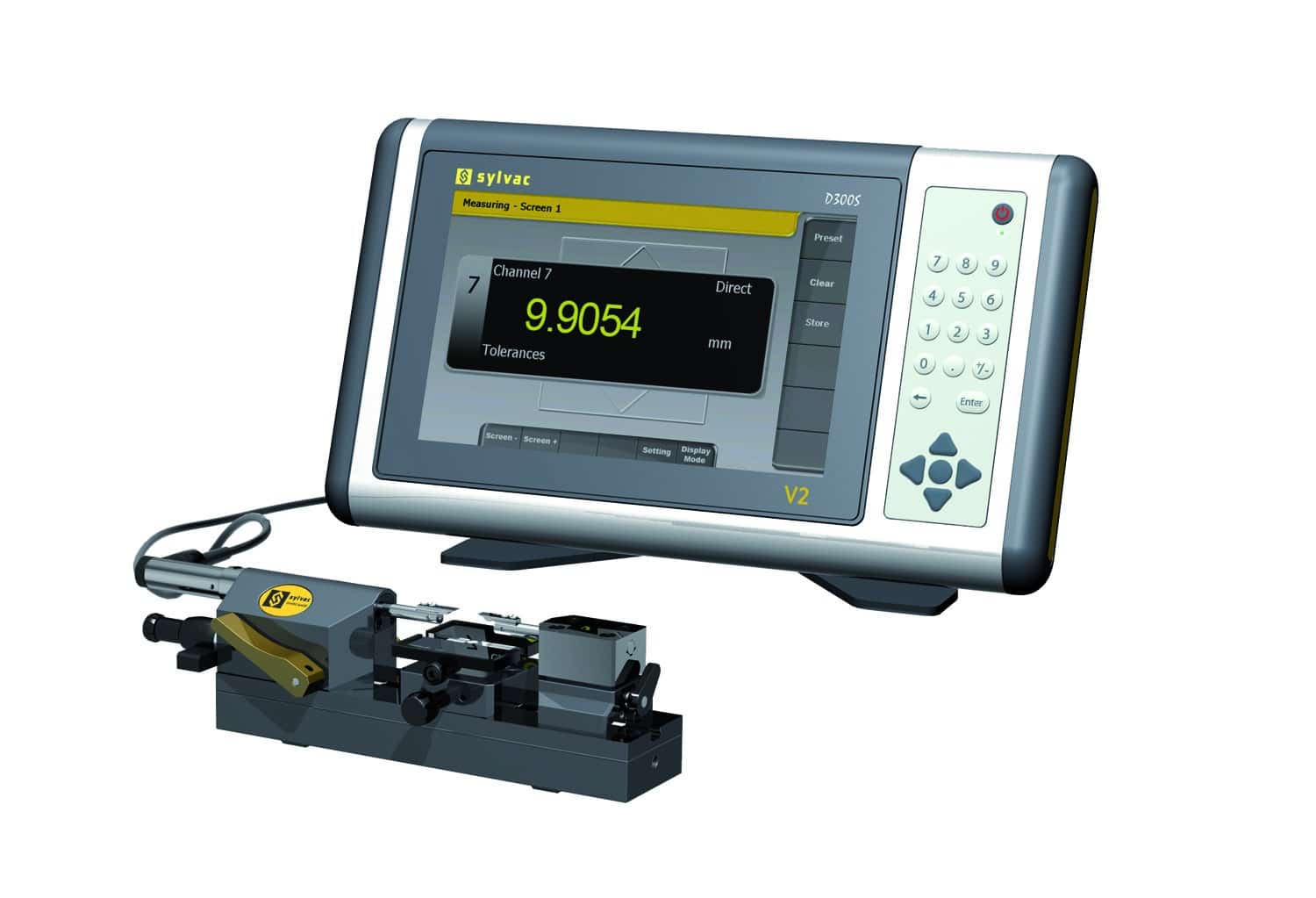

- Versatile and Customizable: Our bench can be equipped with either a digital indicator or a Sylvac measuring probe. An extensive range of measuring anvils and support tables, as well as tailored solutions, can be provided upon request. It is compatible with Sylvac Ø 1.5mm and Cary type anvils.
- Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench table to deliver accurate measurements every time.
Applications
Diameter
Distance
Form deviation
Industries
Automotive
Electronics
Machine tool
Medical device
Watch making
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 908-1242 | |
| EAN | 7640125714548 |
| Type | VS ¹ |
| Measuring system | at choice ² |
| Tailstock adjustable in Z +1.75 mm | ⬤ |

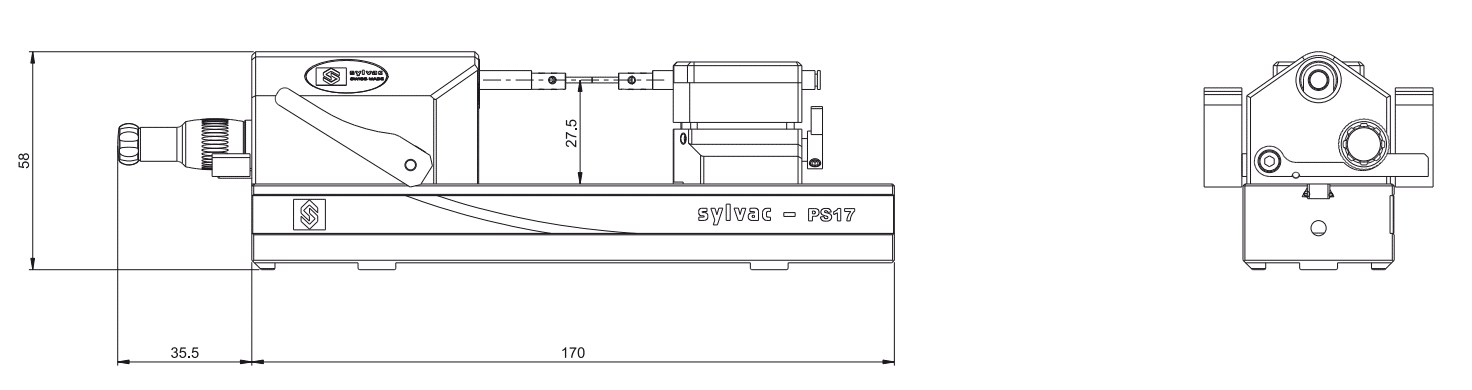

| Measurement capacity C (mm) | 37 |
| Measuring scale (mm) | 10 |
| Adjustable measuring force (N) | 0.2 – 1.0 |
| Weight (kg) | 1.4 |
| Clamping anvils Ø 1.5 mm | ⬤ |
| Compatibility with Cary | ⬤ |
| Micrometer screw | ⬤ |
Spécifications
| 908-1242 | |
| EAN | 7640125714548 |
| Type | VS ¹ |
| Measuring system | at choice ² |
| Tailstock adjustable in Z +1.75 mm | ⬤ |
| Measurement capacity C (mm) | 37 |
| Measuring scale (mm) | 10 |
| Adjustable measuring force (N) | 0.2 – 1.0 |
| Weight (kg) | 1.4 |
| Clamping anvils Ø 1.5 mm | ⬤ |
| Compatibility with Cary | ⬤ |
| Micrometer screw | ⬤ |
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications |
| Instruction manual |
| Measuring anvils Ø 1.5 mm (908-2175) |
| Dust cover |
Accessories
| Accessories | ||
 |
908-2290 | Supporting table adjustable XYZ |
 |
908-2301 | Supporting table adjustable XZ |
  |
908-2296 | Floating table |
 |
908-2310 | Kit for low and strong measuring force |
 |
908-2198 | Replacement lapping stone for 908-2199 |
 |
908-2199 | Lapping device (3 stones and lapping liquid included) |
| Anvils Ø1.5 | N° | Designation | B | F | C |
 |
908-2175 | Cylindrical anvils TC Ø 1.5 mm | – | 8 | Ø 1.5 |
| 908-2176 | Cylindrical anvils TC Ø 2 mm | – | 8 | Ø 2 | |
 |
908-2174 | Knife-shaped anvils TC 0.7 mm | 0.70 | 2.2 | 4 |
| 908-2178 | Knife-shaped anvils TC 0.4 mm | 0.40 | 2.2 | 4 | |
| 908-2179 | Knife-shaped anvils TC 0.3 mm | 0.30 | 2.2 | 4 | |
| 908-2180 | Knife-shaped anvils standard TC 0.2 mm | 0.20 | 2.2 | 4 | |
| 908-2181 | Knife-shaped anvils standard TC 0.14 mm | 0.14 | 2.2 | 4 | |
| 908-2182 | Knife-shaped anvils standard TC 0.1 mm | 0.10 | 2.2 | 4 | |
|
908-2201 | Knife-shaped anvils TC 0.7 mm/V | 0.70 | 2.2 | 4 |
 |
908-2202 | Knife-shaped anvils standard TC 1.5 mm | 1.5 | 2.2 | 4 |
| Anvils Cary | N° | Designation | B | F | C |
|
908-2214 | Knife-shaped anvils TC 0.10 mm | 0.10 | 2.2 | 4 |
| 908-2221 | Knife-shaped anvils TC 0.12 mm | 0.12 | 2.2 | 4 | |
| 908-2215 | Knife-shaped anvils TC 0.14 mm | 0.14 | 2.2 | 4 | |
| 908-2213 | Knife-shaped anvils TC 0.15 mm | 0.15 | 2.2 | 4 | |
| 908-2216 | Knife-shaped anvils TC 0.20 mm | 0.20 | 2.2 | 4 | |
| 908-2217 | Knife-shaped anvils TC 0.30 mm | 0.30 | 2.2 | 4 | |
| 908-2218 | Knife-shaped anvils TC 0.40 mm | 0.40 | 2.2 | 4 | |
| 908-2219 | Knife-shaped anvils TC 0.70 mm | 0.70 | 2.2 | 4 | |
 |
908-2220 | Knife-shaped anvils TC 0.70 mm/vé | 0.70 | 2.2 | 4 |
 |
908-2223 | Knife-shaped anvils TC 1.5 mm | – | 6 | Ø1.5 |
| 908-2224 | Cylindrical anvils TC Ø 1.5 mm | – | 6 | Ø2 | |
| 908-2225 | Cylindrical anvils TC Ø 2.0 mm | – | 6 | Ø3 | |
 |
908-2222 | Beveled anvils TC 1.5×0.05 mm | 1.50 | 2.2 | 4 |
