    Bench table PS17 Entre-portée

    Starting at :
    CHF 5'056.00

    *Available in different measuring ranges

    Description

    Versatile horizontal bench with adjustable tailstock (X and Z axis), with integrated mini indicator.
    MicrosoftTeams-image (5)
    Swiss made

    Features

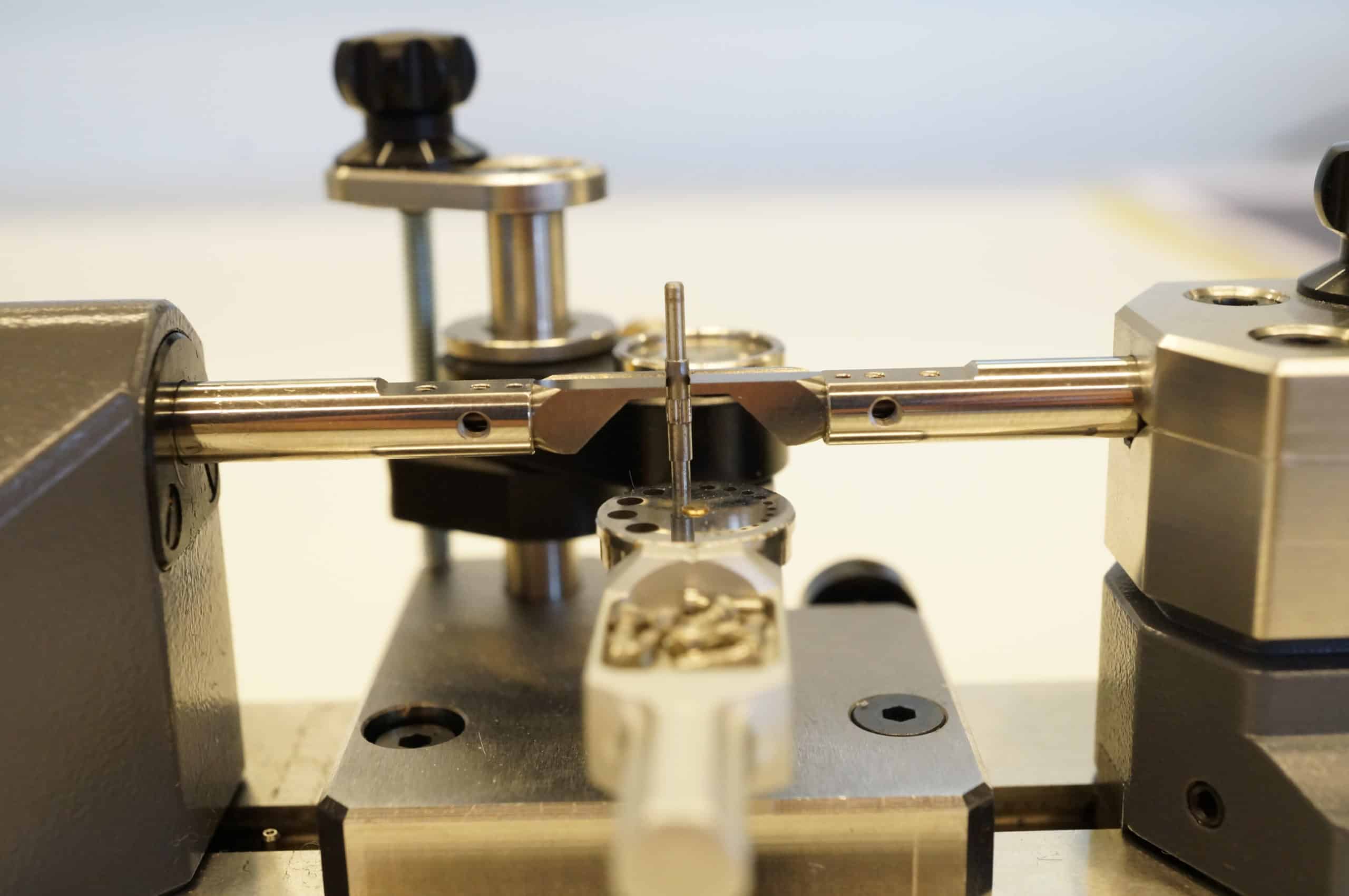

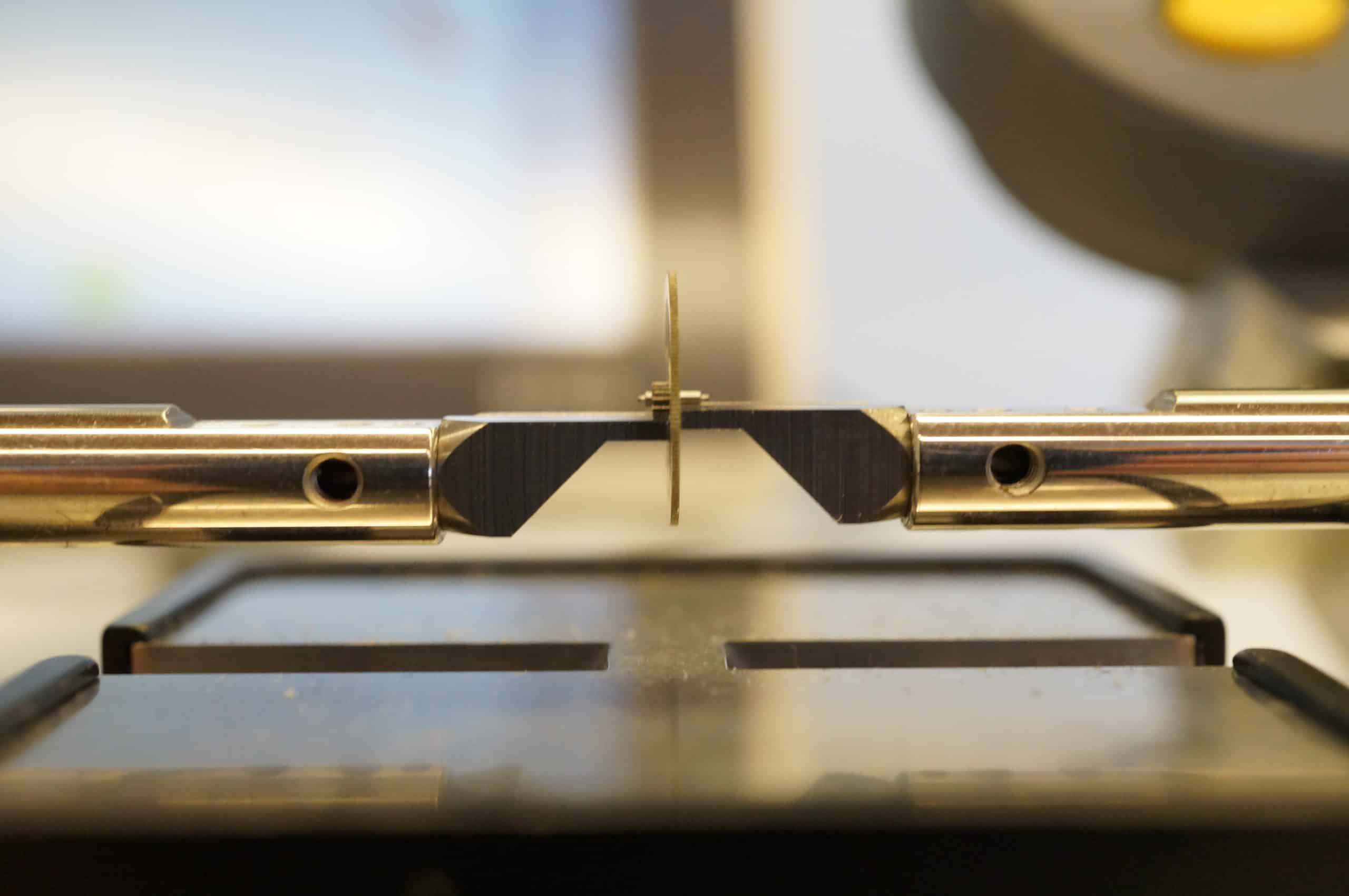

    • Powerful and Compact: Our small horizontal measuring bench offers flexible use with an adjustable tailstock (X and Y axis). It features a precise micrometer screw for pre-positioning and includes carbide anvils (0.7mm with 90°V) for between-span thickness measurement.
    • Robust and user-friendly Design: Crafted from cast iron, our bench excels in tough environments. Effortless axis movement is achieved through two ergonomic levers. The adjustable measuring force of 0.2-1.0N eliminates operator biases.

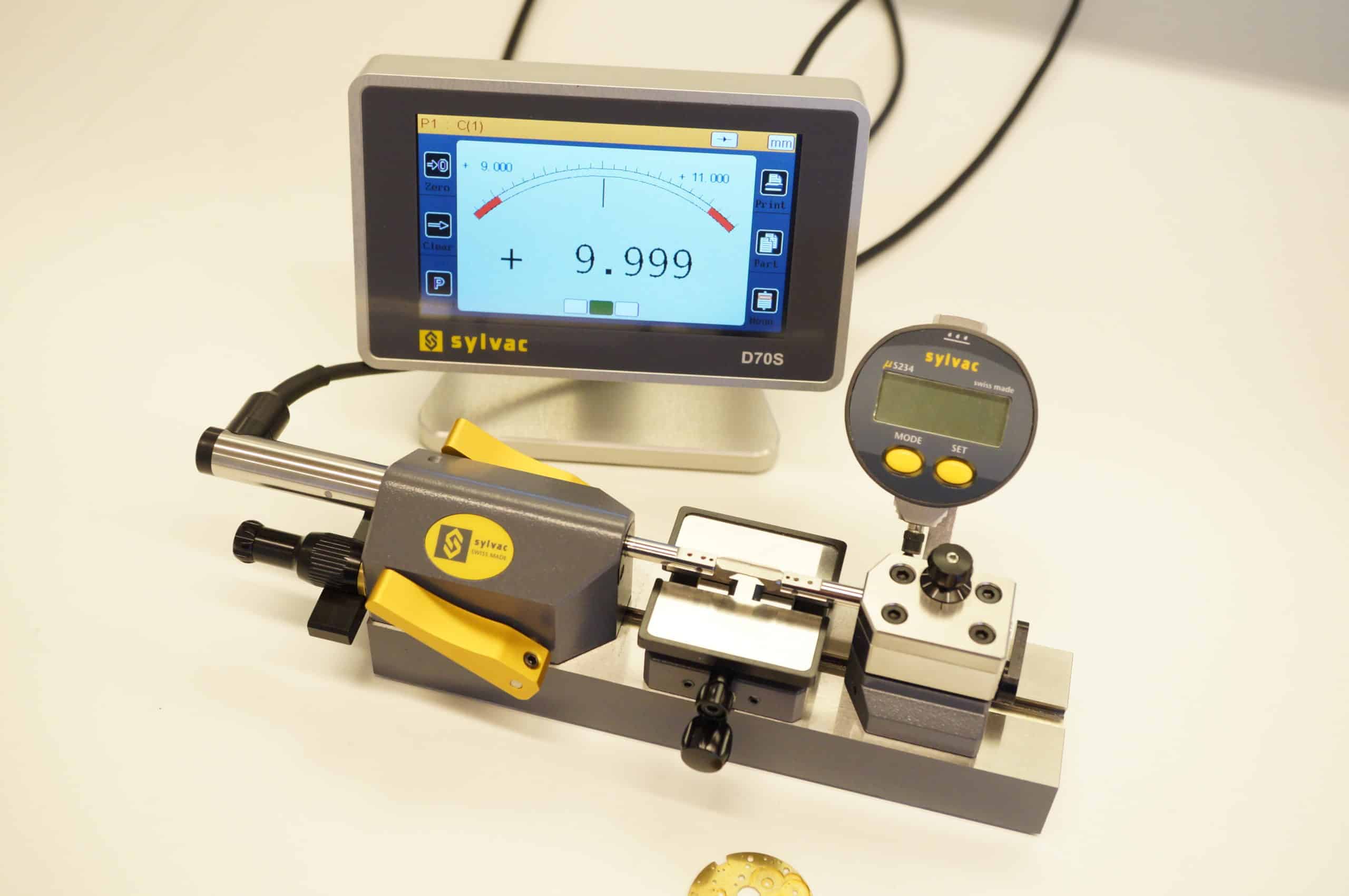

    • Versatile and Customizable: Our bench can be equipped with either a digital indicator or a Sylvac measuring probe. An extensive range of measuring anvils and support tables, as well as tailored solutions, can be provided upon request. It is compatible with Sylvac Ø 1.5mm and Cary type anvils.
    • Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench to deliver accurate measurements every time.

    Applications

    icon-diameter
    Diameter
    logicielsDistance
    Distance
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device
    icon-watch-making-sylvac
    Watch making

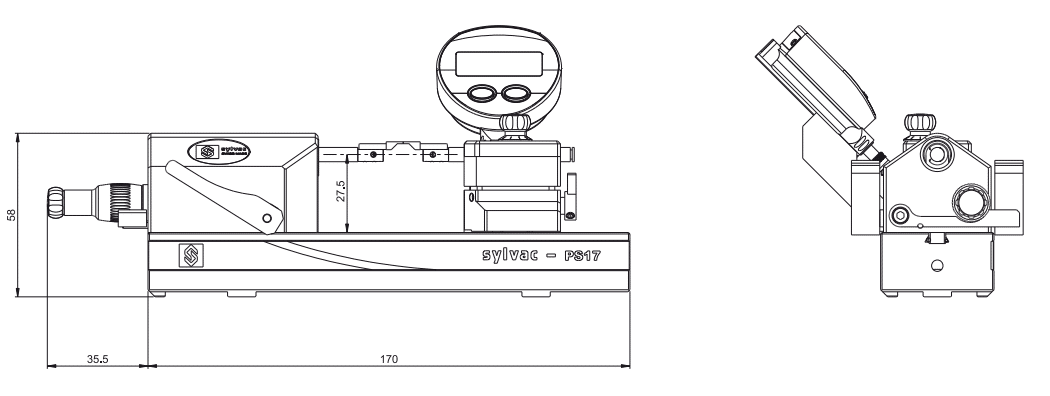

    Overview

    908-1244
    EAN 7640125023213
    Type VS
    Measuring system at choice ¹
    Tailstock adjustable in Z +1.75 mm
    Measurement capacity C (mm) 0 – 37
    Measurement scale (mm) 0 – 10
    Measurement force (N) 1
    Working temperature (storage) (°C) 5 – 40 (-10 – 60)
    Weight (kg) 1.4
    Cary Compatibility
    Micrometer screw

    ¹ Not included in delivery

    908-1244
    EAN 7640125023213
    Type VS
    Measuring system at choice ¹
    Tailstock adjustable in Z +1.75 mm
    Measurement capacity C (mm) 0 – 37
    Measurement scale (mm) 0 – 10
    Measurement force (N) 1
    Working temperature (storage) (°C) 5 – 40 (-10 – 60)
    Weight (kg) 1.4
    Cary Compatibility
    Micrometer screw

    ¹ Not included in delivery

    Instrument according to technical specifications
    Instruction manual
    Measuring anvils Cary 0.7 mm with Vé (908-2220)
    Mini digital indicator
    Dust cover
    Accessories
    908-2290 Supporting table adjustable XYZ
    908-2301 Supporting table adjustable XZ
    908-2296 Floating table
    908-2310 Kit for low and strong measuring force
    908-2198 Replacement lapping stone for 908-2199
    908-2199 Lapping device (3 stones and lapping liquid included)



    Anvils Ø1.5 Designation B F C
    908-2175 Cylindrical anvils TC Ø 1.5 mm 8 Ø 1.5
    908-2176 Cylindrical anvils TC Ø 2 mm 8 Ø 2
    908-2174 Knife-shaped anvils TC 0.7 mm 0.70 2.2 4
    908-2178 Knife-shaped anvils TC 0.4 mm 0.40 2.2 4
    908-2179 Knife-shaped anvils TC 0.3 mm 0.30 2.2 4
    908-2180 Knife-shaped anvils standard TC 0.2 mm 0.20 2.2 4
    908-2181 Knife-shaped anvils standard TC 0.14 mm 0.14 2.2 4
    908-2182 Knife-shaped anvils standard TC 0.1 mm 0.10 2.2 4
    908-2201 Knife-shaped anvils TC 0.7 mm/V 0.70 2.2 4
    908-2202 Knife-shaped anvils standard TC 1.5 mm 1.5 2.2 4



    Anvils Cary Designation B F C
    908-2214 Knife-shaped anvils TC 0.10 mm 0.10 2.2 4
    908-2221 Knife-shaped anvils TC 0.12 mm 0.12 2.2 4
    908-2215 Knife-shaped anvils TC 0.14 mm 0.14 2.2 4
    908-2213 Knife-shaped anvils TC 0.15 mm 0.15 2.2 4
    908-2216 Knife-shaped anvils TC 0.20 mm 0.20 2.2 4
    908-2217 Knife-shaped anvils TC 0.30 mm 0.30 2.2 4
    908-2218 Knife-shaped anvils TC 0.40 mm 0.40 2.2 4
    908-2219 Knife-shaped anvils TC 0.70 mm 0.70 2.2 4
    908-2220 Knife-shaped anvils TC 0.70 mm/vé 0.70 2.2 4
    908-2223 Knife-shaped anvils TC 1.5 mm 6 Ø1.5
    908-2224 Cylindrical anvils TC Ø 1.5 mm 6 Ø2
    908-2225 Cylindrical anvils TC Ø 2.0 mm 6 Ø3
    908-2222 Beveled anvils TC 1.5×0.05 mm 1.50 2.2 4
    • Cleaning your bench table

      How To Take Care of your Sylvac instrument : Cleaning and lubricate your bench table, only with benzine
