    Bench table PS16 V2 Goutte Smart

    Starting at :
    CHF 7'397.00

    *Available in different measuring ranges

    Description

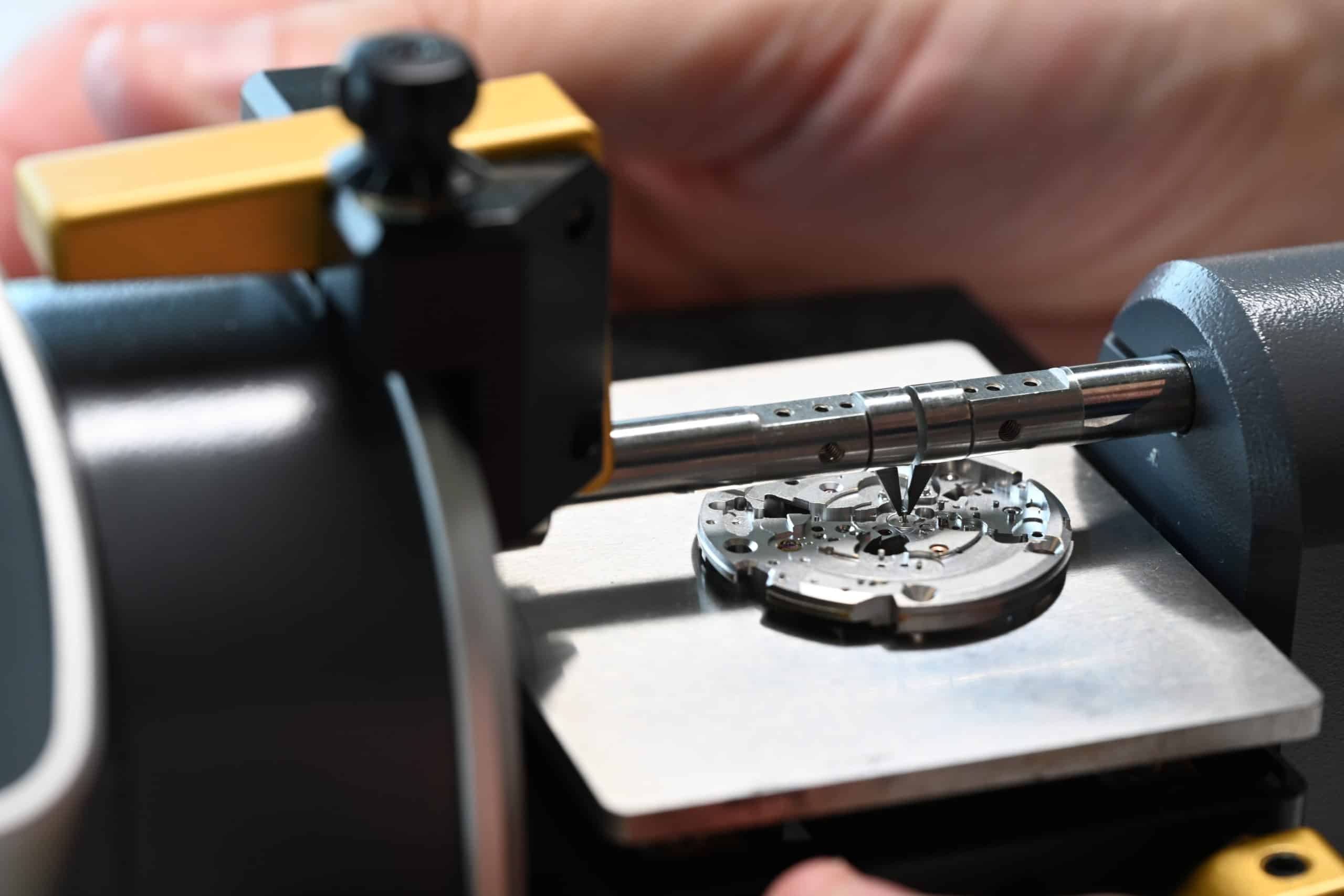

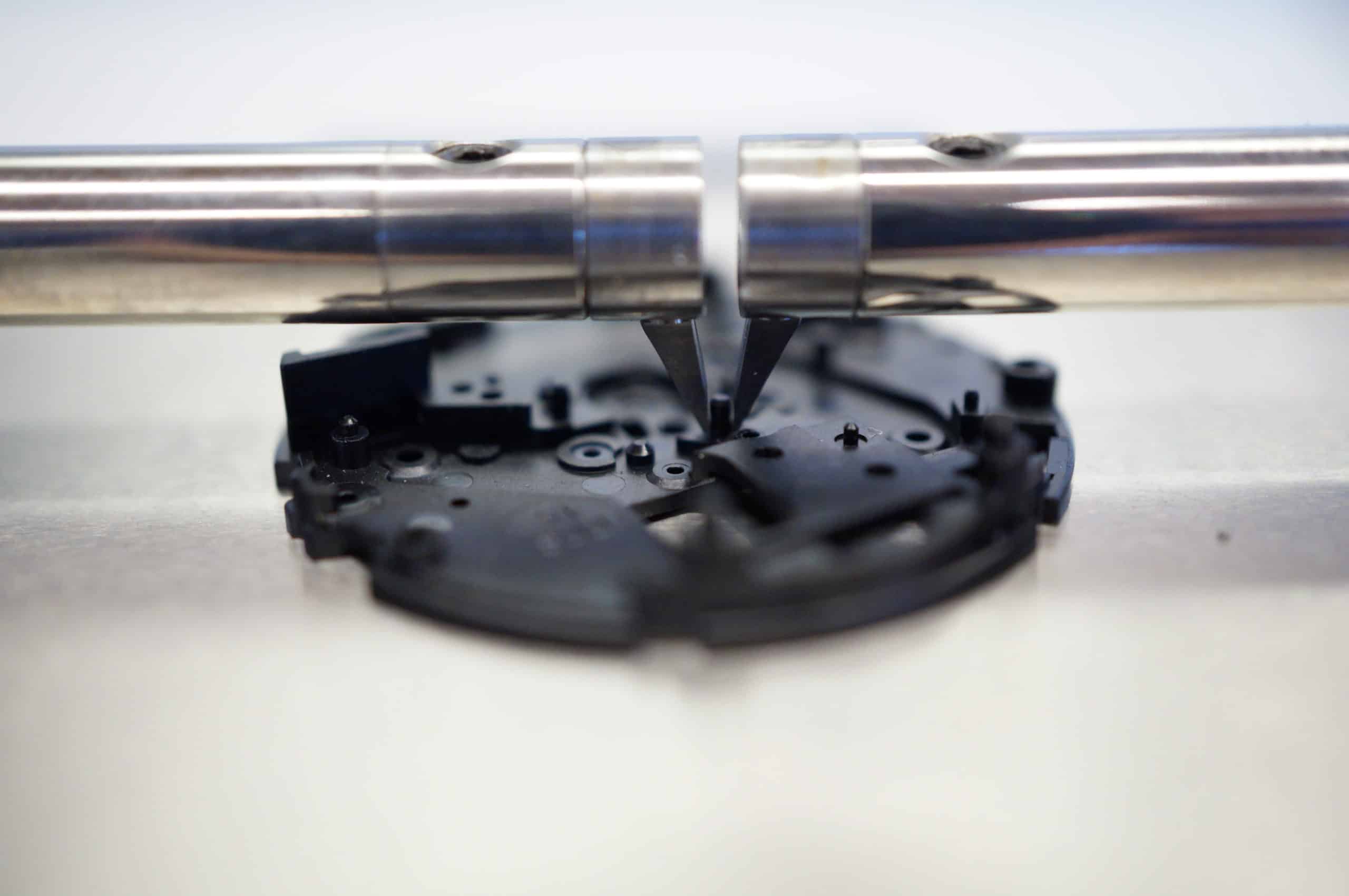

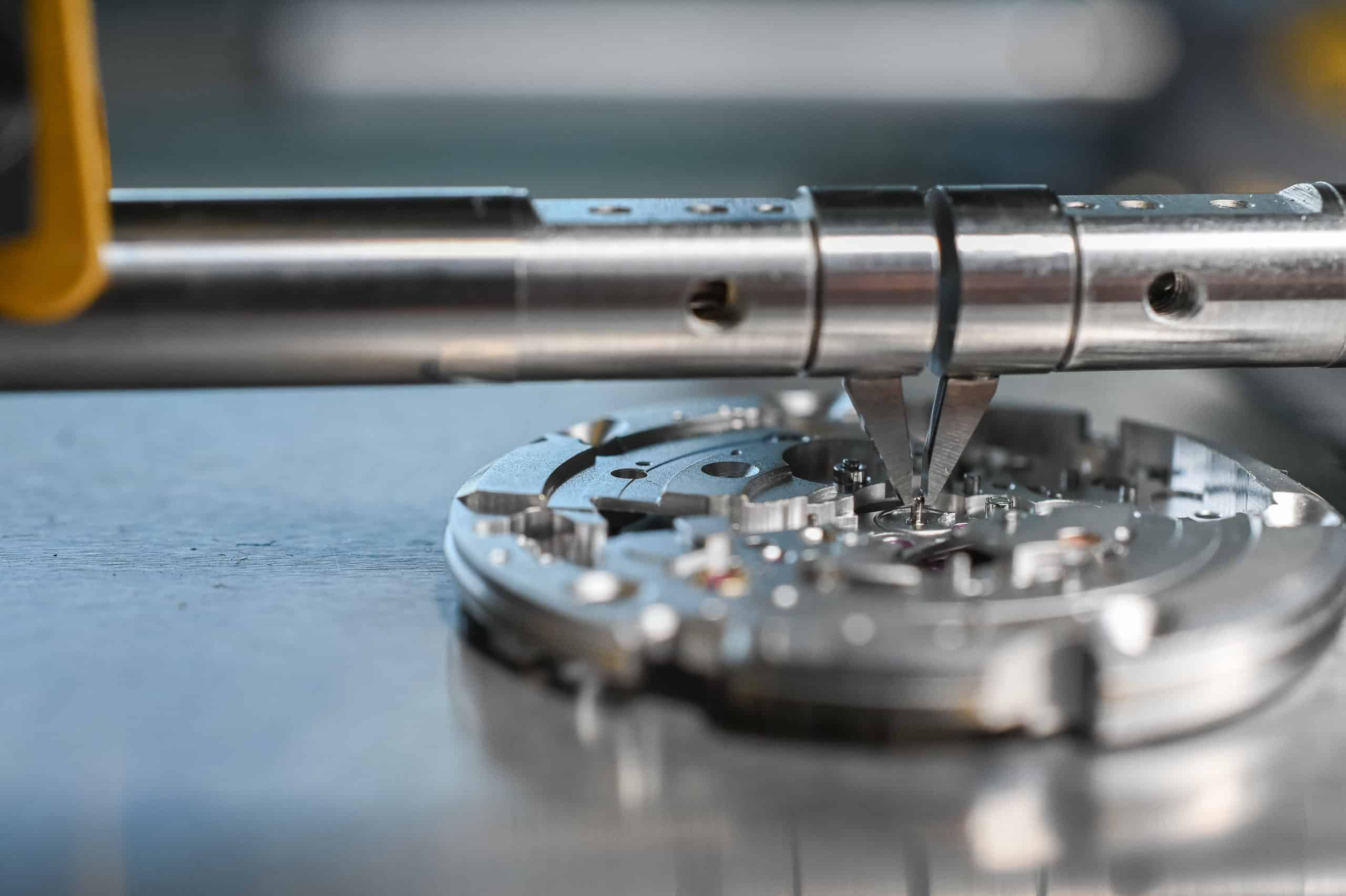

    All-in-one horizontal measuring bench with integrated display and measuring system designed for small pivot.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

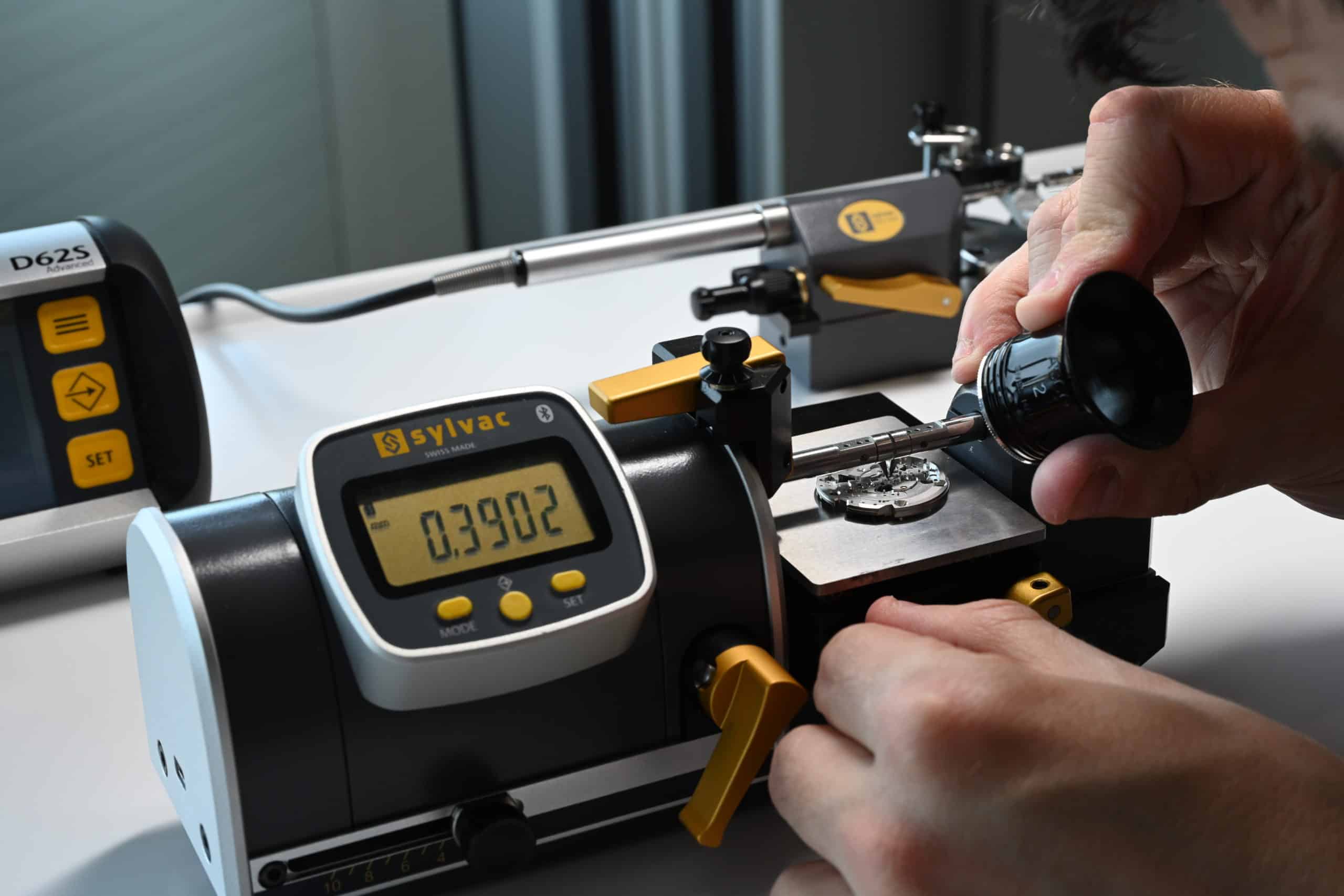

    • All-in-one Integration: Our cutting-edge measuring bench combines integrated measuring system, display, and Bluetooth® technology. Effortlessly measure small pivots (Gouttes) and components requiring significant clearance on a table.
    • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity to USB data output.
    • Clever Design: Featuring a quick-release lever, key removal system, and fine height adjustment table with a mini digital indicator, ensure precise movement control. Adjustable measuring force eliminates operator biases.
    • Built to Last: Our PS16 bench series thrives in demanding workshop environments. Equipped with a ball bearing guide and boasting IP67 protection, it guarantees reliability in any conditions.
    • Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench table to deliver accurate measurements every time.

    Applications

    icon-diameter
    Diameter
    icon-form-deviation
    Form deviation
    logicielsDistance
    Distance

    Industries

    Electronics
    icon-watch-making-sylvac
    Watch making

    Overview

    External measurement 808-5213 808-5413
    EAN 7640125713695 7640125713701
    Max. Capacity C (mm) 25 50
    Quick clearance (mm) 7
    Measuring range E (mm) 3
    Resolution (µm) 0.1
    Max. Error (µm) 2.5 3.5
    Repeatability (µm) 0.5
    Table dimensions (lxL) (mm) 58×70 92×70
    Measuring force (Adjustable) (N) 0.1 – 0.6 ¹
    Weight (kg) 4.0 4.7
    Output data Bluetooth® wireless technology / RS232 / USB

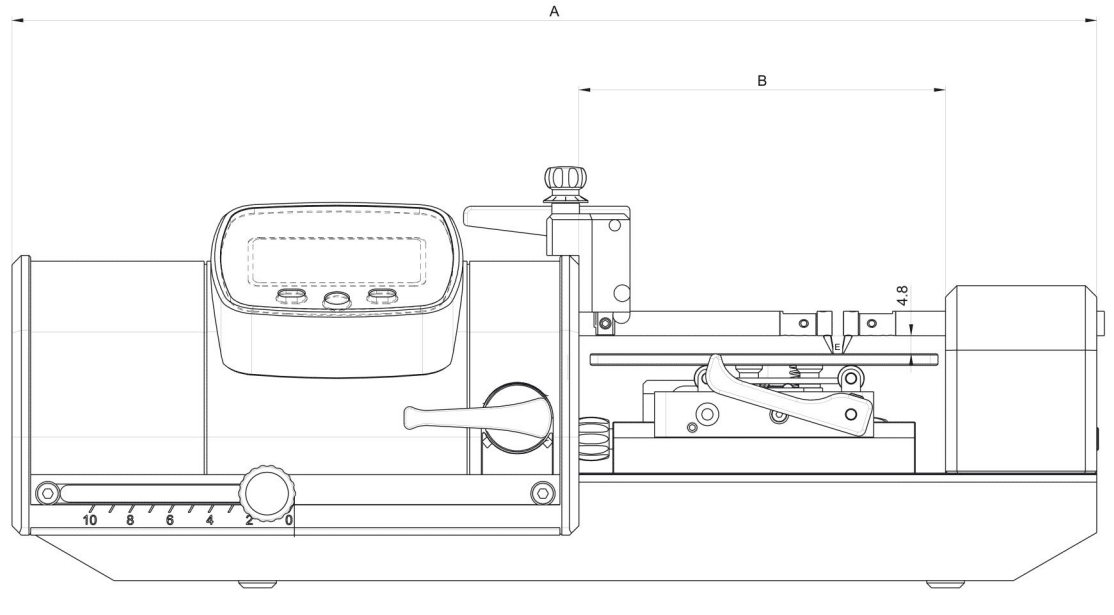

    A (mm) 232 287
    B (mm) 66 97

    ¹ ± 20%

    External measurement 808-5213 808-5413
    EAN 7640125713695 7640125713701
    Max. Capacity C (mm) 25 50
    Quick clearance (mm) 7
    Measuring range E (mm) 3
    Resolution (µm) 0.1
    Max. Error (µm) 2.5 3.5
    Repeatability (µm) 0.5
    Table dimensions (lxL) (mm) 58×70 92×70
    Measuring force (Adjustable) (N) 0.1 – 0.6 ¹
    Weight (kg) 4.0 4.7
    Output data Bluetooth® wireless technology / RS232 / USB
    A (mm) 232 287
    B (mm) 66 97

    ¹ ± 20%

    Instrument according to technical specifications
    Lithium battery CR2477 included
    Adapter for Lithium battery CR2032
    Instruction manual
    Calibration certificate
    Table and anvils according to specification
    Dust cover
    Accessories
      908-2198 Replacement lapping stone for 908-2199
    908-2199 Lapping device (3 stones and lapping liquid included)
    926-6723 Proximity RS232
    926-6721 Proximity USB
    926-6001 Mini USB-USB
    985-2216 Battery CR2477
    926-7022 S_Footswitch Smart



    • Cleaning your bench table

      How To Take Care of your Sylvac instrument : Cleaning and lubricate your bench table, only with benzine
