    Bench table PS15 BV/BV+

    *Available in different measuring ranges

    Description

    Robust vertical measuring bench for parts up to 10mm.
    MicrosoftTeams-image (5)
    Swiss made

    Features

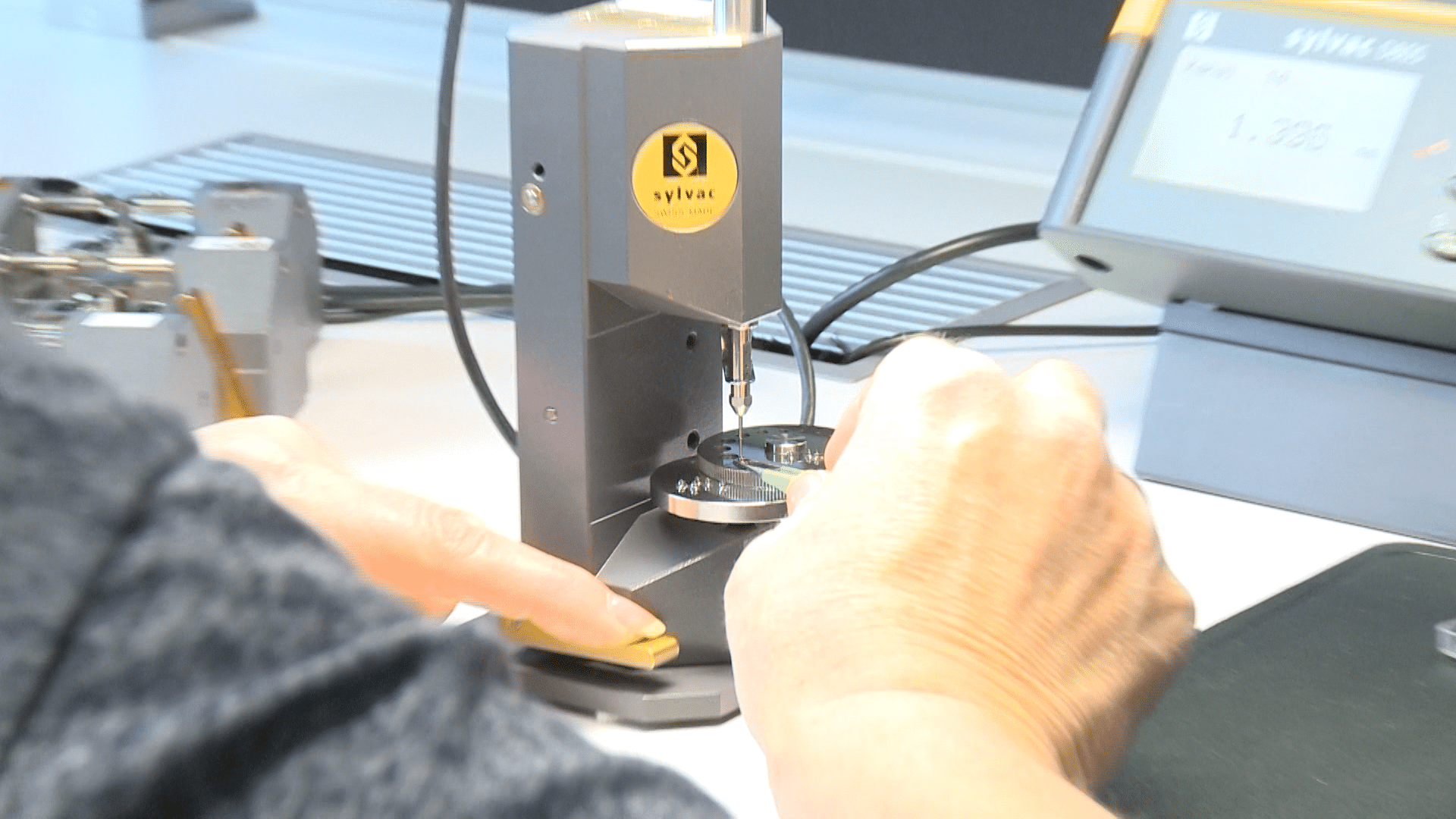

    • Vertical Measuring Powerhouse: The small and versatile vertical measuring bench checks small parts up to 10mm with linear ball bearing spindle guidance. Perfect for measuring shoulder heights.
    • Precise and Customizable: Choose to display the measured value with a digital dial gauge or Sylvac measuring probe for up to 0.0001mm resolution and equip the bench with extensive selection of accessories for versatile uses. Tailored solutions available upon request.
    • Unmatched Accuracy: Reach an overall accuracy of 0.6 μm and a repeatability of 0.2 μm with the pair display unit/measuring probe option.
    • Robust Design: With cast iron contruction, our bench is made to withstand tough environments. The bench comes with hard metal measuring anvils of Ø 1.5mm.
    • Seamless Integration: The bench is perfect for integration into machines and measuring fixtures and comes with an adjustable measuring force of 0.3-1.0 N, eliminating operator biases.
    • Superior Performance: Our measuring bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle. With a proven track record in demanding watchmaking applications, you can trust our bench to deliver accurate measurements every time.

    Applications

    icon-diameter
    Diameter
    logicielsDistance
    Distance
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device
    icon-watch-making-sylvac
    Watch making

    Overview

    808-1216 808-1218
    EAN 7640125026665 7640125026672
    Type PS15BV PS15BV +
    Measuring scale (mm) 10
    Adjustable measuring force (N) 0.3 – 1.0
    Max. error (µm) Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 – 3µm
    Weight (kg) 1.8
    Measuring direction Vertical
    Anvils fixation M2.5 Ø 1.5 mm
    Cary Compatibility

    808-1216 808-1218
    EAN 7640125026665 7640125026672
    Type PS15BV PS15BV +
    Measuring scale (mm) 10
    Adjustable measuring force (N) 0.3 – 1.0
    Max. error (µm) Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 – 3µm
    Weight (kg) 1.8
    Measuring direction Vertical
    Anvils fixation M2.5 Ø 1.5 mm
    Cary Compatibility
    Instrument according to technical specifications
    Instruction manual
    Measuring anvils Ø 1.5 mm or Ø 5 mm (depending on model)
    Allen anvils 2 and 2.5 mm
    Dust cover
    Accessories Designation

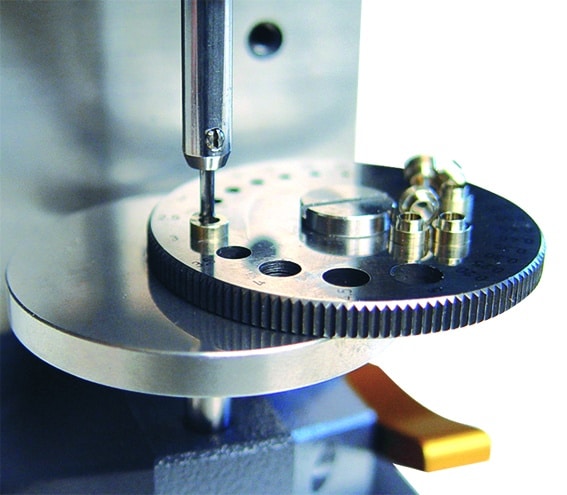

    908-2172 Rotating table with 25 bores
    908-2165 Plain table only
    908-2162 Cylindrical plate with 25 bores from 0.2 to 5 mm



    Anvils Ø1.5 for PS15 BV+ only Designation B F C
    908-2175 Cylindrical anvils TC Ø 1.5 mm 8 Ø 1.5
    908-2176 Cylindrical anvils TC Ø 2 mm 8 Ø 2
    908-2174 Knife-shaped anvils TC 0.7 mm 0.70 2.2 4
    908-2178 Knife-shaped anvils TC 0.4 mm 0.40 2.2 4
    908-2179 Knife-shaped anvils TC 0.3 mm 0.30 2.2 4
    908-2180 Knife-shaped anvils standard TC 0.2 mm 0.20 2.2 4
    908-2181 Knife-shaped anvils standard TC 0.14 mm 0.14 2.2 4
    908-2182 Knife-shaped anvils standard TC 0.1 mm 0.10 2.2 4
    908-2201 Knife-shaped anvils TC 0.7 mm/V 0.70 2.2 4
    908-2202 Knife-shaped anvils standard TC 1.5 mm 1.5 2.2 4
    Bench table PS15 BV/BV+
    CHF 2'438.00
    Scroll to Top

    Request a demo

    Bench table PS15 BV/BV+

    Contact us

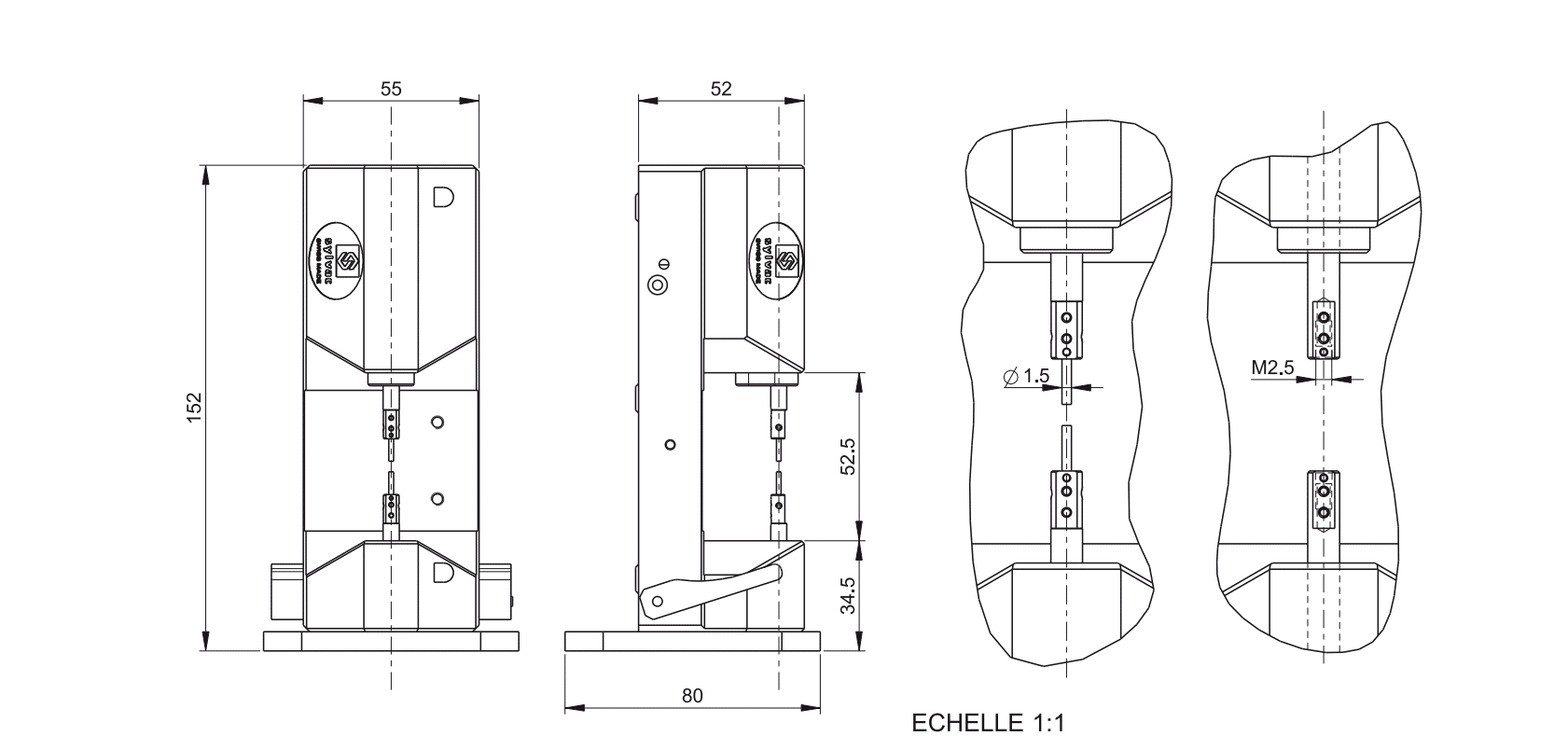

    Download Technical Plan :Bench table PS15 BV/BV+

    Download 3D Drawing :Bench table PS15 BV/BV+
