    Bench table PS15 BH

    Starting at :
    CHF 2'387.00

    *Available in different measuring ranges

    Description

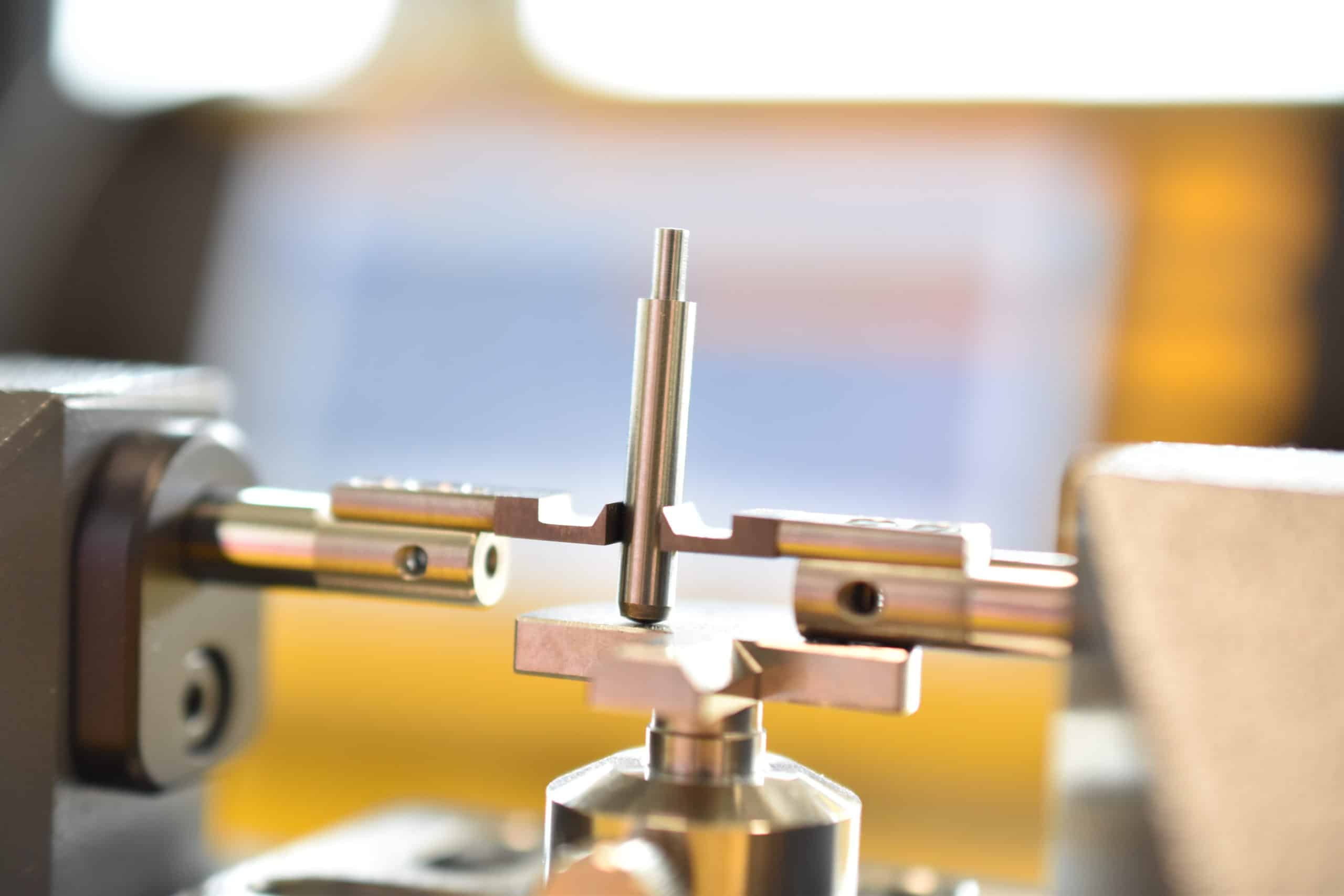

    Compact horizontal bench for parts up to 10mm.
    MicrosoftTeams-image (5)
    Swiss made

    Features

    • Powerful and Compact: With a measuring capacity of 20mm and a measuring range of 10mm. our small horizontal measuring bench packs a punch. Perfect for checking external dimensions on small parts in delicate manufacturing.

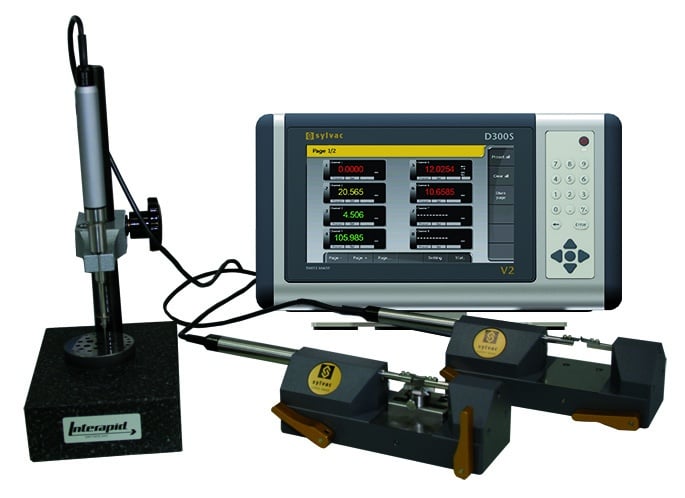

    • Pinpoint Precision: Featuring a measuring spindle guided by linear ball bearings, our bench can be equipped with a digital dial gauge or a measuring probe for up to 0.1μm resolution. With Sylvac display unit and measuring probe pairing, you can reach an overall accuracy of 0.6μm and a repeatability of 0.2μm.
    • Robust and user-friendly Design: Built with cast iron, our bench withstands challenging environments. Two ergonomic levers enable effortless axis movement, while the adjustable 0.3-1.0N measuring force eliminates operator biases. It includes durable Ø 1.5mm hard metal measuring anvils for reliable performance.
    • Versatile and Customizable: Our bench can be equipped with an extensive selection of measuring anvils and support tables, tailored solutions are also available upon request. It is compatible with Sylvac Ø 1.5mm and Cary type spindles.
    • Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench to deliver accurate measurements every time.

    Applications

    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device
    icon-watch-making-sylvac
    Watch making

    Overview

    808-1215
    EAN 7640125025699
    Type PS15BH
    Max. Capacity C (mm) 20
    Measuring range (mm) 10
    Adjustable measuring force (N) 0.3 – 1.0
    Max. error (µm) Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 – 3µm
    Weight (kg) 1.8
    Measuring direction Horizontal
    Anvils fixation Ø 1.5 mm
    Cary Compatibility
    808-1215
    EAN 7640125025699
    Type PS15BH
    Max. Capacity C (mm) 20
    Measuring range (mm) 10
    Adjustable measuring force (N) 0.3 – 1.0
    Max. error (µm) Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 – 3µm
    Weight (kg) 1.8
    Measuring direction Horizontal
    Anvils fixation Ø 1.5 mm
    Cary Compatibility
    Instrument according to technical specifications
    Instruction manual
    Measuring anvils Ø 1.5 mm (908-2175)
    Allen anvils 2 and 2.5 mm
    Dust cover
    Accessories Designation

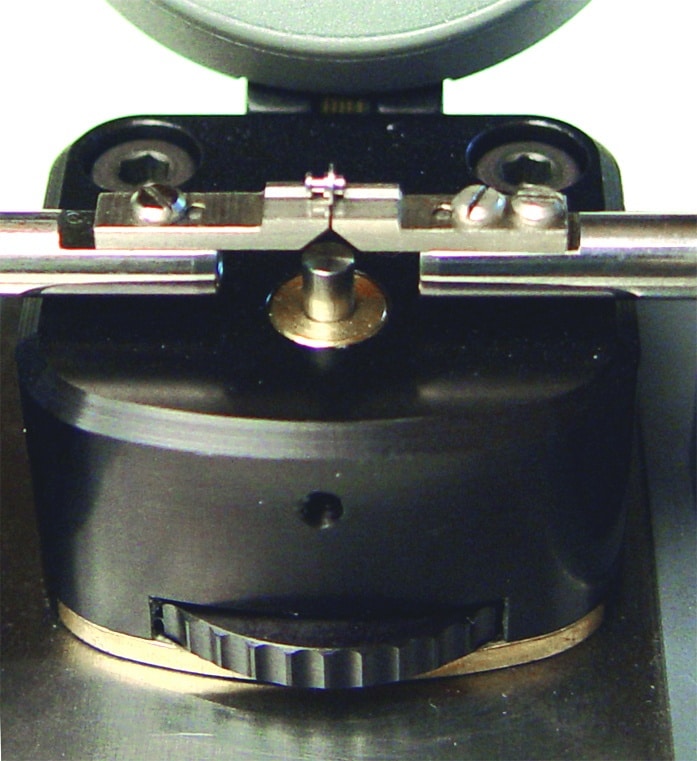

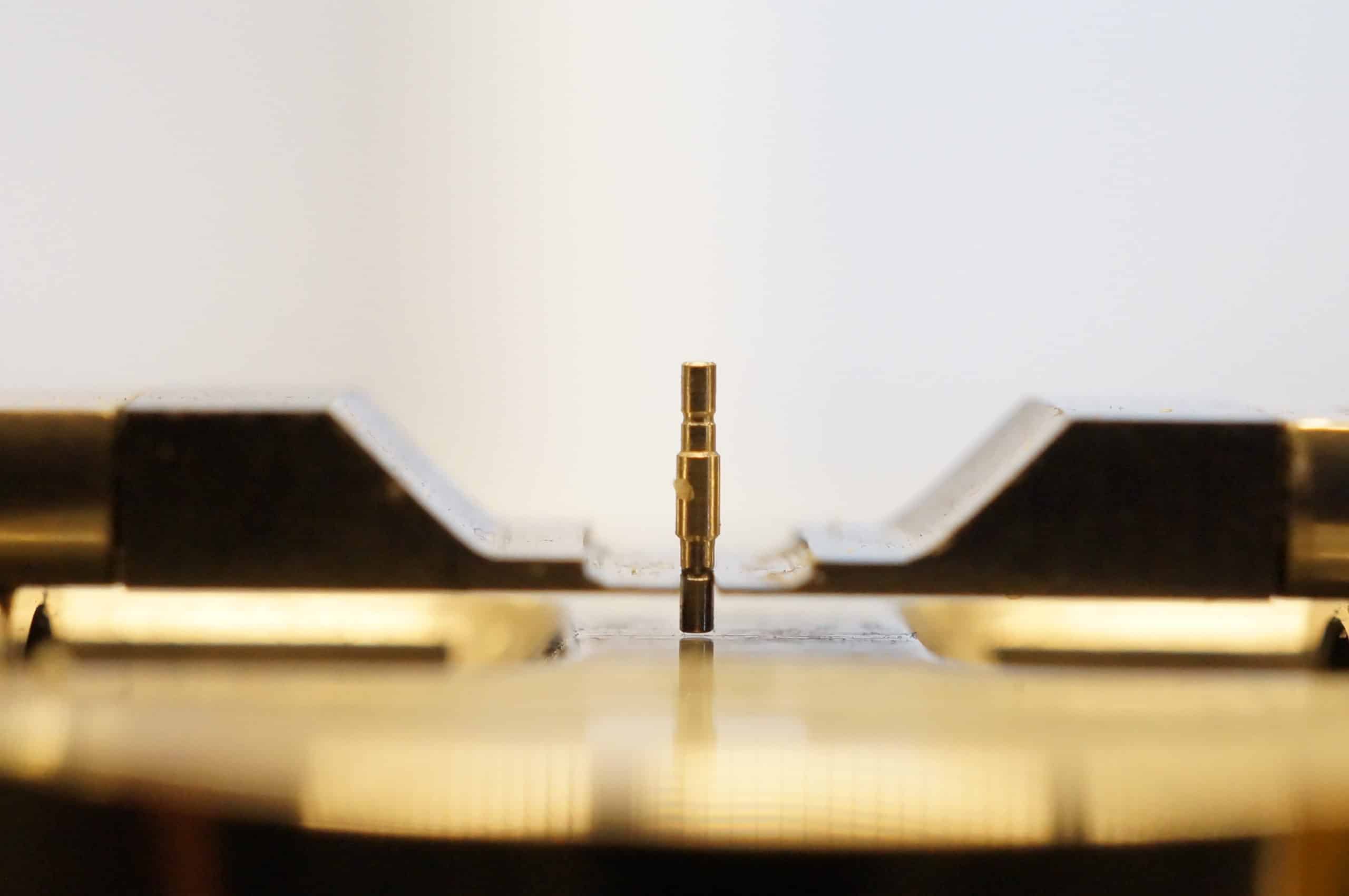

    908-2170 Supporting table adjustable in XYZ
    908-2160 Supporting table with fine adjustement XYZ
    908-2161 Supporting table with fine adjustement Z
    908-2166 Floating table
    908-2198 Replacement lapping stone for 908-2199
    908-2199 Lapping device (3 stones and lapping liquid included)



    Anvils Ø1.5 Designation B F C
    908-2175 Cylindrical anvils TC Ø 1.5 mm 8 Ø 1.5
    908-2176 Cylindrical anvils TC Ø 2 mm 8 Ø 2
    908-2174 Knife-shaped anvils TC 0.7 mm 0.70 2.2 4
    908-2178 Knife-shaped anvils TC 0.4 mm 0.40 2.2 4
    908-2179 Knife-shaped anvils TC 0.3 mm 0.30 2.2 4
    908-2180 Knife-shaped anvils standard TC 0.2 mm 0.20 2.2 4
    908-2181 Knife-shaped anvils standard TC 0.14 mm 0.14 2.2 4
    908-2182 Knife-shaped anvils standard TC 0.1 mm 0.10 2.2 4
    908-2201 Knife-shaped anvils TC 0.7 mm/V 0.70 2.2 4
    908-2202 Knife-shaped anvils standard TC 1.5 mm 1.5 2.2 4



    Anvils Cary Designation B F C
    908-2214 Knife-shaped anvils TC 0.10 mm 0.10 2.2 4
    908-2221 Knife-shaped anvils TC 0.12 mm 0.12 2.2 4
    908-2215 Knife-shaped anvils TC 0.14 mm 0.14 2.2 4
    908-2213 Knife-shaped anvils TC 0.15 mm 0.15 2.2 4
    908-2216 Knife-shaped anvils TC 0.20 mm 0.20 2.2 4
    908-2217 Knife-shaped anvils TC 0.30 mm 0.30 2.2 4
    908-2218 Knife-shaped anvils TC 0.40 mm 0.40 2.2 4
    908-2219 Knife-shaped anvils TC 0.70 mm 0.70 2.2 4
    908-2220 Knife-shaped anvils TC 0.70 mm/vé 0.70 2.2 4
    908-2223 Knife-shaped anvils TC 1.5 mm 6 Ø1.5
    908-2224 Cylindrical anvils TC Ø 1.5 mm 6 Ø2
    908-2225 Cylindrical anvils TC Ø 2.0 mm 6 Ø3
    908-2222 Beveled anvils TC 1.5×0.05 mm 1.50 2.2 4



    Bench table PS15 BH
    CHF 2'387.00
    Scroll to Top

    Request a demo

    Bench table PS15 BH

    Contact us

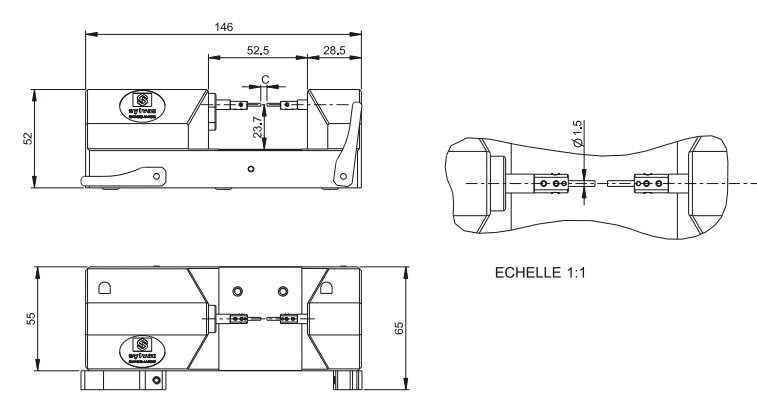

    Download Technical Plan :Bench table PS15 BH
