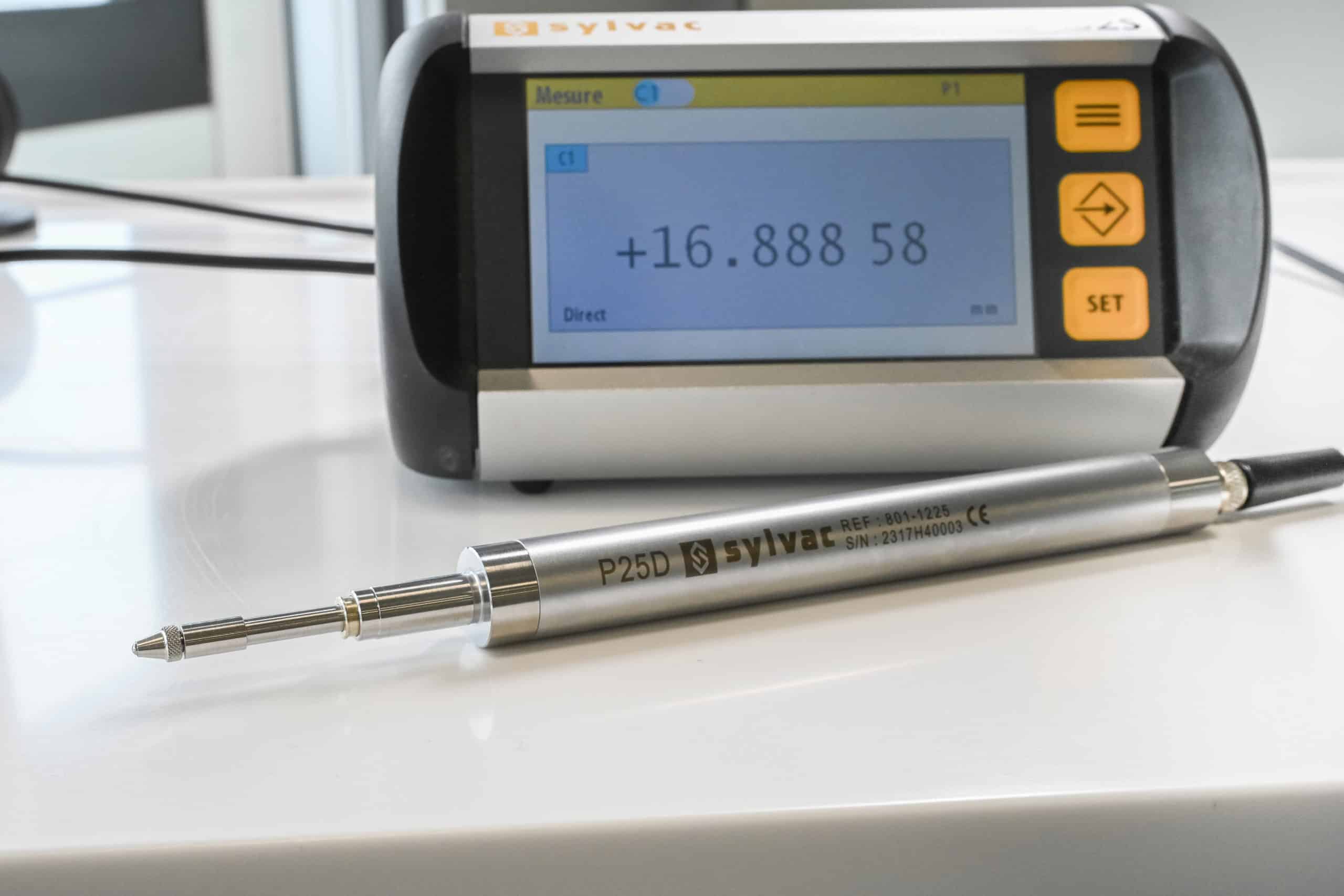

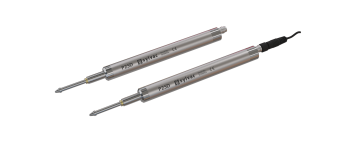

Absolute digital measuring probes P25D

*Available in different measuring ranges

Description

Double inductive probe with direct digital output.
0.01um
Resolution: 0.01µm
MicrosoftTeams-image (5)
Swiss made
Cable
Cable

Features

  • Precision at Your Fingertips: This probe provides high-precision measuring with a range of 25mm and a resolution of 0.01µm. Its patented dual inductive system ensures accuracy and repeatability
  • Built to Last: With an extremely robust ball bearing guide and a stainless steel body, the probe is designed to withstand heavy-duty workshop use. Its protection class IP54 ensures durability and longevity.
  • Lightning-Fast Readings:up to 100 values per second (depending on configuration) ensure fast and efficient measurement.

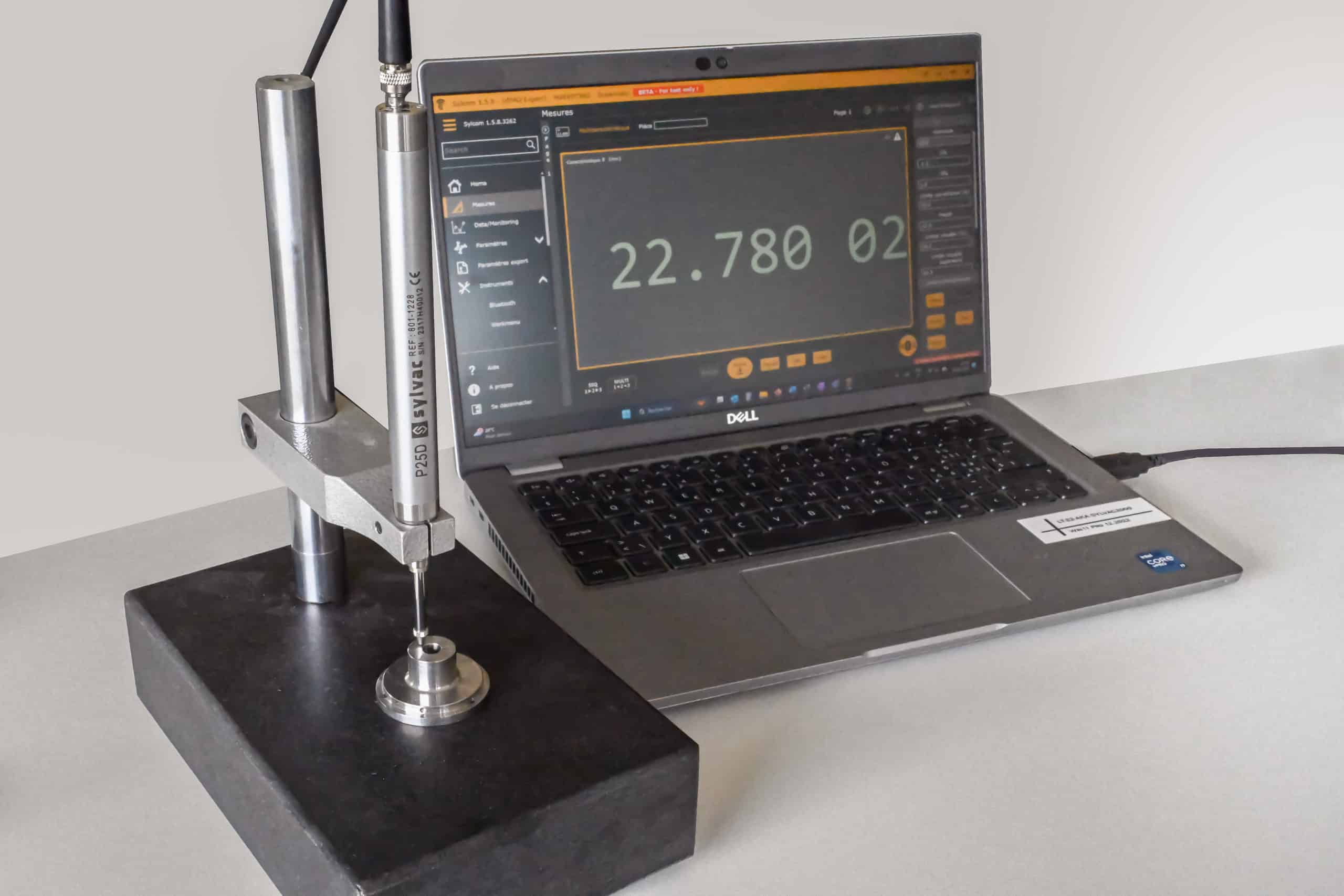

  • Direct Digital Output: The probe can be connected directly to a computer via USB or an M8 industrial connector, allowing for seamless integration with data acquisition software such as Sylcom without the need for additional modules or display units.
  • Accuracy You Can Count On: The P25D has a maximum error of 1.2µm and a repeatability of 0.1µm, ensuring precise and reliable results every time.
  • Convenient and Customizable: Comes with a straight cable length of 2m and offers both USB and M8 connectors.

Applications

icon-form-deviation
Form deviation
logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

801-1225 801-1228 801-1229 801-1235 801-1238

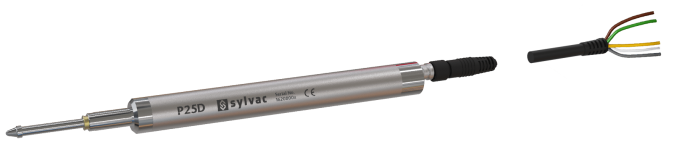

Type P25D M8 P25D USB P25D OPEN P25D M8 CF ² P25D USB CF ²
EAN 7640125696646 7640125696653 7640125696684 7640125696691 7640125696707
Force ¹ (N) 0.7 – 1.3 0.15
Measuring range (mm) 25.4
Resolution (µm) 0.01
Max. Error (µm) 1.2
Repeatability (µm) 0.1
Nb measures/s up to 100/s, according to configuration ³
Output data M8  USB OPEN M8 USB
Protection IP54

¹ + 20%, vertical position
² CF = constant force : usable only vertically, rod pointing downwards (without spring)
³ depends on resolution and number of probes per bus



801-1225 801-1228 801-1229 801-1235 801-1238
Type P25D M8 P25D USB P25D OPEN P25D M8 CF ² P25D USB CF ²
EAN 7640125696646 7640125696653 7640125696684 7640125696691 7640125696707
Force ¹ (N) 0.7 – 1.3 0.15
Measuring range (mm) 25.4
Resolution (µm) 0.01
Max. Error (µm) 1.2
Repeatability (µm) 0.1
Nb measures/s up to 100/s, according to configuration ³
Output data M8  USB OPEN M8 USB
Protection IP54

¹ + 20%, vertical position
² CF = constant force : usable only vertically, rod pointing downwards (without spring)
³ depends on resolution and number of probes per bus



Probe according to technical specifications
Cable 2 m
Stainless steel contact point with tungsten carbide ball Ø 2 mm
Quickstart
Calibration certificate
Accessories
905-2204 Stainless steel contact point M2.5
901-2005 Lifting device with photo cable
905-2224 Plastic lifting lever
905-2225 Plastic lifting ring
  • Available soon

Absolute digital measuring probes P25D
CHF 1'450.00
Scroll to Top

Request a demo

Absolute digital measuring probes P25D

Contact us

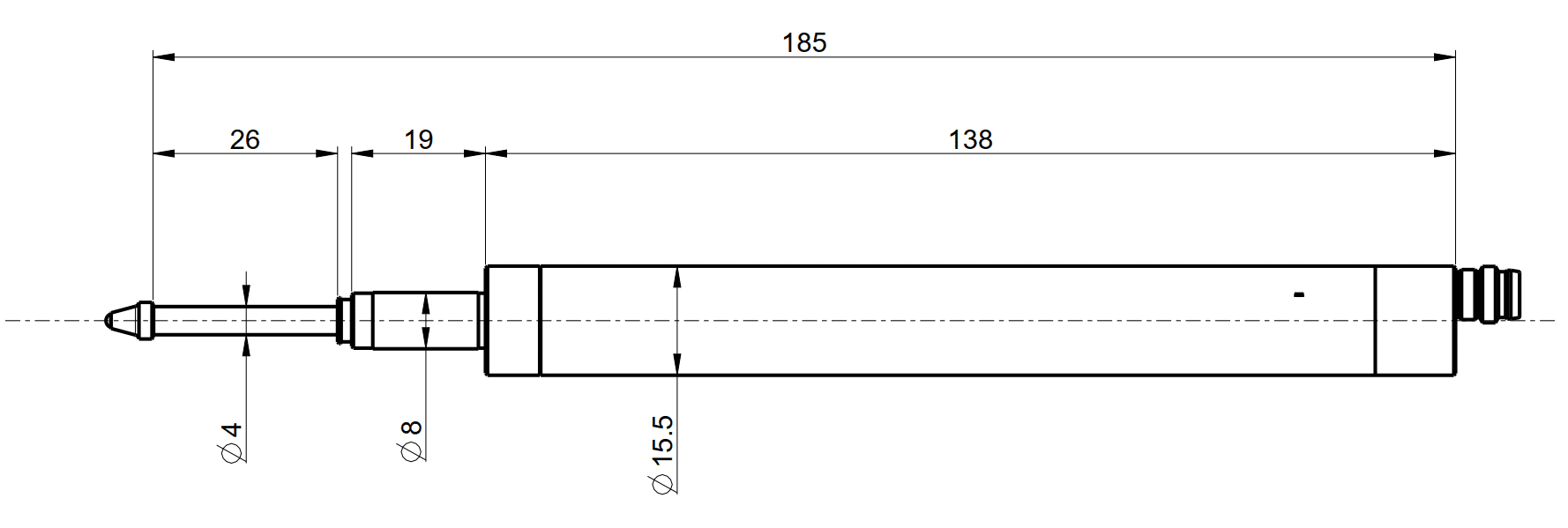

Download Technical Plan :Absolute digital measuring probes P25D
