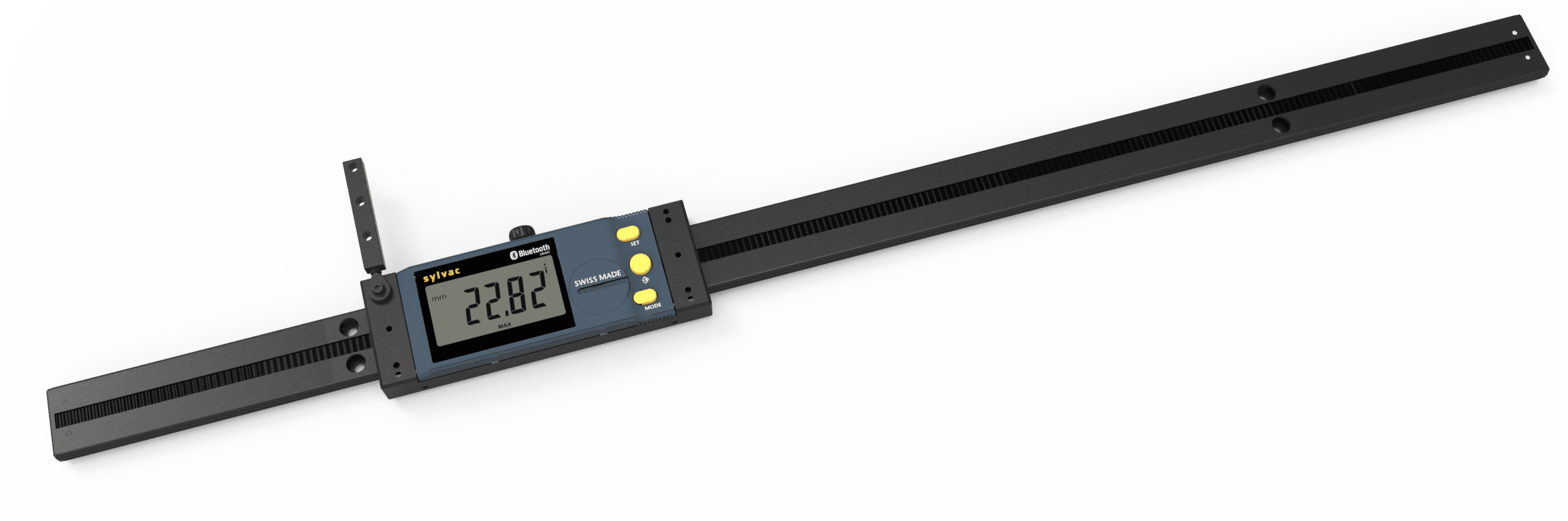

Ultra light digital scale UL D4
Description
Ultra light large digital linear ruler with integrated Bluetooth® system.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Solution for linear measurement : Designed to equip machine tables and special linear measurement systems, The ruler is fixed on a table, and the unit displays the exact linear distance traveled between point A and point B.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
- Built to last : Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 rulers are built to withstand the demands of rigorous use while maintaining stability and accuracy.
- User-Friendly Design : The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light depth gauge becomes effortless.
- Tailored precision : the ruler comes with a versatile drive bar that can be positioned either at the top or bottom of the display, accommodating your specific needs. With an impressive measuring range of 1000mm or 3000mm, it caters to a wide range of applications. Need an extended measuring range? Simply connect multiple rulers together upon request.
Applications

Distance
Industries

Automotive

Aeronautics

Packaging

Machine tool

Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
814-1510 | 814-1515 | 814-1520 | 814-1525 | 814-1530 | |
EAN | 7640125719550 | 7640125719703 | 7640125719581 | 7640125719598 | 7640125719604 |
Model (mm) | 1000 | 1500 | 2000 | 2500 | 3000 |
Max. error (µm) | 60 | 90 | 120 | 150 | 200 |
Repeatability (µm) | 20 | ||||
Resolution (mm) | 0.01 | ||||
A (mm) | 0 – 1120 | 0 – 1620 | 0 – 2120 | 0 – 2620 | 0 – 3120 |
B (mm) | 1306 | 1806 | 2306 | 2806 | 3306 |
Number range of raws | 3 | 4 | 5 | 6 | 7 |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
||||
Protection rating according to IEC 60529 | IP67 | ||||
Preset max | ±9999.99 mm / ±399.9995 IN | ||||
Weight (kg) | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
Setting by PC | ⬤ | ||||
2 references | ⬤ | ||||
Min/Max function | ⬤ | ||||
Tolerance limit indicators | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery
|
Instrument according to technical specifications |
Lithium battery CR2477 included |
Driving shaft |
Instruction manual |
Not available
Available soon
-
Available soon
-
-
-
-

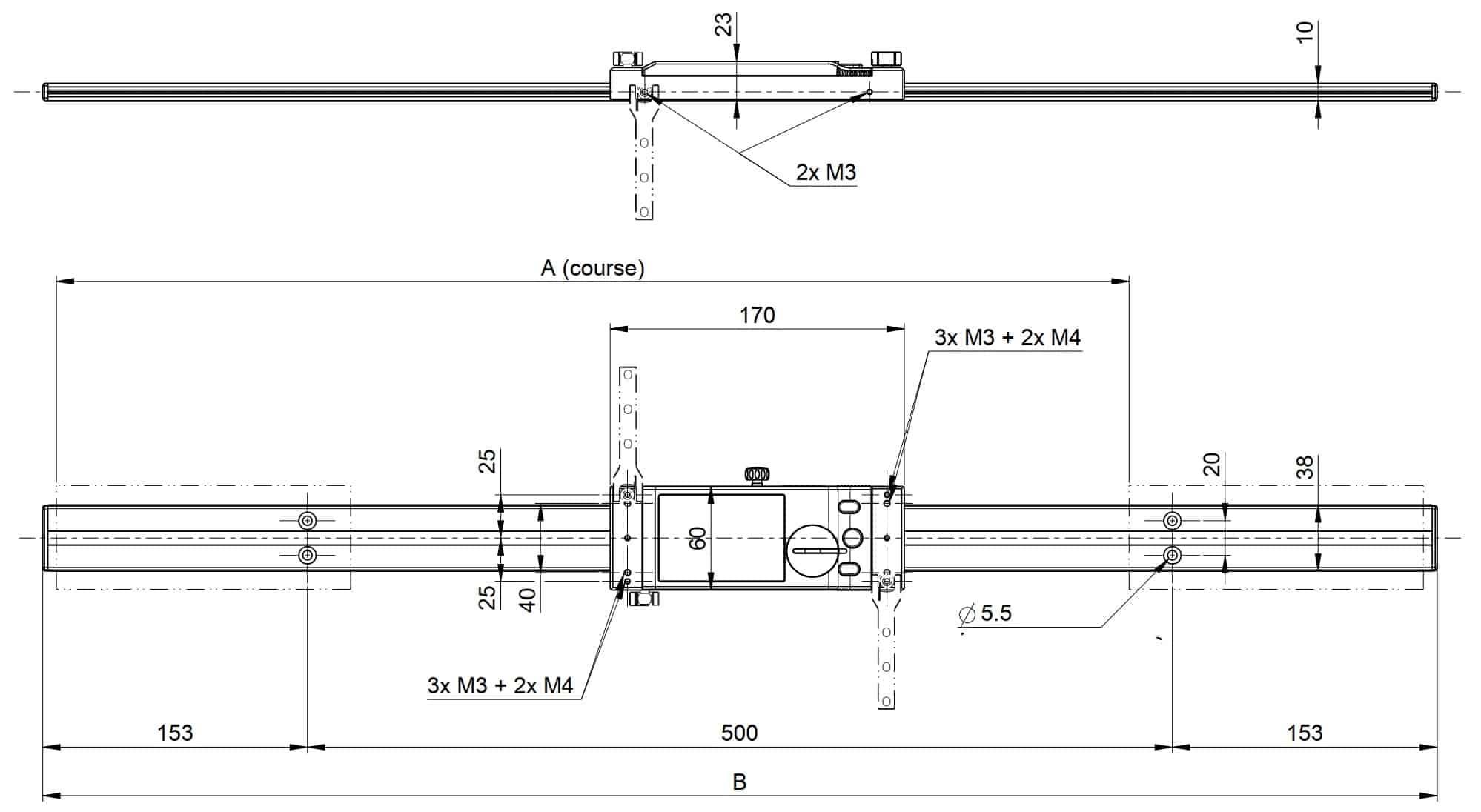

- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
- Available soon
- Not available
