Ultra light depth gauge UL V4
Description

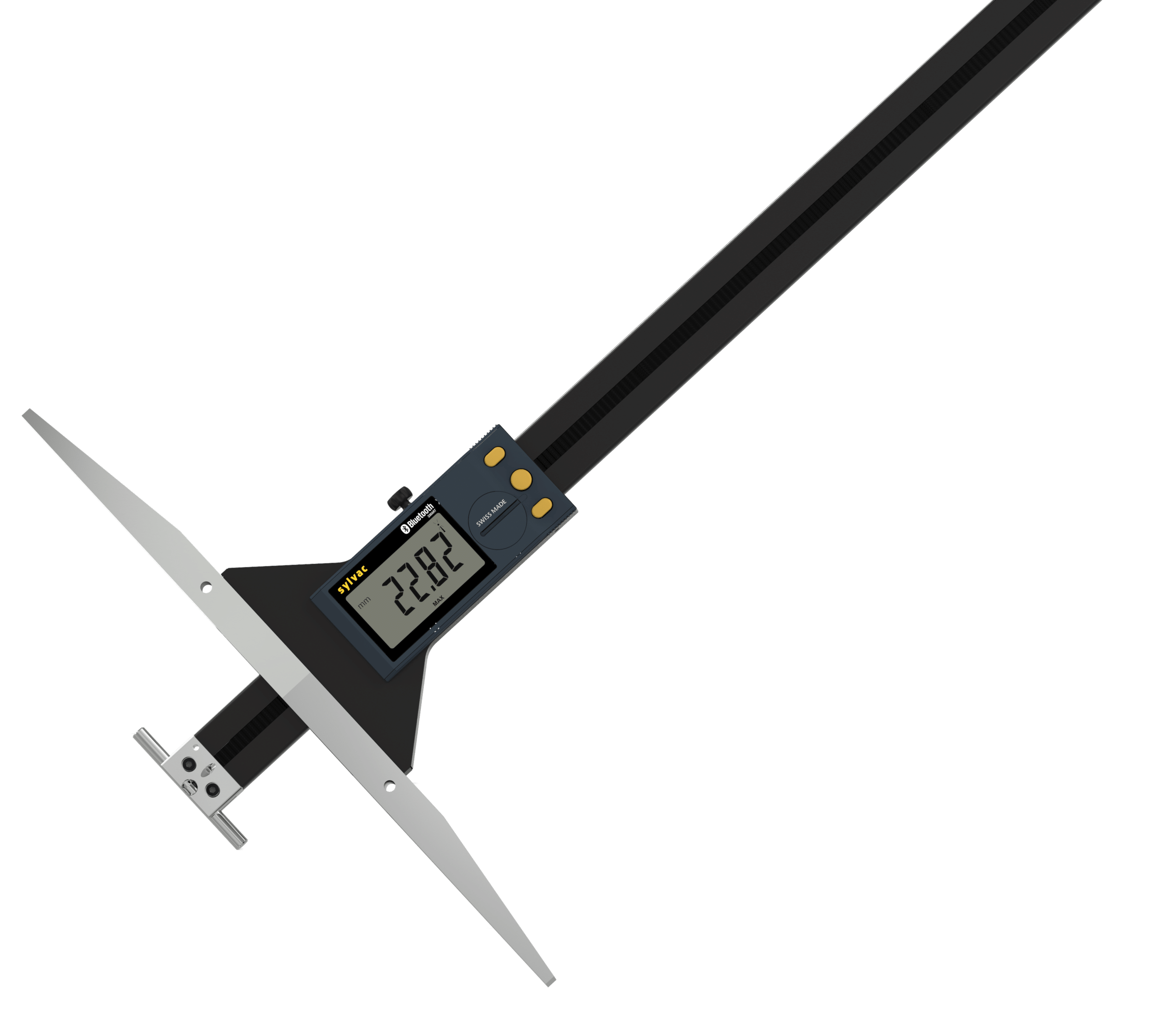

Ultra light large depth gauge with integrated Bluetooth® technology and interchangeable keys.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Unprecedented Size, Unmatched Portability: Our large callipers offer impressive measuring ranges from 1000 to 1500 mm, making them perfect for accurately measuring great depths. Despite their size, these gauges are remarkably lightweight, ensuring easy handling and transport.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
- Built to last : Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 calipers are built to withstand the demands of rigorous use while maintaining stability and accuracy.

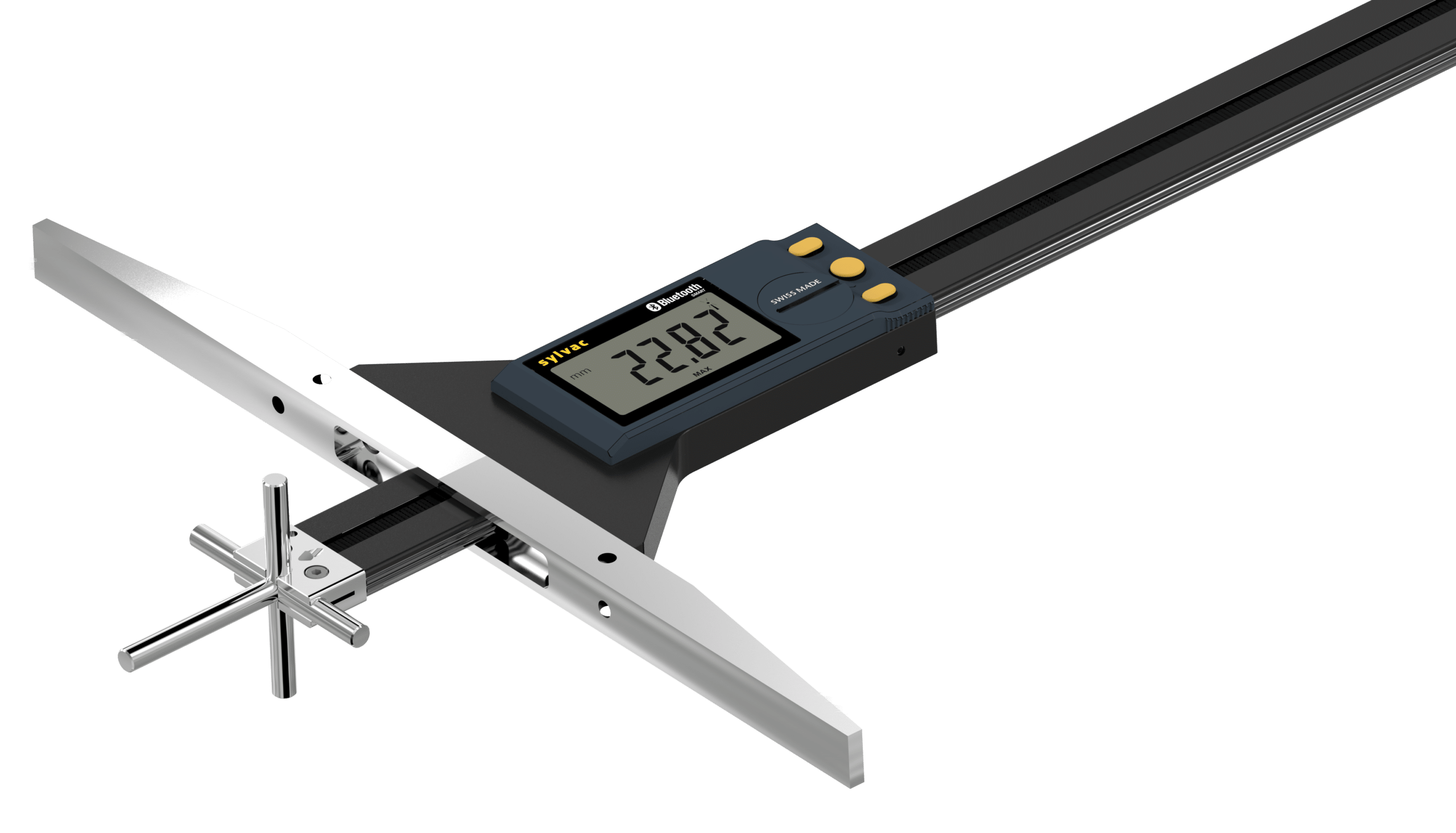

- User-Friendly Design : The XXL display unit, with digits 20mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light depth gauge becomes effortless. Large bridge with holes for the attachment of an additional wider bridge, offering flexibility for various applications.
- Enhanced Efficiency: Our caliper comes with interchangeable measuring keys equipped with hard metal pins Ø 8 x 80mm, providing versatility and adaptability.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
811-6100 | 811-6150 | |
EAN | 7640125713305 | 7640125713329 |
Model (mm) | 1000 | 1500 |
Max. error (µm) | 100 | 130 |
Repeatability (µm) | 20 | |
Resolution (mm) | 0.01 | |

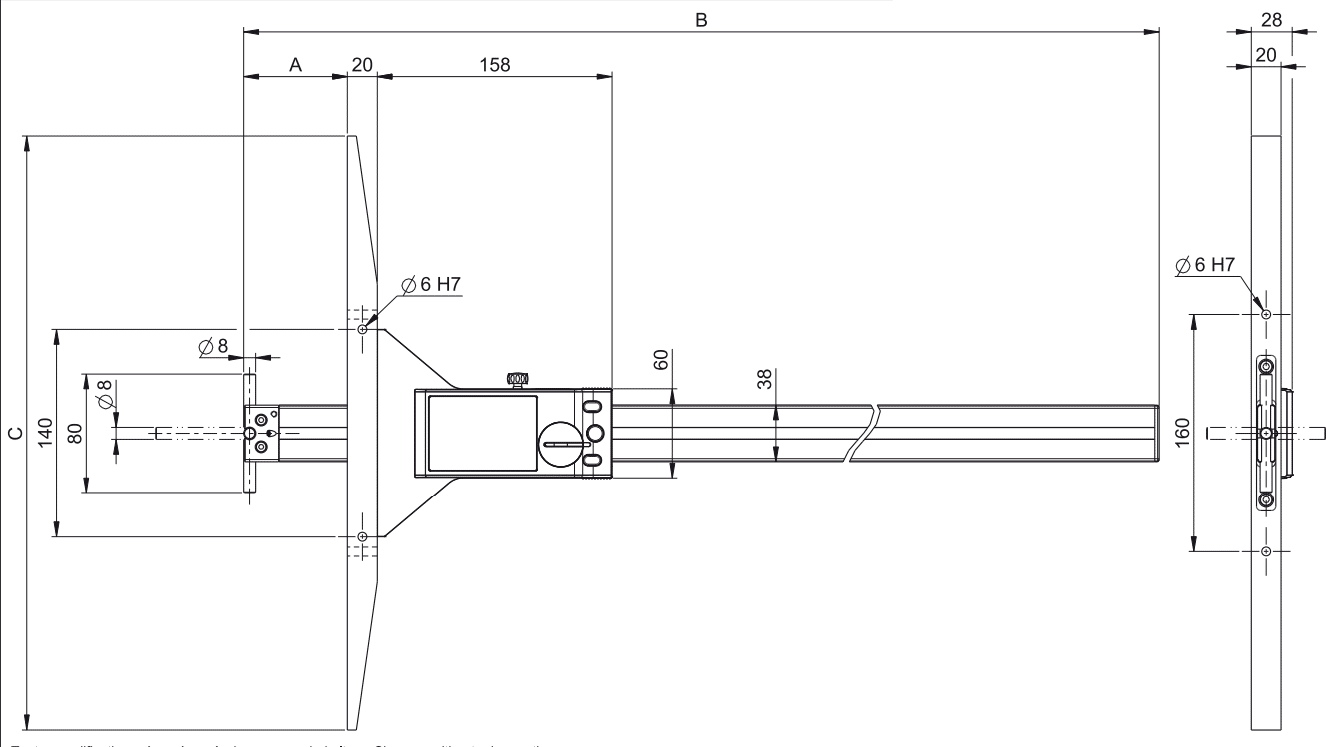

A (mm) | 0 – 1030 | 0 – 1545 |
C (mm) | 400 | 600 |
B (mm) | 1242 | 1757 |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
|
Protection rating according to IEC 60529 | IP67 | |
Preset max. | ±9999.99 mm / ±399.9995 IN | |
Weight (kg) | 2.2 | 3.16 |
Setting by PC | ⬤ | |
2 references | ⬤ | |
Min/Max function | ⬤ | |
Tolerance limit indicators | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2477 included |
Long cylindrical anvil Ø8x80mm (811-2324) |
Bridge 400mm or 600mm |
Instruction manual |
Not available
Available soon
-
Available soon
-
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
