Digital micrometer screws S_Screw Smart
Description

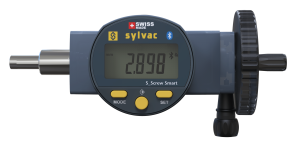

Digital micrometric screw (with integrated Bluetooth® technology).

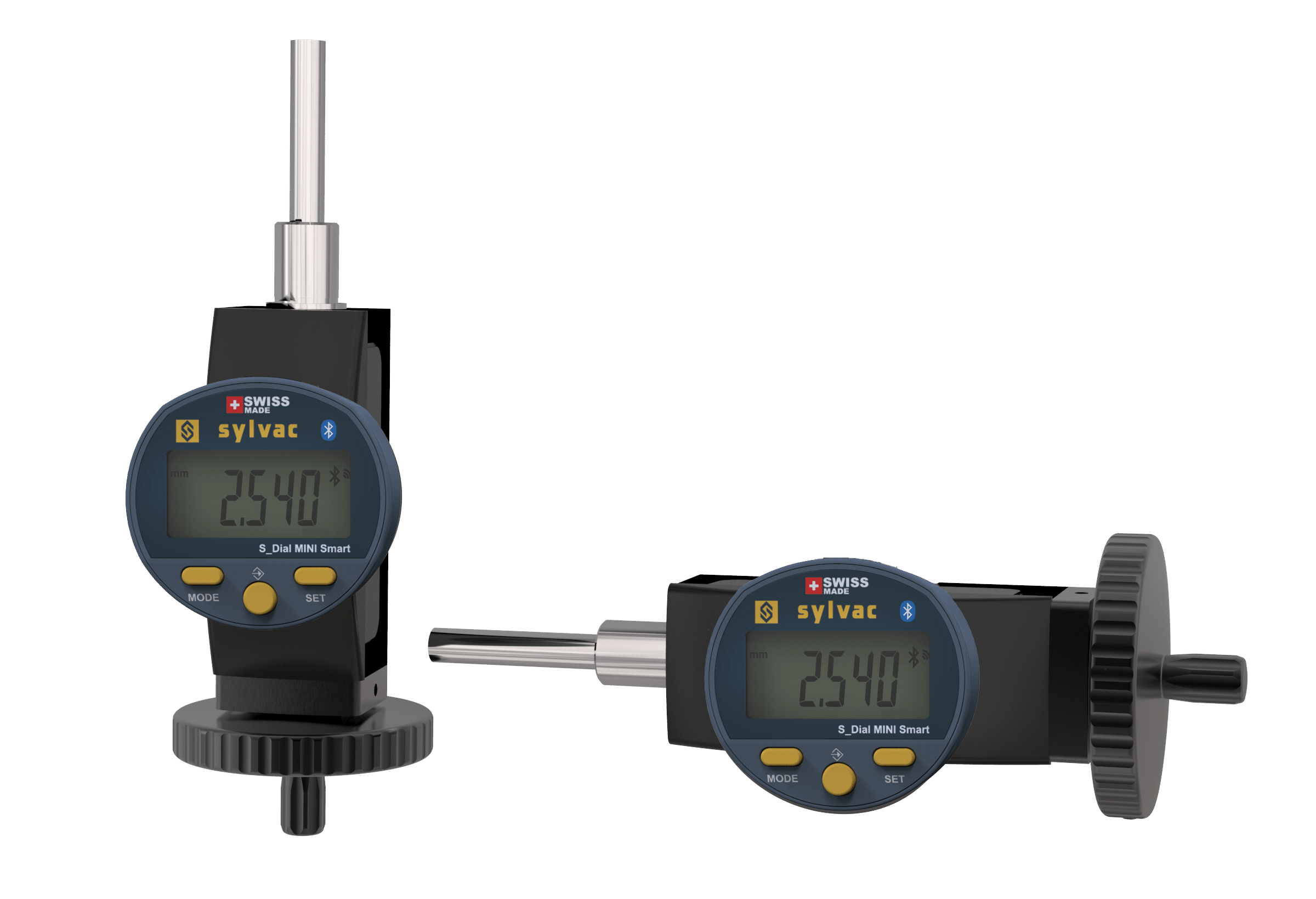

* Available in different measuring ranges
* Available in different measuring ranges
Features

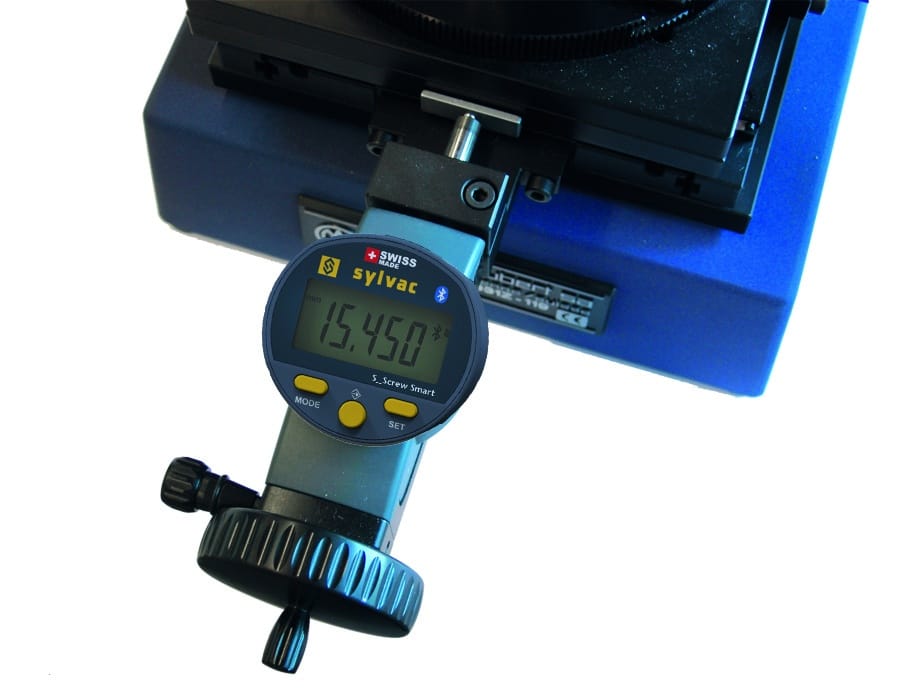

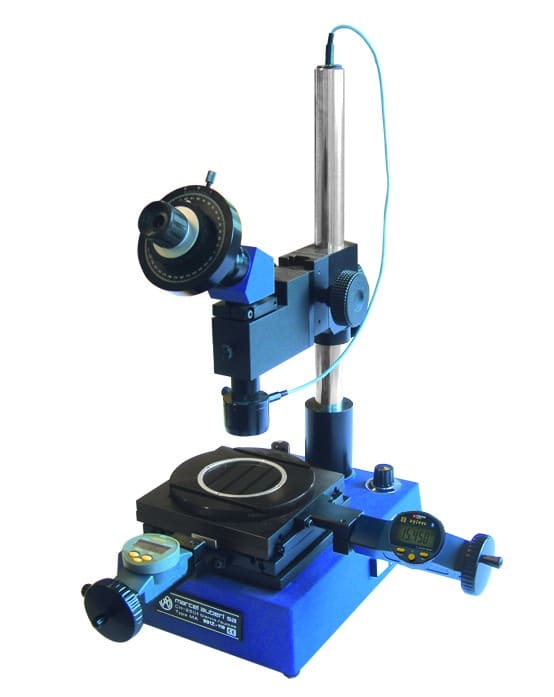

- Precision and Versatility : Designed for precise positioning and fine adjustment in X and Y axis of measuring tables and microscopes, these screws feature a measuring range of 25 and 50 mm and a display resolution of 0.001 mm.
- Compact Design, Optimal Performance: A space saver with a rotatable Ø 45 mm dial by 270° enabling both horizontal or vertical use.
- Advanced Connectivity: Benefit from seamless data output via RS232/Power and integrated Bluetooth®, ensuring efficient data transfer.
- Fast integration: with standardized clamping diameter Ø 12 h6
- Reliable and Durable: Built to withstand demanding environments, our screws provide IP54 protection, and feature a non-rotating spindle with a Ø 6.5 hard metal tip.
Applications

Distance
Industries

Automotive

Aeronautics

Packaging

Machine tool
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
852-2601 | 852-2611 | |
EAN | 7640125689549 | 7640125689808 |
Measuring range (mm) | 0-25 | 0-50 |
Max. error (µm) | 5 | 8 |
Repeatability (µm) | 2 | |
Resolution (mm) | 0.001 | |

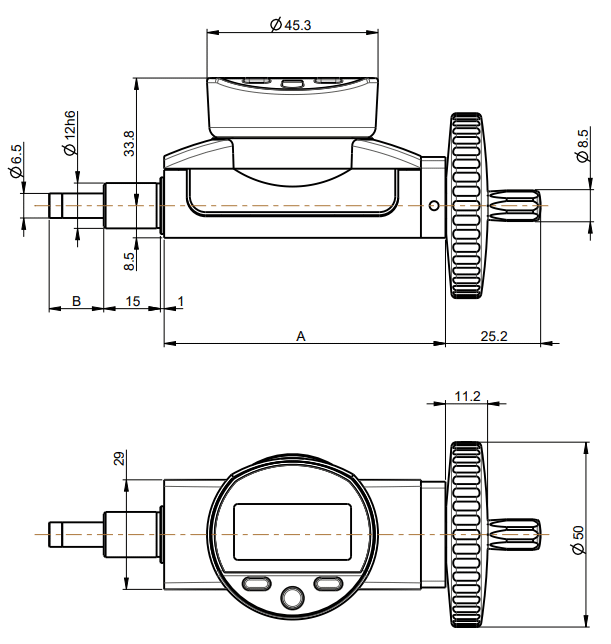

A (mm) | 74.5 | 98.5 |
B (mm) | 33.1 | 57.1 |
Protection rating according to IEC 60529 | IP54 | |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|
Selection of measuring direction | ⬤ | |
PRESET function | ⬤ | |
4 measurement references | ⬤ | |
Multiplication factor | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Quickstart |
Handwheel Ø 50 mm (852-2311) |
Calibration certificate |
Accessories | ||
![]() |
852-2310 | Fine adjustment device |
![]() |

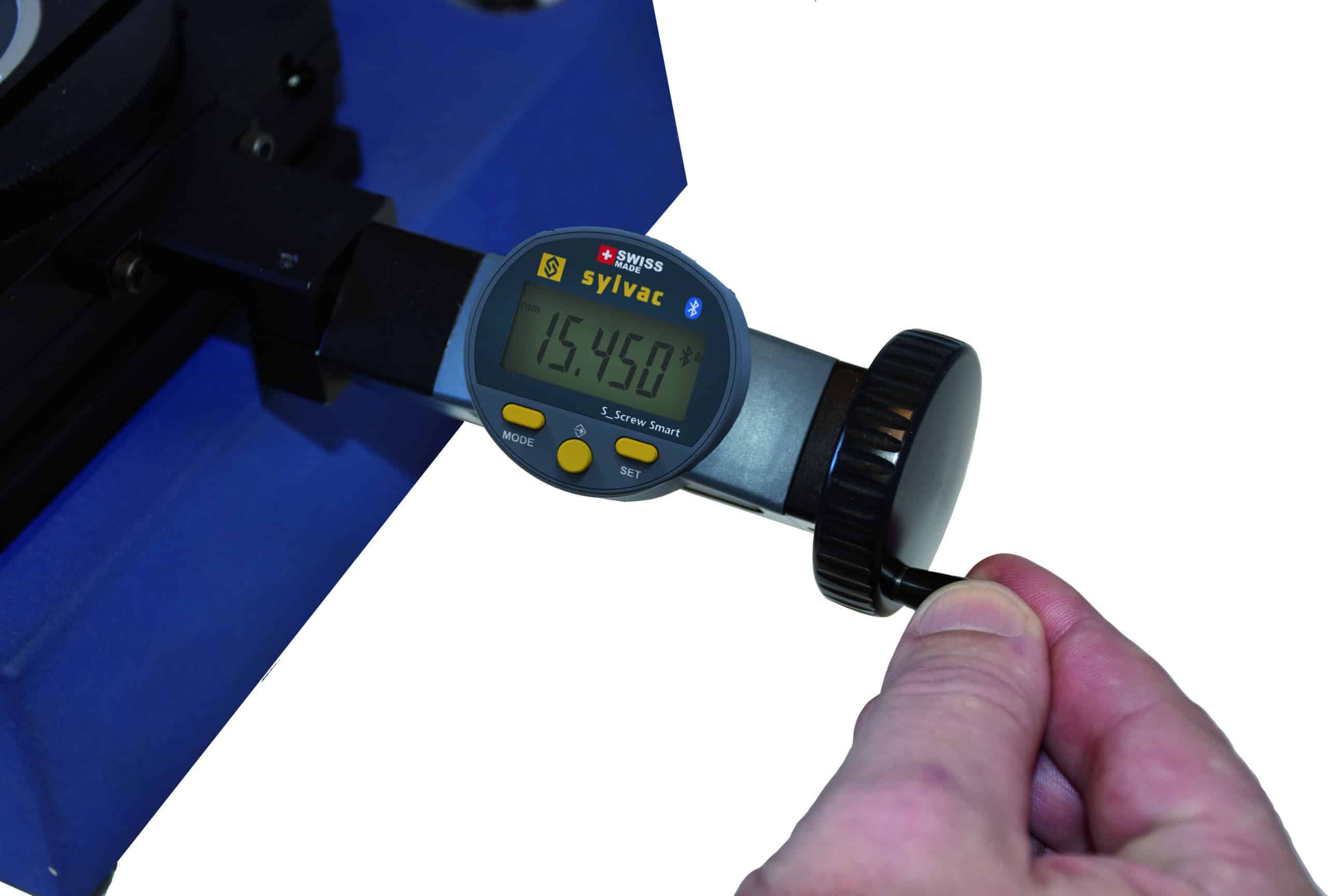

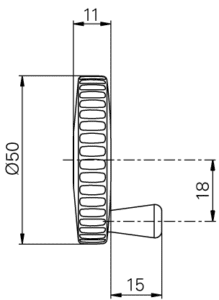

852-2311 | Handwheel Ø 50 mm with crank handle for fast motion |
![]() |

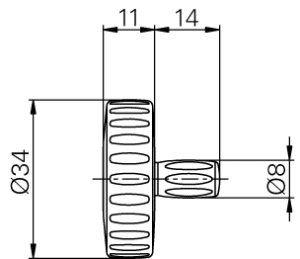

852-2312 | Handwheel Ø 34 mm |
![]() |
926-7022 | S_Footswitch Smart |
![]() |
985-2215 | Battery CR2032 |
-
Not available
-
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
Spécifications
852-2601 | 852-2611 | |
EAN | 7640125689549 | 7640125689808 |
Measuring range (mm) | 0-25 | 0-50 |
Max. error (µm) | 5 | 8 |
Repeatability (µm) | 2 | |
Resolution (mm) | 0.001 | |
A (mm) | 74.5 | 98.5 |
B (mm) | 33.1 | 57.1 |
Protection rating according to IEC 60529 | IP54 | |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|
Selection of measuring direction | ⬤ | |
PRESET function | ⬤ | |
4 measurement references | ⬤ | |
Multiplication factor | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Quickstart |
Handwheel Ø 50 mm (852-2311) |
Calibration certificate |
Accessories
Accessories | ||
![]() |
852-2310 | Fine adjustment device |
![]() |
852-2311 | Handwheel Ø 50 mm with crank handle for fast motion |
![]() |
852-2312 | Handwheel Ø 34 mm |
![]() |
926-7022 | S_Footswitch Smart |
![]() |
985-2215 | Battery CR2032 |
Tutorials
-
Not available
-
-
-
-
Documents
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
