Plastiform® SRD Dough Products
Starting at :
CHF 42.00
*Available in different measuring ranges
Description
Malleable dough imprint product.
Features
- No deformability: The dough products has low deformation capacity meaning that there is a limited ability for the product to shift or chnage shape once cured.
- Easy use: This product is well-suited for simple measurements, such as grooves or external dimensions, making it appropriate for medium to large-sized components with simple steps.
Overview
Specifications
Accessories
Applications
Tutorials
| Boxes 90ml | 928-7004 | 928-7006 | 928-7008 |
| EAN | 3760291480925 | 3760291480949 | 3760291480963 |
| Type | SRD6 | SRD7 | SRD9 |
| Description | Small boxes 90ml (2x45ml) | ||
| Color | |||
| Final consistency | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 60 | 70 | 90 |
| Removal constraint | 5% | 5% | 0% |
| Curing time |  |
|
|
| Contact measurement | ✓* | ✓ | ✓ |
| Cut with cutter ? | ✓ | ✓ | x |
| Boxes 900ml | 928-7003 | 928-7005 | 928-7007 |
| EAN | 3760291480918 | 3760291480932 | 3760291480956 |
| Type | SRD6 | SRD7 | SRD9 |
| Description | Pack of boxes 900ml (2x450ml) | ||
| Color | |||
| Final consistency | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 60 | 70 | 90 |
| Removal constraint | 5% | 5% | 0% |
| Curing time | |
|
|
| Contact measurement | ✓* | ✓ | ✓ |
| Cut with cutter ? | ✓ | ✓ | x |
*Only with low force instruments, suitable for soft materials
Applications

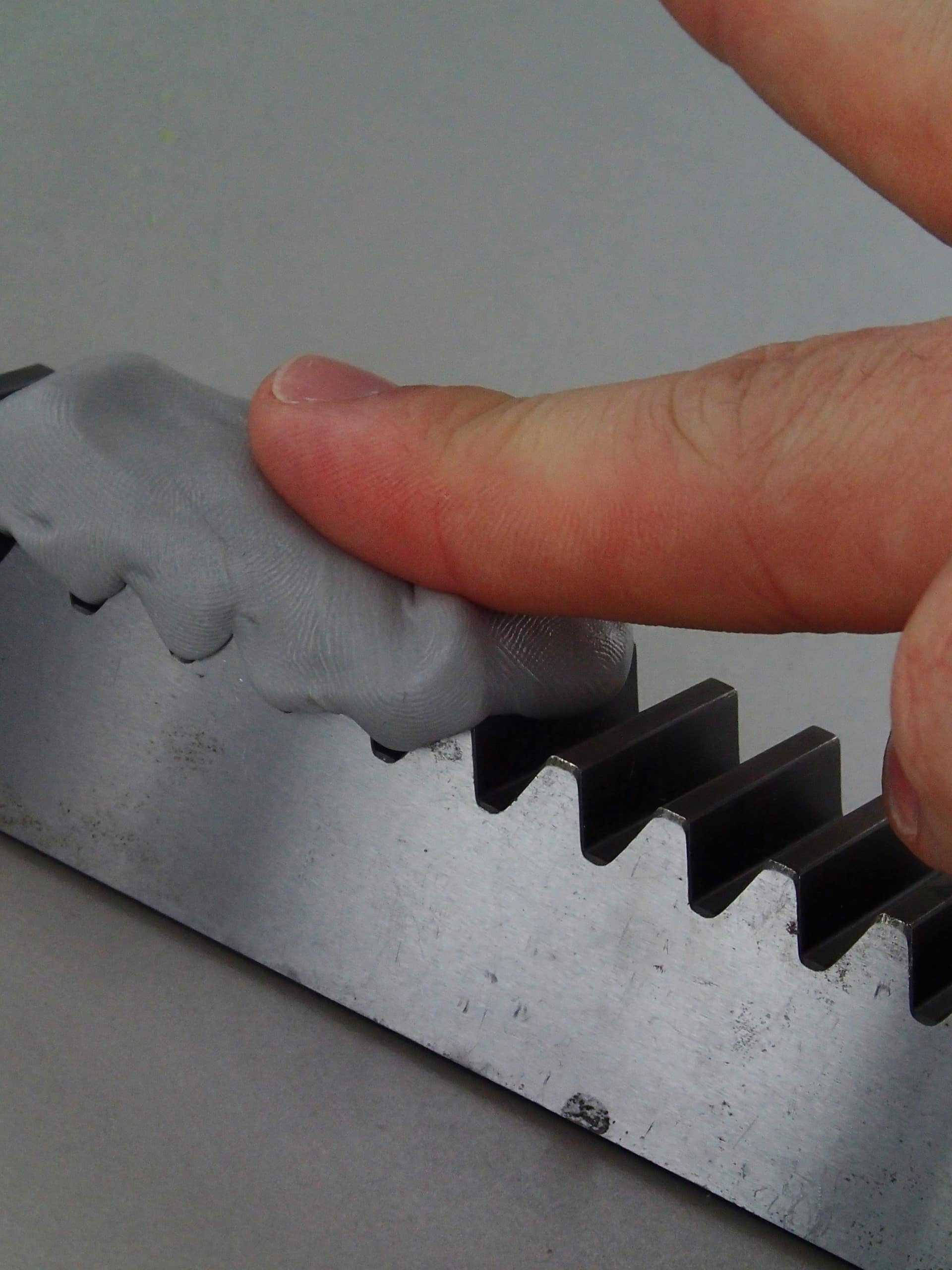

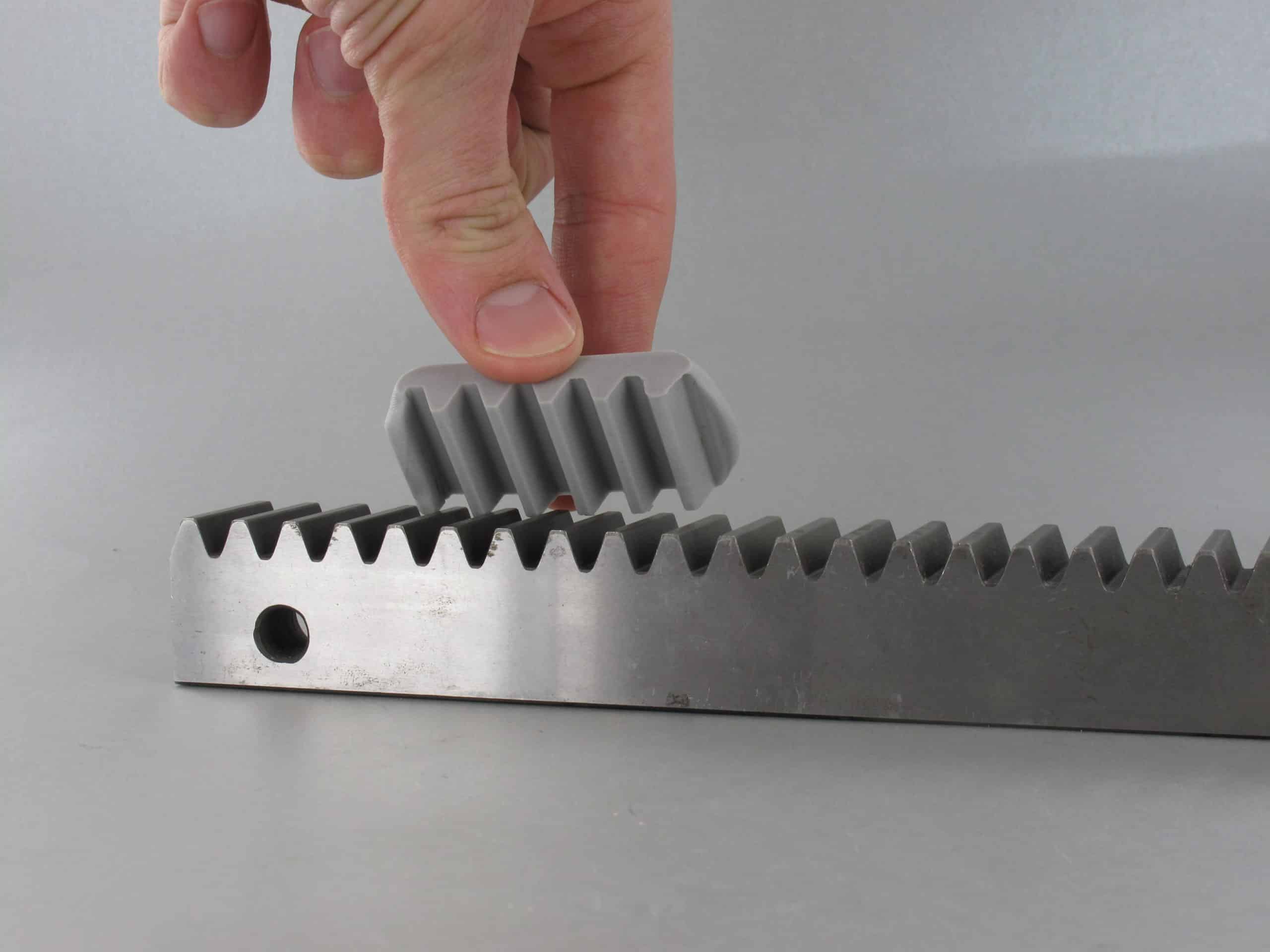

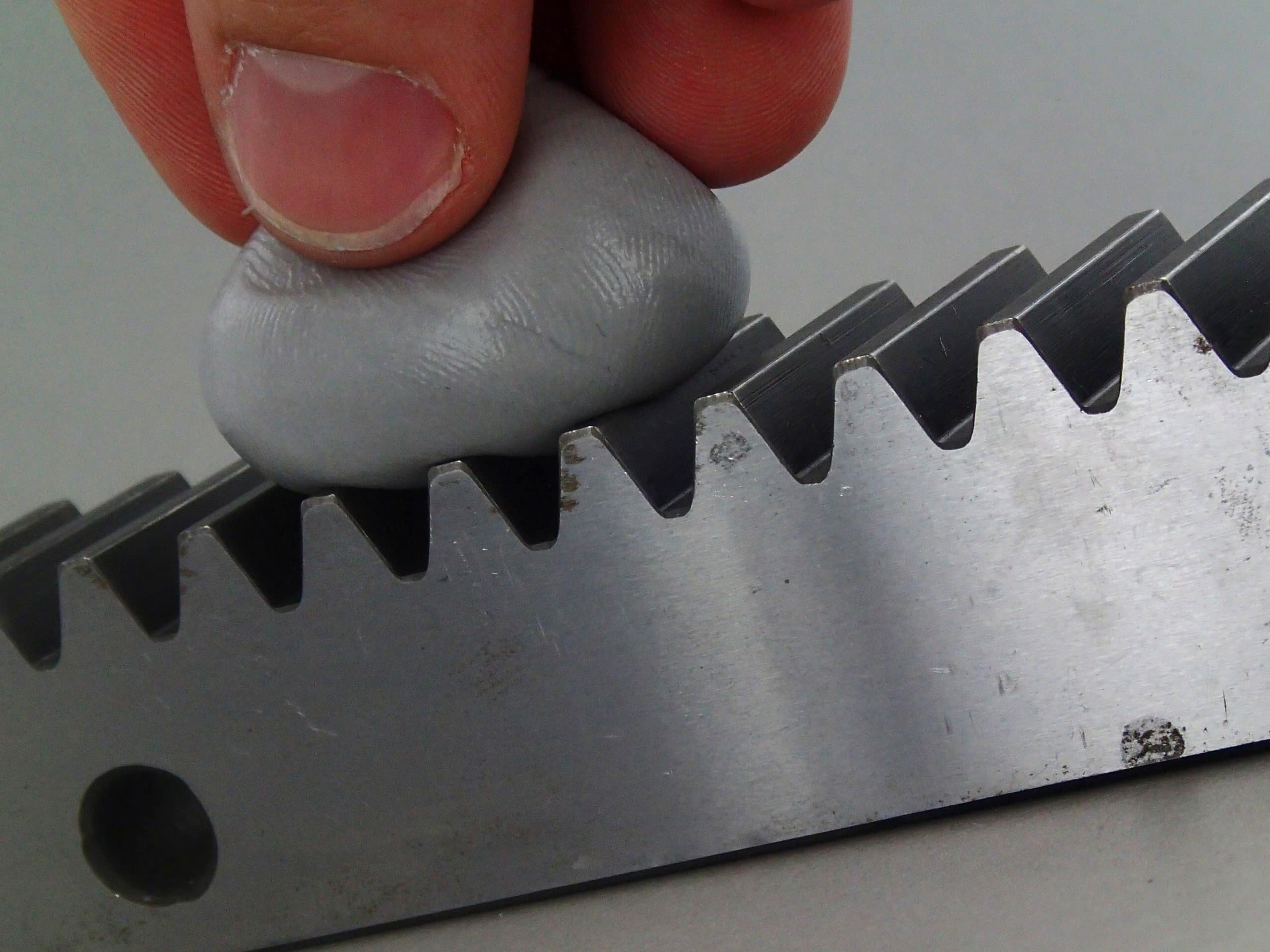

External impression
External impression
External impression
Tutoriel
Spécifications
| Boxes 90ml | 928-7004 | 928-7006 | 928-7008 |
| EAN | 3760291480925 | 3760291480949 | 3760291480963 |
| Type | SRD6 | SRD7 | SRD9 |
| Description | Small boxes 90ml (2x45ml) | ||
| Color | |||
| Final consistency | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 60 | 70 | 90 |
| Removal constraint | 5% | 5% | 0% |
| Curing time | |
|
|
| Contact measurement | ✓* | ✓ | ✓ |
| Cut with cutter ? | ✓ | ✓ | x |
| Boxes 900ml | 928-7003 | 928-7005 | 928-7007 |
| EAN | 3760291480918 | 3760291480932 | 3760291480956 |
| Type | SRD6 | SRD7 | SRD9 |
| Description | Pack of boxes 900ml (2x450ml) | ||
| Color | |||
| Final consistency | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 60 | 70 | 90 |
| Removal constraint | 5% | 5% | 0% |
| Curing time | |
|
|
| Contact measurement | ✓* | ✓ | ✓ |
| Cut with cutter ? | ✓ | ✓ | x |
*Only with low force instruments, suitable for soft materials
Accessoires
| Cutters & products | 928-1011 | 928-1101 | 928-1102 | 928-1103 | 928-1104 |
| Description | Standard Twin Blade Cutter + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 100mm + Support |
| Space between blades | 1mm | 0.5mm | 2mm | 0.5mm | 1mm |
| Cutters & products | 928-1105 | 928-1106 | 928-1107 | 928-1108 | 928-1205* | 928-1206* |
| Description | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Surface cleaner DN1 400ml |
Surface cleaner DN1 1l |
| Space between blades | 2mm | 0.5mm | 1mm | 2mm | – | – |
* Not included or delivered if shipped by air
