Plastiform® SRC Cement Products
Starting at :
CHF 100.00
*Available in different measuring ranges
Description
Paste consistency imprint product.
Features
- Versatile Application: This product offers the capability to imprint intricate shapes onto components, including vertical surfaces and overhangs. It can access areas that might be challenging for other products to reach. It is particularly well-suited for external measurements.
- Effortless Application: With its consistent properties, SRC products present an ideal solution for challenging imprints that are both clean and user-friendly. The uniform consistency prevents flowing, and the curing process takes less than a minute, ensuring the imprint retains its intended shape.
Overview
Specifications
Accessories
Applications
Tutorials
| Cartridges 50ml | 928-2109 | 928-2113 | 928-2111 |
| EAN | 3760291480666 | 3760291480703 | 3760291480680 |
| Type | SRC3 | SRC8 Ra | SRC10 |
| Description | 2 Cartridges 50ml + 12 Standard Nozzles + 3 Tips | ||
| Color | |||
| Final consistency | Flexible | Semi-Rigid | Rigid |
| Final hardness Shore A | 35 | 80 | 100 |
| Removal constraint | 20% | 0% | 0% |
| Curing time |  |
|
 |
| Contact measurement | x | ✓ | ✓ |
| Cut with cutter ? | ✓ | x | x |
| Cartridges 50ml | 928-2110 | 928-2114 | 928-2112 |
| EAN | 3760291480673 | 3760291480710 | 3760291480697 |
| Type | SRC3 | SRC8 Ra | SRC10 |
| Description | 8 Cartridges 50ml + 48 Standard Nozzles + 6 Tips | ||
| Color | |||
| Final consistency | Rigid | Semi-Rigid | Rigid |
| Final hardness Shore A | 35 | 80 | 100 |
| Removal constraint | 20% | 0% | 0% |
| Curing time | |
|
|
| Contact measurement | x | ✓ | ✓ |
| Cut with cutter ? | ✓ | x | x |
Applications

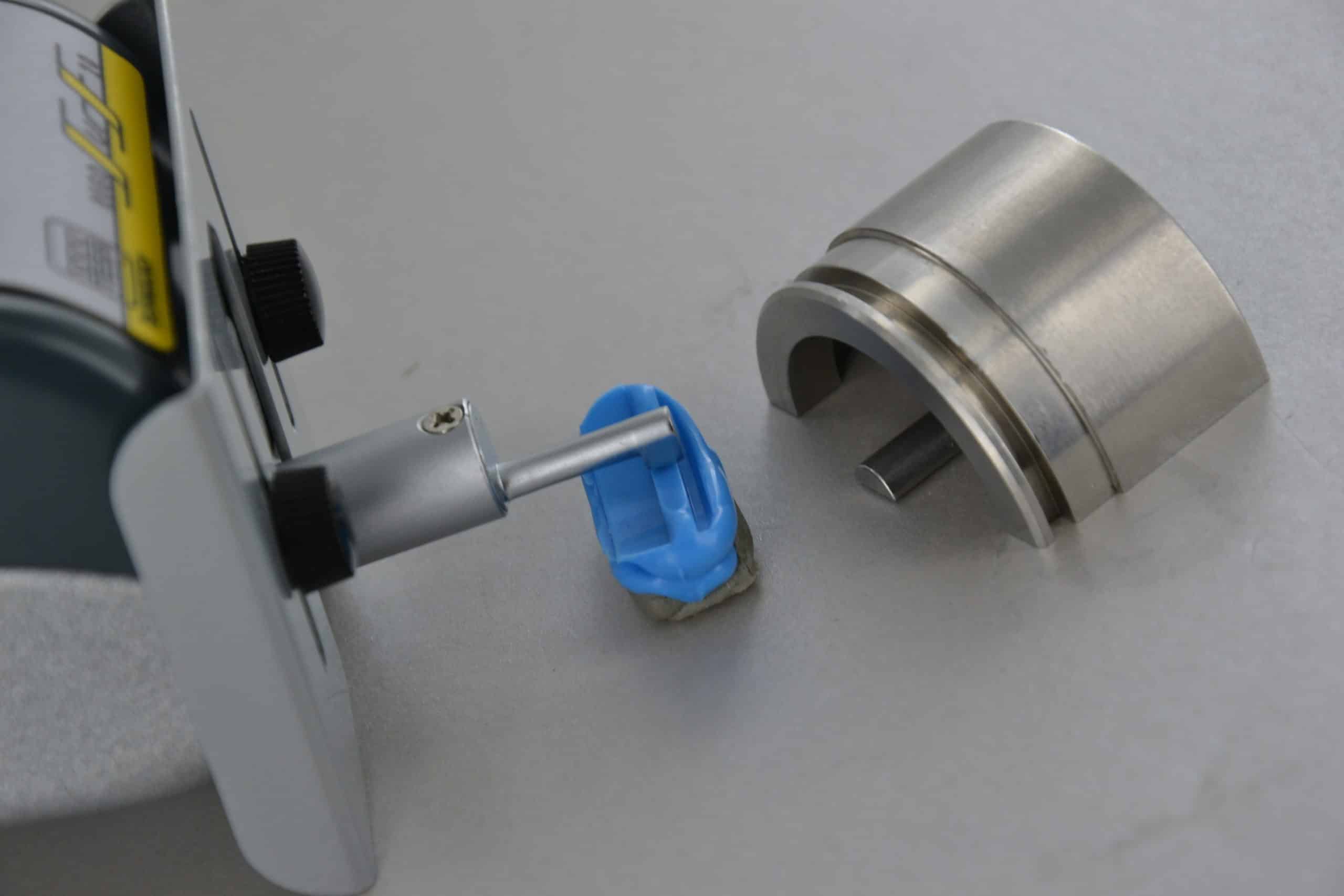

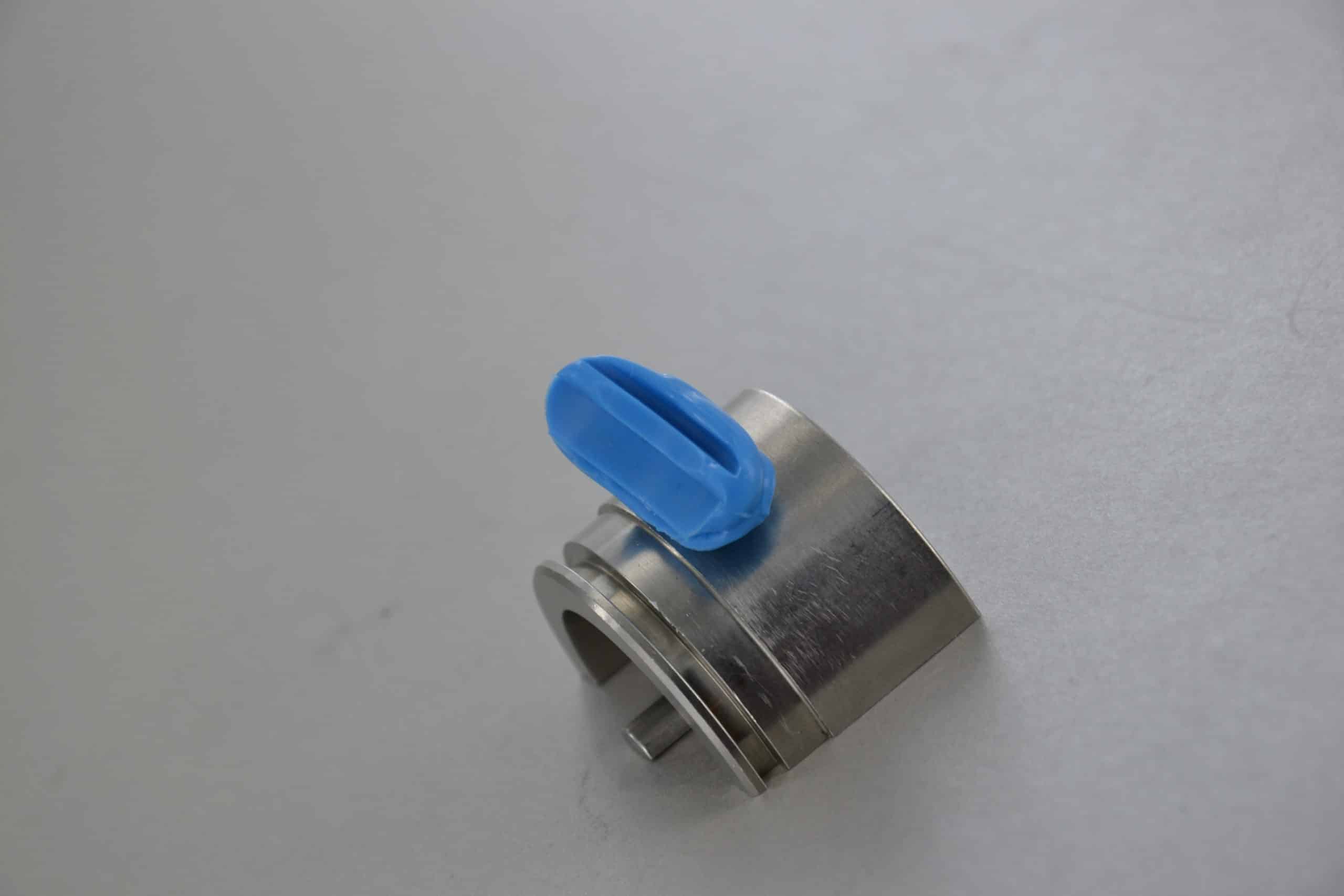

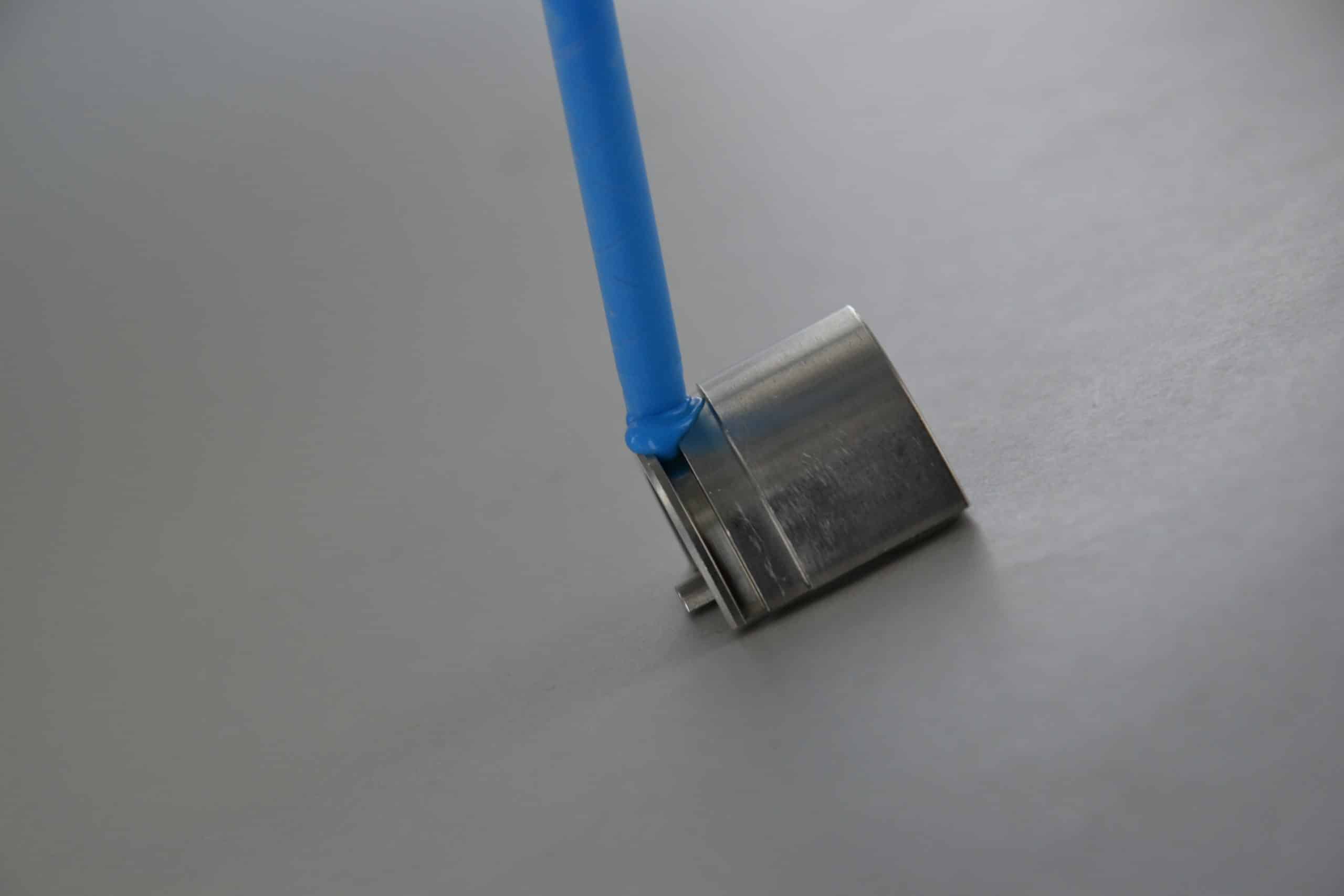

Control of roughness Ra
Control of roughness Ra
Control of roughness Ra
Tutoriel
Spécifications
| Cartridges 50ml | 928-2109 | 928-2113 | 928-2111 |
| EAN | 3760291480666 | 3760291480703 | 3760291480680 |
| Type | SRC3 | SRC8 Ra | SRC10 |
| Description | 2 Cartridges 50ml + 12 Standard Nozzles + 3 Tips | ||
| Color | |||
| Final consistency | Flexible | Semi-Rigid | Rigid |
| Final hardness Shore A | 35 | 80 | 100 |
| Removal constraint | 20% | 0% | 0% |
| Curing time | |
|
|
| Contact measurement | x | ✓ | ✓ |
| Cut with cutter ? | ✓ | x | x |
| Cartridges 50ml | 928-2110 | 928-2114 | 928-2112 |
| EAN | 3760291480673 | 3760291480710 | 3760291480697 |
| Type | SRC3 | SRC8 Ra | SRC10 |
| Description | 8 Cartridges 50ml + 48 Standard Nozzles + 6 Tips | ||
| Color | |||
| Final consistency | Rigid | Semi-Rigid | Rigid |
| Final hardness Shore A | 35 | 80 | 100 |
| Removal constraint | 20% | 0% | 0% |
| Curing time | |
|
|
| Contact measurement | x | ✓ | ✓ |
| Cut with cutter ? | ✓ | x | x |
Accessoires
| Guns | 928-1001 | 928-1002 |
| Description | Manual Dispensing Gun DS53 (for 50 ml cartridges) |
Pneumatic Dispensing Gun DP50 (for 50 ml cartridges) |
| Nozzles, tips and rings |
928-1003 | 928-1004 | 928-1005 | 928-1301 | 928-1302 |
| Description | Pack of 48 Standard Grey Mixer Injectors | Pack of 96 Standard Grey Mixer Injectors | Pack of 192 Standard Grey Mixer Injectors | Pack of 10 Needle Mixer Injectors | Pack of 50 Needle Mixer Injectors |
| Nozzles, tips and rings |
928-1003 | 928-1004 | 928-1005 | 928-1301 | 928-1302 |
| Description | Pack of 48 Standard Grey Mixer Injectors | Pack of 96 Standard Grey Mixer Injectors | Pack of 192 Standard Grey Mixer Injectors | Pack of 10 Needle Mixer Injectors | Pack of 50 Needle Mixer Injectors |
| Nozzles, tips and rings | 928-1303 | 928-1304 |
| Description | Pack of 100 Needle Mixer Injectors |
Pack of 200 Needle Mixer Injectors |
| Cutters & products | 928-1011 | 928-1101 | 928-1102 | 928-1103 | 928-1104 |
| Description | Standard Twin Blade Cutter + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 100mm + Support |
| Space between blades | 1mm | 0.5mm | 2mm | 0.5mm | 1mm |
| Cutters & products | 928-1105 | 928-1106 | 928-1107 | 928-1108 | 928-1205* | 928-1206* |
| Description | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Surface cleaner DN1 400ml |
Surface cleaner DN1 1l |
| Space between blades | 2mm | 0.5mm | 1mm | 2mm | – | – |
* Not included or delivered if shipped by air
