Professional micrometer S_Mike PRO Cylindrical Ø6.5
Starting at :
CHF 397.00
*Available in different measuring ranges
Description
High-speed micrometer with non-rotating spindle. Ø6.5mm cylindrical anvils.
Features

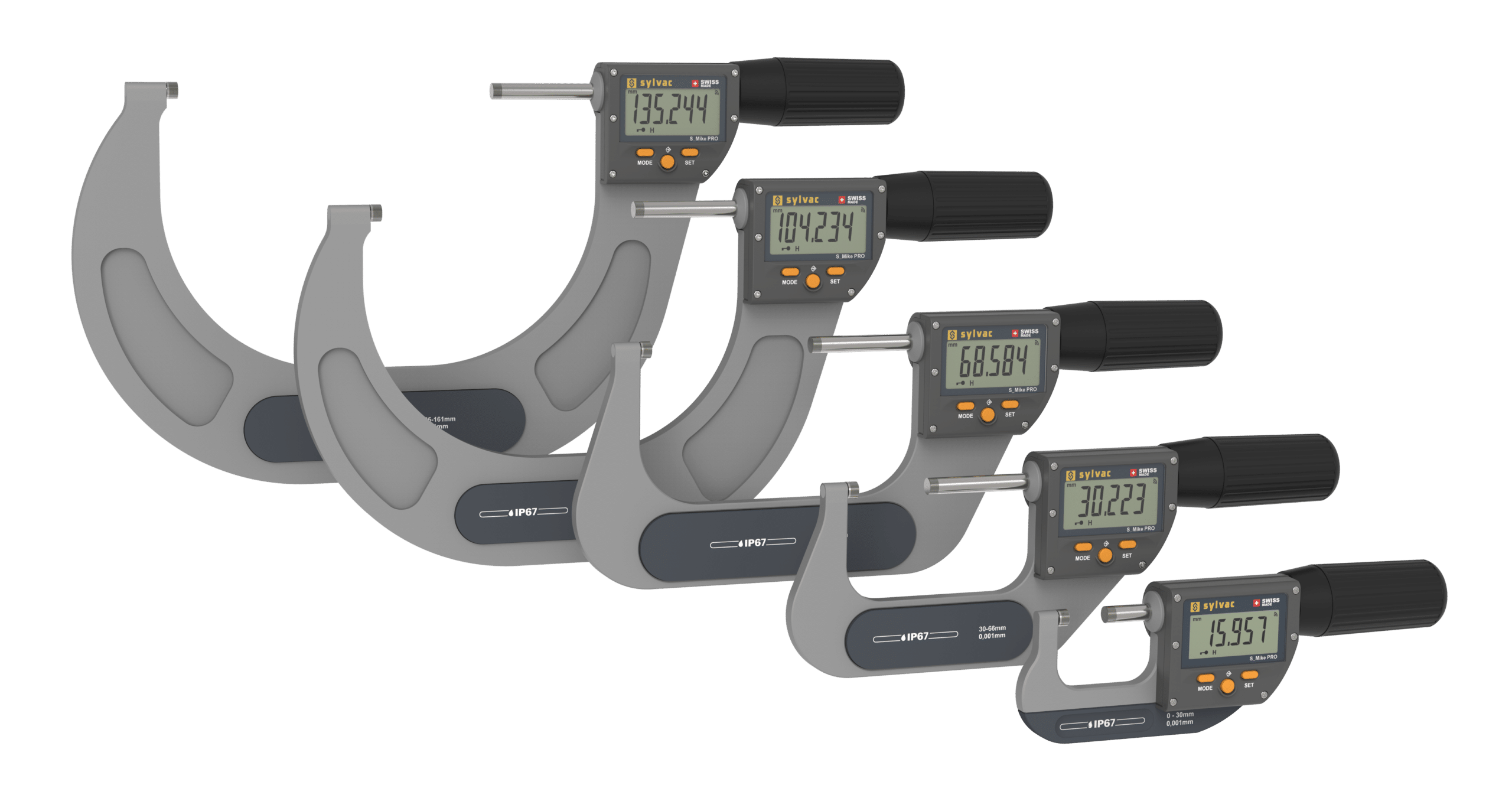

- High-Speed and Accurate Measurements: This micrometer comes in 5 measuring ranges (0-30mm, 30-66mm, 66-102mm, 100-136mm, 125-161mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.
- Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.
- Convenient Features: Proximity data output and SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.
- Built to Last: 6.5mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
- Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 803-030X) in one apparel
- Complete Set: A set of 3 micrometers with a measuring range of 0-102 mm is available. Each instrument comes with a UKAS certificate and all rings, ensuring accuracy and reliability. Optional stand for easier parts handling.
Applications
Diameter
Form deviation
Distance
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 803-0300 | 903-0600 | 903-1000 | 903-1360 | 903-1600 | |
| EAN | 7640125715507 | 7640125714180 | 7640125714197 | 7640125697872 | 7640125697889 |
| Measuring range (mm) | 0-30 | 30-66 | 66-102 | 100-136 | 125-161 |
| Max. Error MPEյ¹ (µm) | 3 | 4 | 5 | 7 | 8 |
| Repeatability² (µm) | 1 | 1 | 1 | 2 | 2 |
| Anvils types | Ø6.5 | ||||

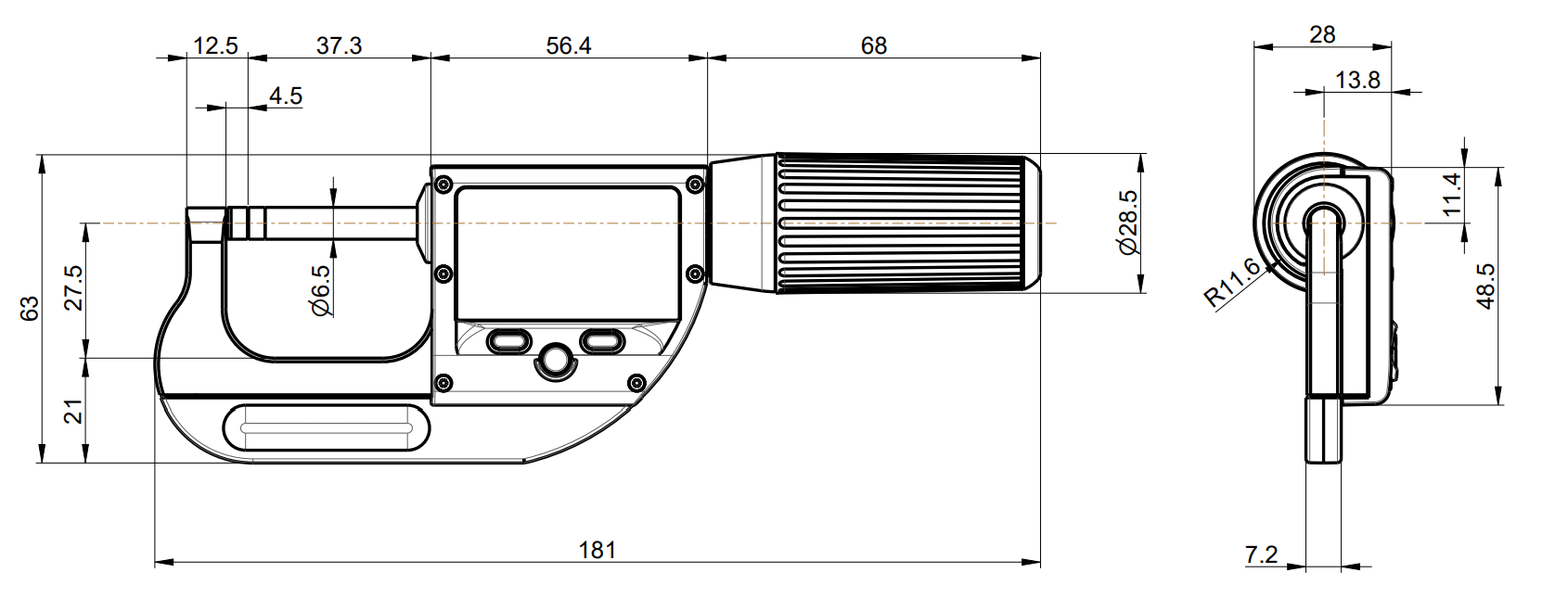

| A (mm) | 37.3 | 73.3 | 109.3 | 143.3 | 168.3 |
| B (mm) | 27.5 | 43 | 60 | 95 | 110 |
| C (mm) | 68 | 74 | 74 | 74 | 74 |
| D (mm) | 12.5 | 13.5 | 14.5 | 19.5 | 19.5 |
| E (mm) | 63 | 86 | 106 | 151 | 169 |
| F (mm) | 181 | 230 | 269 | 306 | 339 |
| G (mm) | 7.2 | 9 | 9 | 9 | 9 |
| Output data | USB / RS 232 | ||||
| Prot. rating accor. to IEC 60529 | IP67 even connected | ||||
| Setting by PC | ⬤ | ||||
| Adjustable measuring force | 5N / 10N | 10N | |||
| Non-rotating spindle | ⬤ | ||||
| Fast movement | ⬤ | ||||
| Preset function | ⬤ | ||||
| Smart Inductive Sensor | ⬤ | ||||
¹ according to DIN 863 / ISO 3611
² ± 1 digit
Spécifications
| 803-0300 | 903-0600 | 903-1000 | 903-1360 | 903-1600 | |
| EAN | 7640125715507 | 7640125714180 | 7640125714197 | 7640125697872 | 7640125697889 |
| Measuring range (mm) | 0-30 | 30-66 | 66-102 | 100-136 | 125-161 |
| Max. Error MPEյ¹ (µm) | 3 | 4 | 5 | 7 | 8 |
| Repeatability² (µm) | 1 | 1 | 1 | 2 | 2 |
| Anvils types | Ø6.5 | ||||
| A (mm) | 37.3 | 73.3 | 109.3 | 143.3 | 168.3 |
| B (mm) | 27.5 | 43 | 60 | 95 | 110 |
| C (mm) | 68 | 74 | 74 | 74 | 74 |
| D (mm) | 12.5 | 13.5 | 14.5 | 19.5 | 19.5 |
| E (mm) | 63 | 86 | 106 | 151 | 169 |
| F (mm) | 181 | 230 | 269 | 306 | 339 |
| G (mm) | 7.2 | 9 | 9 | 9 | 9 |
| Output data | USB / RS 232 | ||||
| Prot. rating accor. to IEC 60529 | IP67 even connected | ||||
| Setting by PC | ⬤ | ||||
| Adjustable measuring force | 5N / 10N | 10N | |||
| Non-rotating spindle | ⬤ | ||||
| Fast movement | ⬤ | ||||
| Preset function | ⬤ | ||||
| Smart Inductive Sensor | ⬤ | ||||
¹ according to DIN 863 / ISO 3611
² ± 1 digit
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
| Calibration certificate |
Accessories
| Accessories | ||
 |
903-0330 | Stand |
 |
903-0620 | Setting master 50 mm |
 |
903-1020 | Setting master 75 mm |
 |
903-1620 | Setting master 125 mm |
 |
985-2215 | Battery CR2032 |
