Professional micrometer S_Mike PRO Spherical Ø7
Starting at :
CHF 771.00
*Available in different measuring ranges
Description
High-speed micrometer with non-rotating spindle. Ø 7 mm spherical anvils 3.5 mm radius.
Features
• High-Speed and Accurate Measurements: This micrometer offers a 0-25mm measuring range, with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.
• Advanced Connectivity: Proximity data output, available in Bluetooth® version on request.
• Stable, Reliable and Repeatable: System features a ratchet that cancels operator influence and a spherical anvil allowing a single contact point less sensitive to curved part positioning error. The system guarantees excellent and fast repeatability.
• Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.
• Built to Last: Ø 7 mm spherical anvils 3.5 mm radius made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
• Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N in one instrument.
Optional stand for easier parts handling.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
803-0305 | |
EAN | 7640125716689 |
Measuring range (mm) | 0-30 |
Max. Error MPEյ¹ (µm) | 4 |
Repeatability² (µm) | 1 |
Anvils types | Ø7 (2 spherical) |
Output data | USB / RS 232 / Bluetooth on demand |
Prot. rating accor. to IEC 60529 | IP67 even connected |
Setting by PC | ⬤ |
Adjustable measuring force | 5N / 10N |
Non-rotating spindle | ⬤ |
Fast movement | ⬤ |
Preset function | ⬤ |
Smart Inductive Sensor | ⬤ |
¹ according to DIN 863 / ISO 3611
² ± 1 digit
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
Accessories | ||
903-0330 | Stand | |
985-2215 | Battery CR2032 |
Available soon
-
Measuring force adjustment
How to take care of your Sylvac instrument
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-

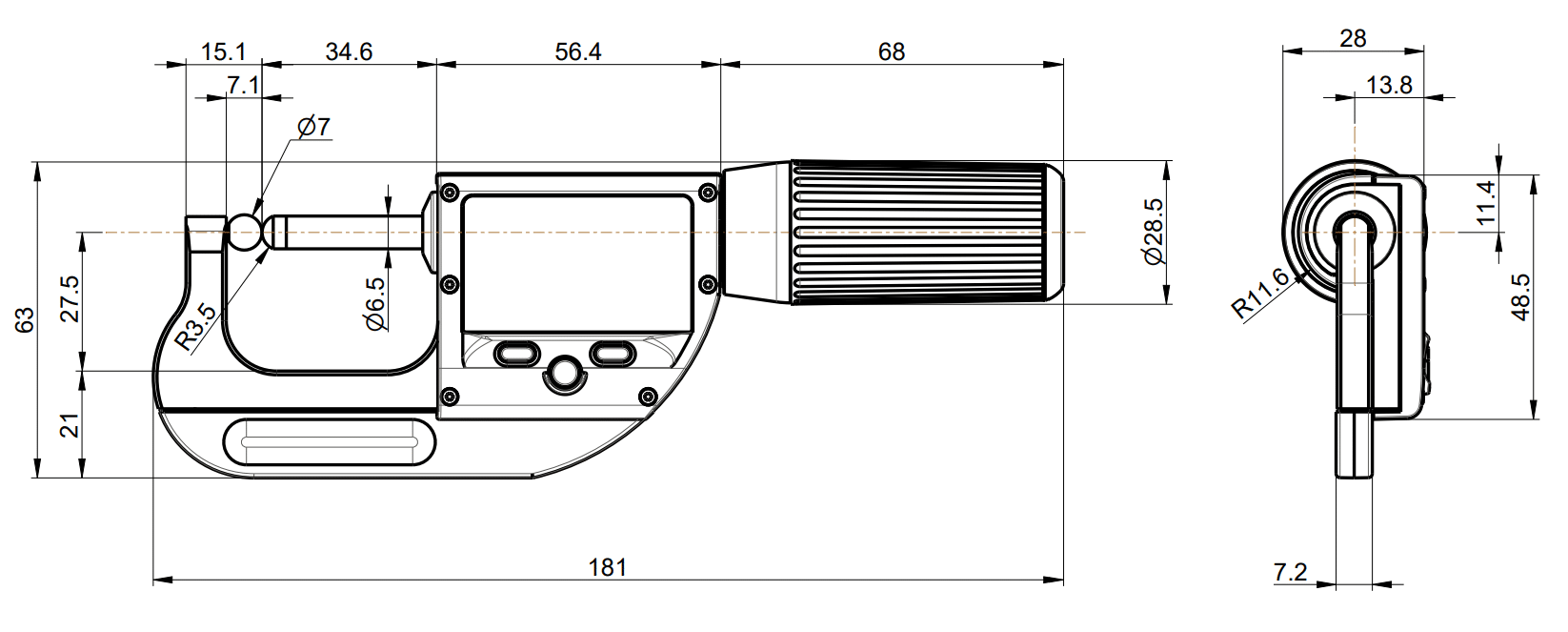

- Technical Plan
- 3D Drawing
- Manual
- Certificate
