Professional micrometer S_Mike PRO Cylindrical Ø6.5 Smart
Description
High-speed micrometer with non-rotating spindle with integrated Bluetooth®. Ø6.5mm cylindrical anvils.
* Available in different measuring ranges
* Available in different measuring ranges
Features

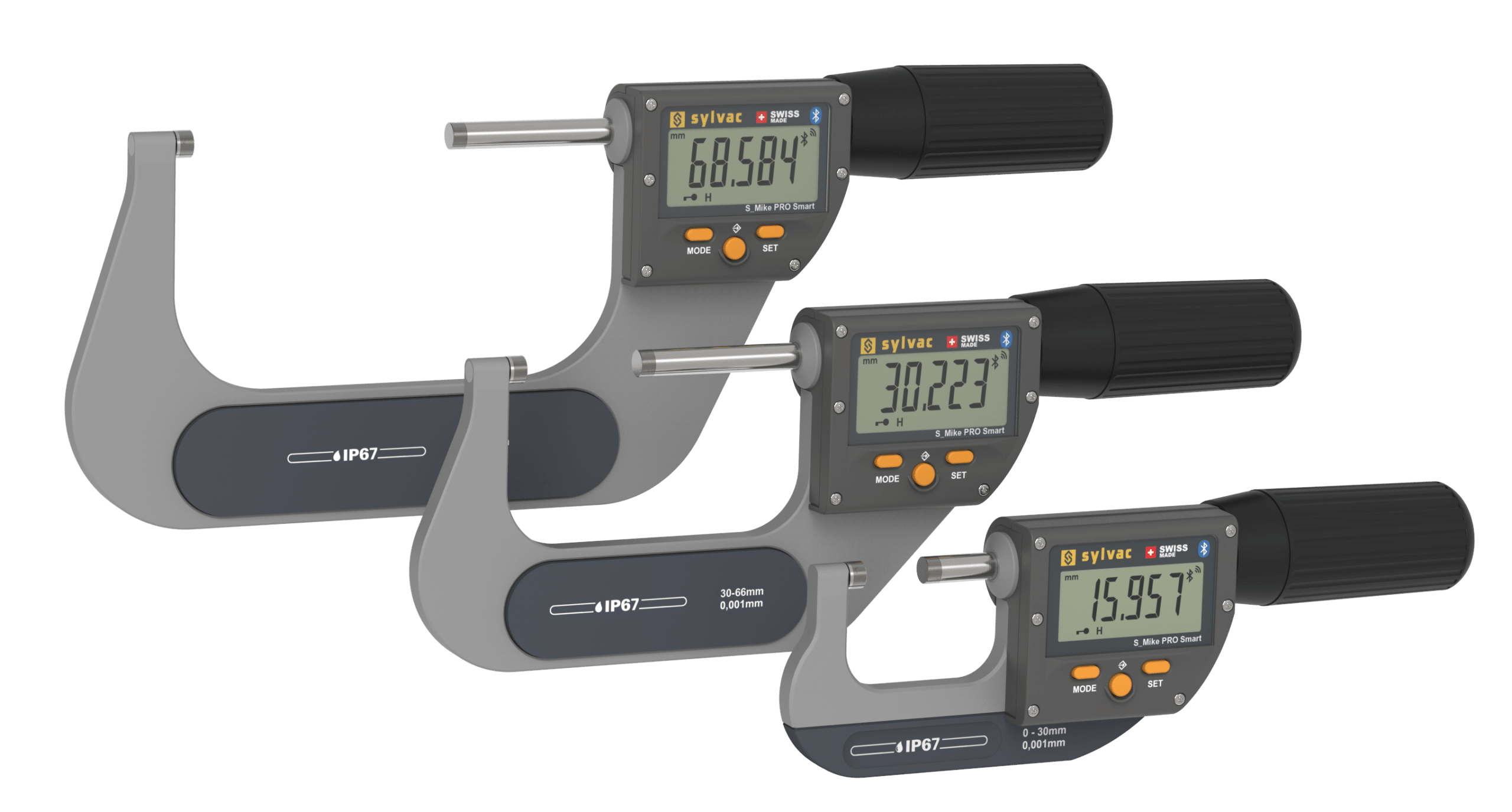

- High-Speed and Accurate Measurements: This micrometer comes in 3 measuring ranges (0-30mm, 30-66mm, 66-102mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.
- Advanced Connectivity: This micrometer features an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.
- Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.
- Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.
- Built to Last: 6.5mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
- Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 803-030X) in one instrument. Optional stand for easier parts handling.
Overview
Specifications
Standard Delivery
Accessories

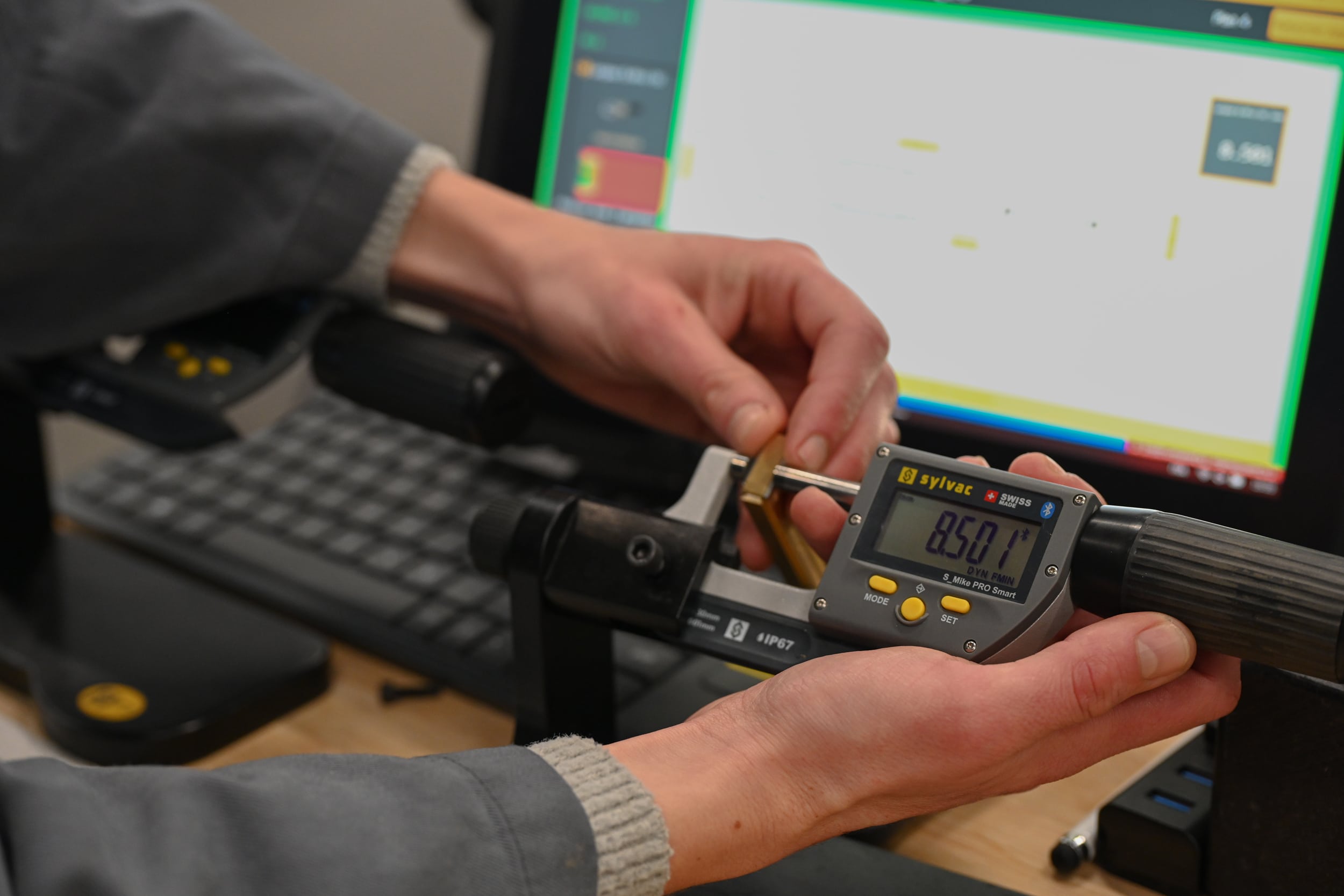

Applications
Tutorials
Documents
803-0306 | 903-0606 | 903-1006 | |
EAN | 7640125711905 | 7640125713237 | 7640125713244 |
Measuring range (mm) | 0-30 | 30-66 | 66-102 |
Max. error MPEյ (µm) | 3 ² | 4 ² | 5 ² |
Repeatability (µm) | 1 ³ | 1 ³ | 1 ³ |
Anvils types | Ø6.5 ⁴ | ||
A (mm) | 37.3 | 73.3 | 109.3 |
B (mm) | 27.5 | 43 | 60 |
C (mm) | 68 | 74 | 74 |
D (mm) | 12.5 | 13.5 | 14.5 |
E (mm) | 63 | 86 | 106 |
F (mm) | 181 | 230 | 269 |
G (mm) | 7.2 | 9 | 9 |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ | ||
Protection rating according to IEC 60529 | IP67 even connected | ||
Setting by PC | ⬤ | ||
Adjustable measuring force | 5N / 10N | 10N | |
Non-rotating spindle | ⬤ | ||
Fast movement | ⬤ | ||
Preset function | ⬤ | ||
Smart Inductive Sensor | ⬤ |
¹ Device: PC, display unit, …
² according to DIN 863 / ISO 3611
³ ± 1 digit
⁴ Other anvils type on demand
Standard Delivery |
Instrument according to technical specifications |
Setting master 50 mm (for 903-060X) |
Setting master 75 mm (for 903-100X) |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
-
Measuring force adjustment
How to take care of your Sylvac instrument
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
