Professional micrometer S_Mike PRO Point / Spherical
Starting at :
CHF 930.00
*Available in different measuring ranges
Description

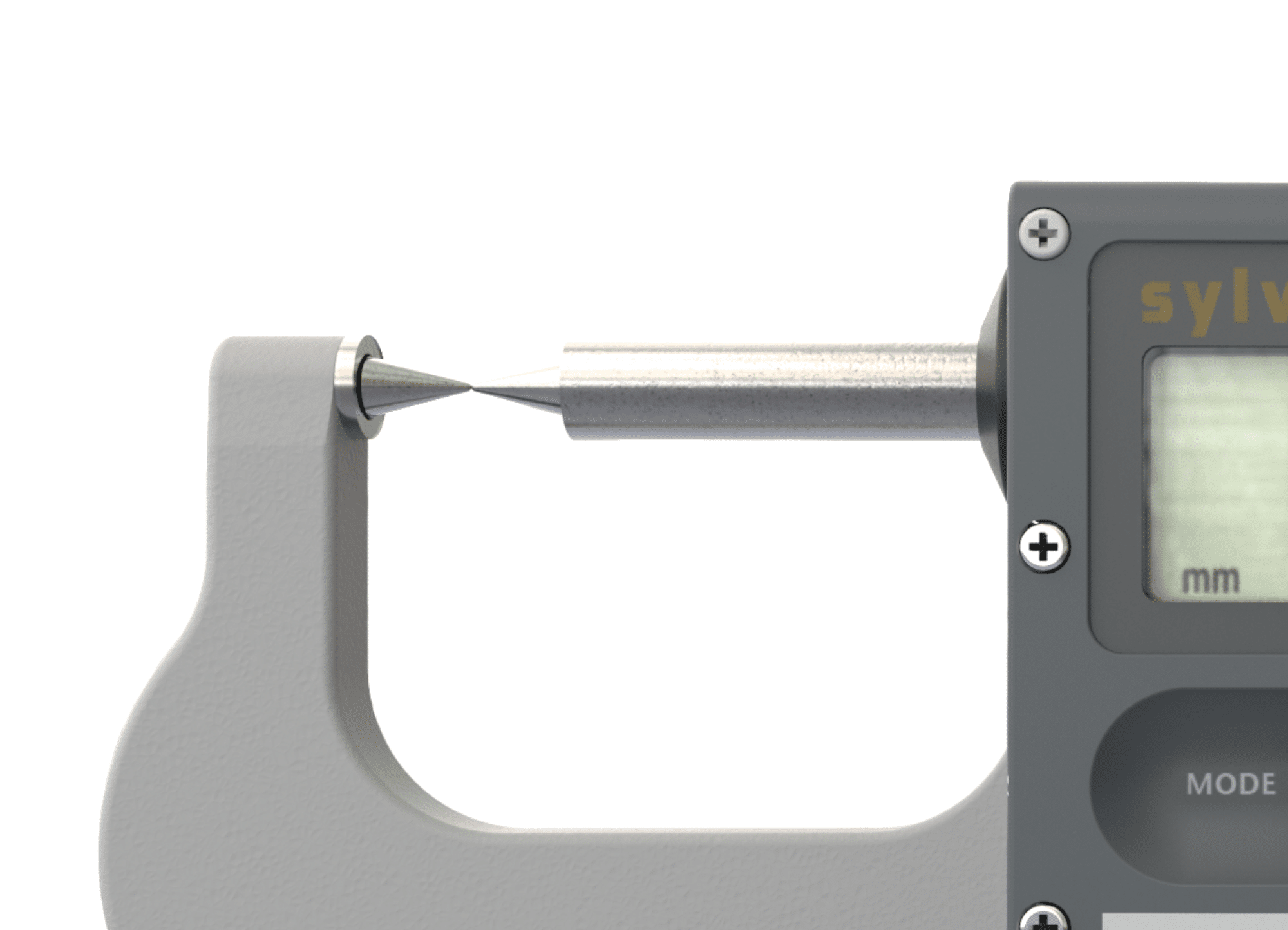

High-speed micrometer with non-rotating spindle with integrated Bluetooth® system. 30° point and R0.3mm spherical anvils. Special application for fluted shaft.
Features
• High-Speed and Accurate Measurements: This micrometer offers a 0-25mm measuring range, with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.
• Advanced Connectivity: This micrometer features an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors
• Stable, Reliable and Repeatable: System features a ratchet that cancels operator influence and a spherical anvil allowing a single contact point less sensitive to curved part positioning error. The system guarantees excellent and fast repeatability.
• Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.
• Built to Last: 30° point and R0.3mm spherical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
• Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N in one instrument.
Optional stand for easier parts handling.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
803-0310 | |
EAN | 7640125718669 |
Measuring range (mm) | 0-25 |
Max. Error MPEյ¹ (µm) | 3 |
Repeatability² (µm) | 1 |
Anvils types | Point 30° – spherical R0.3mm |
Output data | Bluetooth® wireless technology |
Prot. rating accor. to IEC 60529 | IP67 even connected |
Setting by PC | ⬤ |
Adjustable measuring force | 5N / 10N |
Non-rotating spindle | ⬤ |
Fast movement | ⬤ |
Preset function | ⬤ |
Smart Inductive Sensor | ⬤ |
¹ according to DIN 863 / ISO 3611
² ± 1 digit
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
Accessories | ||
903-0330 | Stand | |
985-2215 | Battery CR2032 | |
926-7022 | S_Footswitch Smart |
Available soon
-
Measuring force adjustment
How to take care of your Sylvac instrument
-
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-

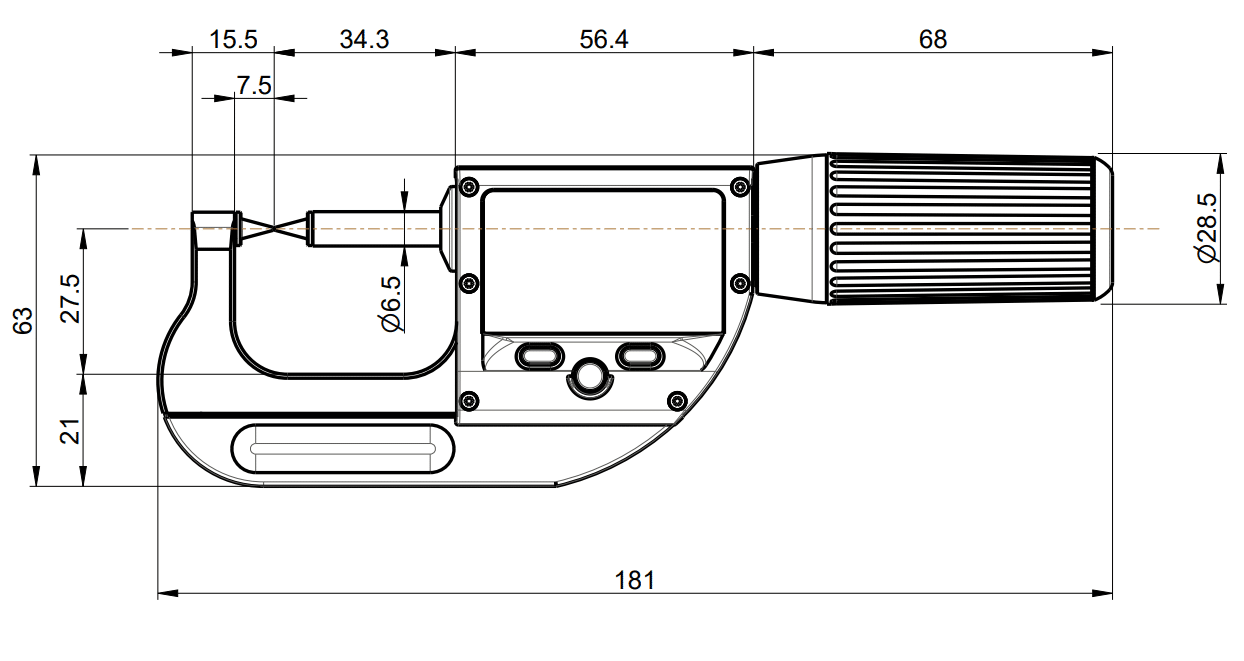

- Technical Plan
- 3D Drawing
- Manual
- Certificate
