Professional micrometer S_Mike PRO Knife-shaped
Description
High-speed micrometer with non-rotating spindle with or without integrated Bluetooth® system. 0.75×6.5mm knife-shaped anvils.
* Available in different measuring ranges
* Available in different measuring ranges
Features
• High-Speed and Accurate Measurements: This micrometer comes in 5 measuring ranges (0-25mm, 25-60mm, 60-95mm, 95-130mm, 120-155mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution. Perfect mobile solution for high precision measurement needs.

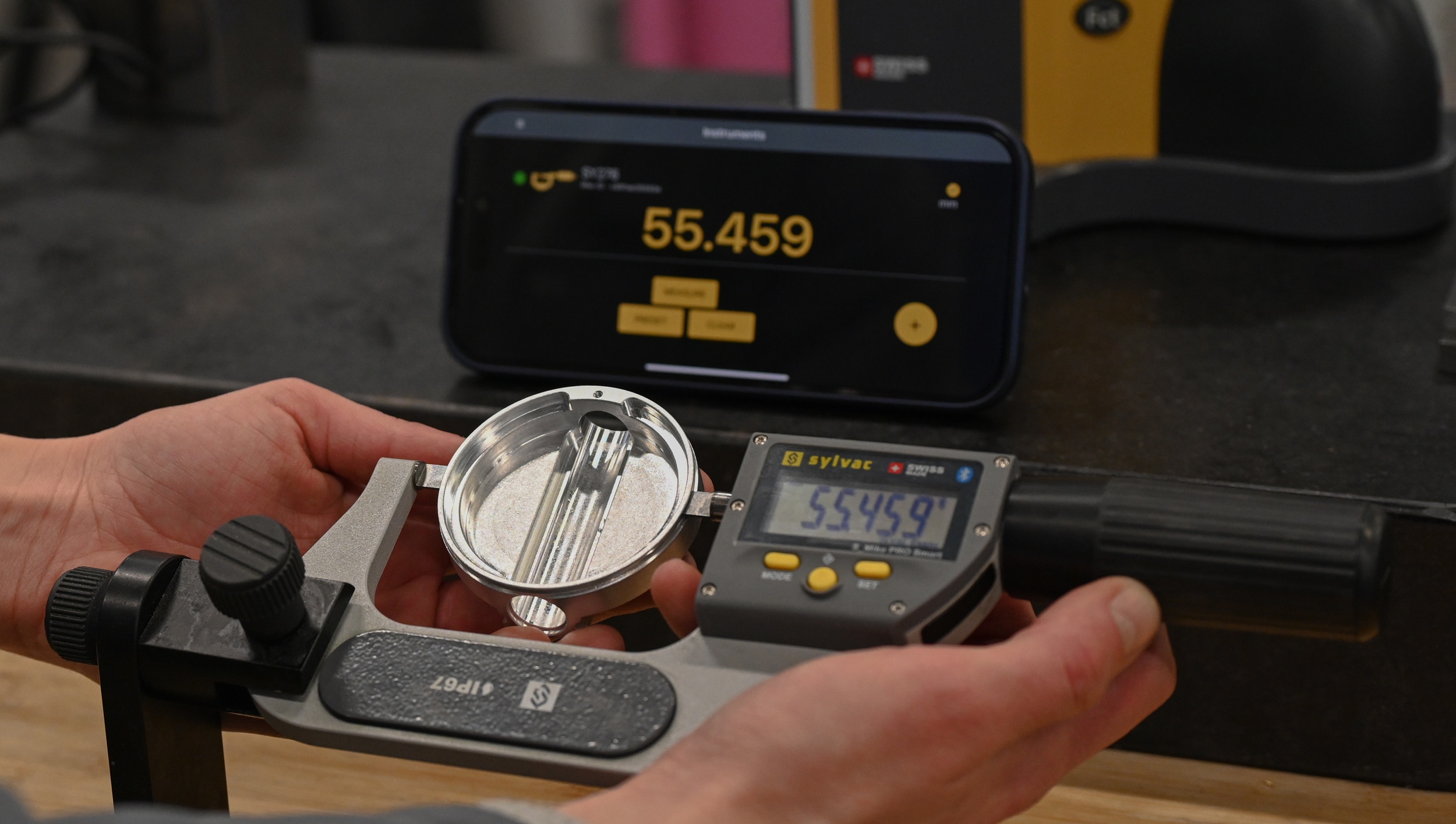

• Advanced Connectivity: This micrometer features a Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.
• Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.
• Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

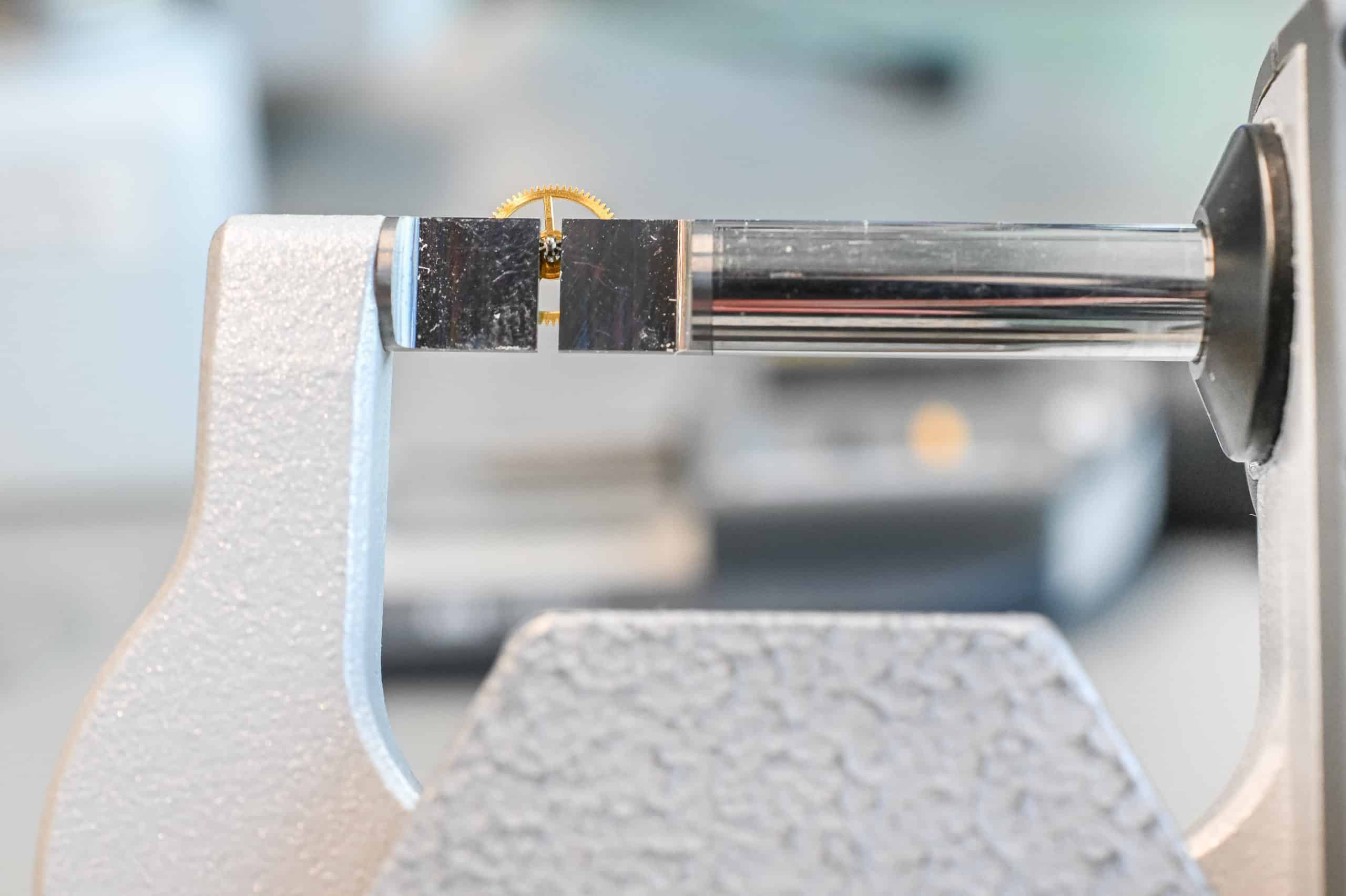

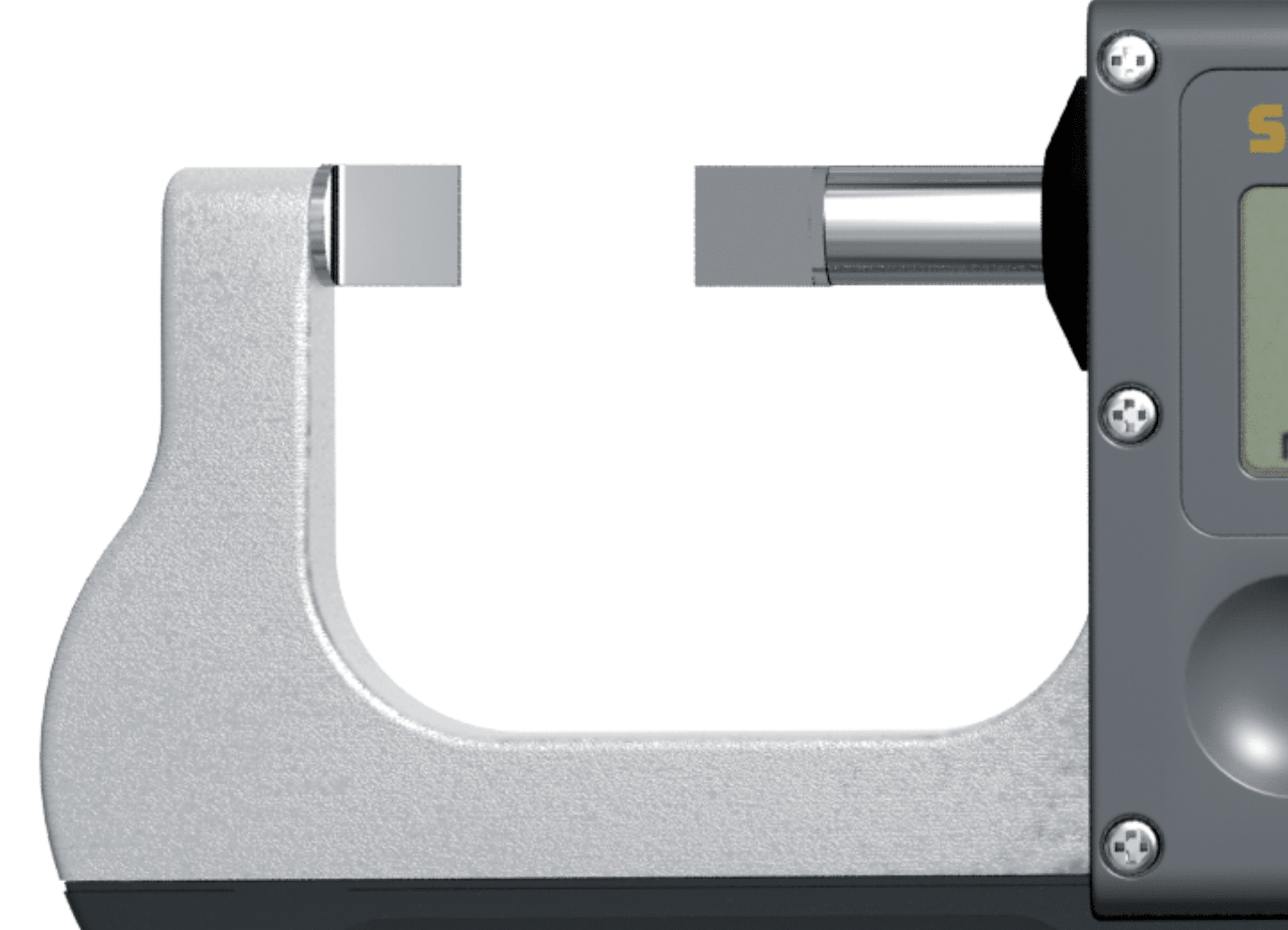

• Built to Last: 0.75×6.5mm knife-shaped anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
• Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 803-030X) in one instrument. Customizable with anvils of different tickness (min 0.4mm) upon request. Available in Bluetooth versions upon request.

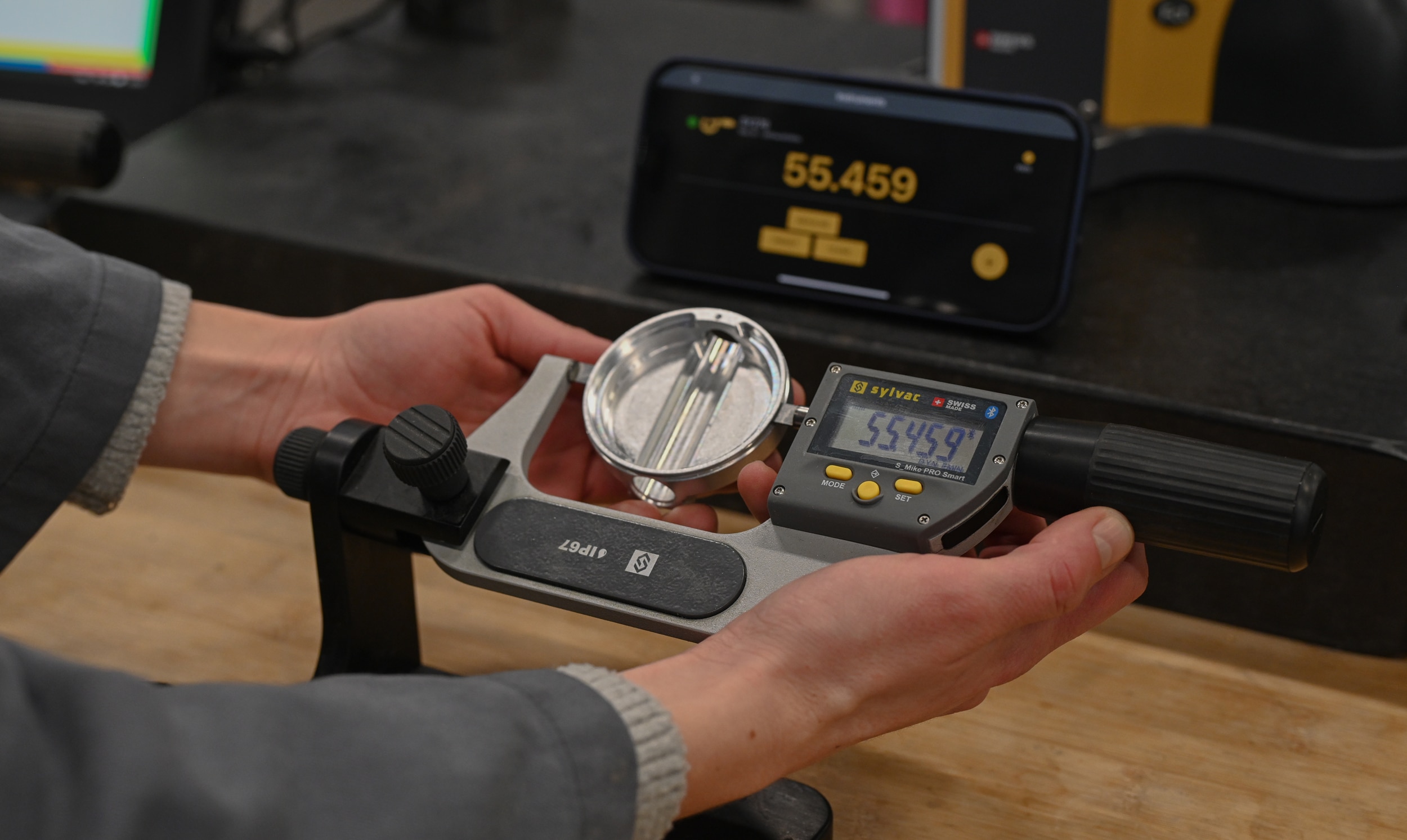

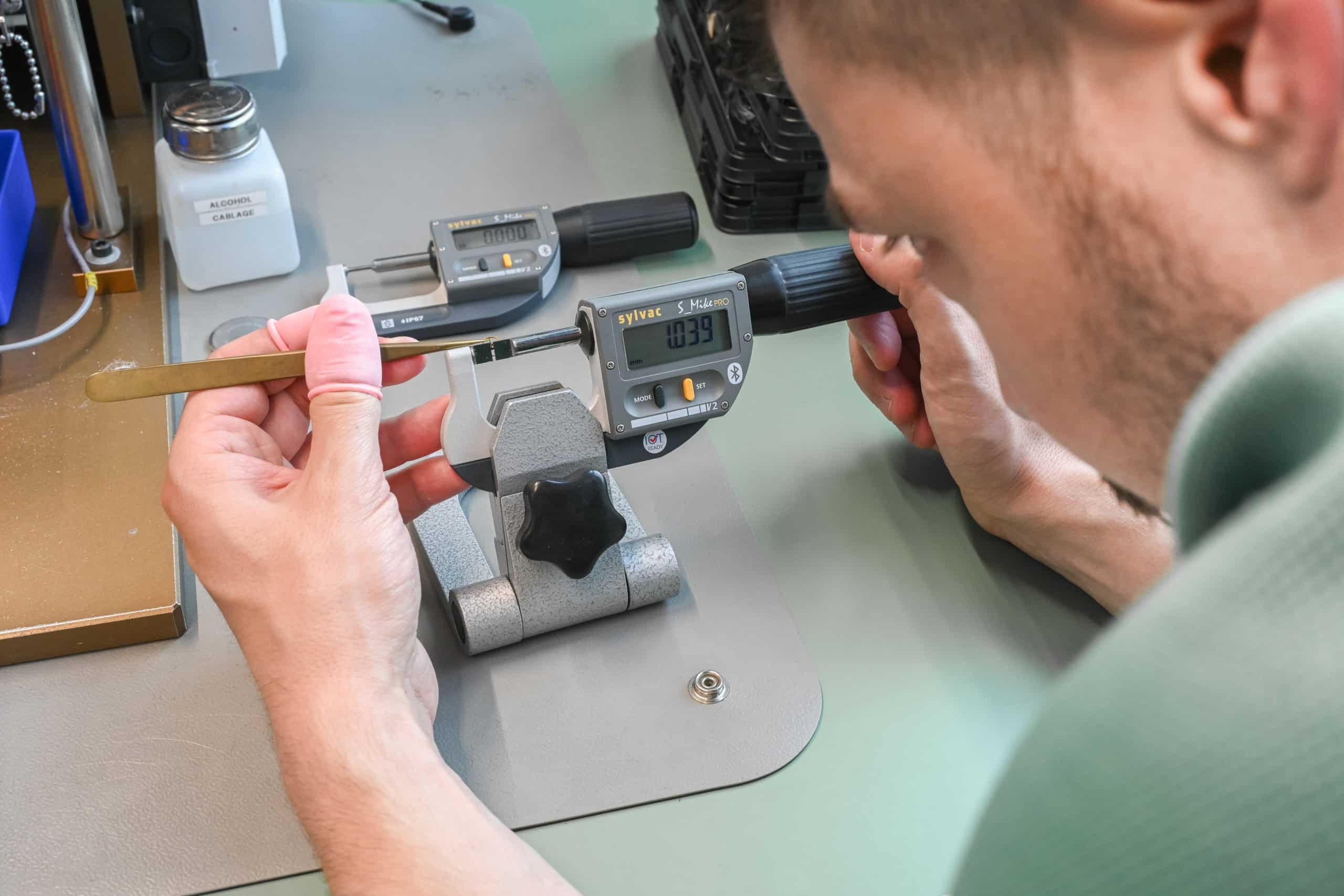

Optional stand for easier parts handling.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
803-0308 | 903-0612 | 903-1012 | 903-1312 | 903-1612 | |
EAN | 7640125711912 | 7640125711097 | 7640125711110 | 7640125697865 | 7640125697896 |
Measuring range (mm) | 0-25 | 25-60 | 60-95 | 95-130 | 120-155 |
Max. error MPEյ (µm) | 3 ² | 4 ² | 5 ² | 6 ² | 7 ² |
Repeatability (µm) | 1 ³ | 1 ³ | 1 ³ | 2 ³ | 2 ³ |
Anvils types | 0.75×6.5 | ||||

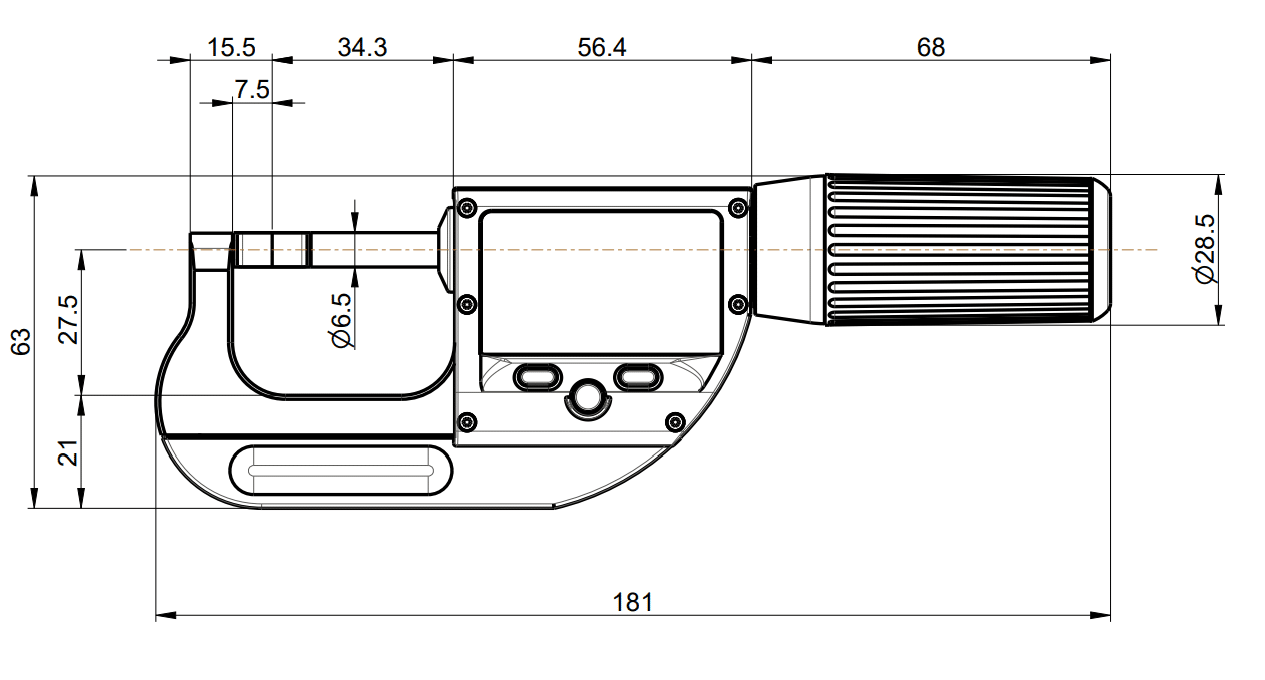

A (mm) | 34.3 | 70.3 | 106.3 | 140.3 | 165.3 |
B (mm) | 27.5 | 43 | 60 | 95 | 110 |
C (mm) | 68 | 74 | 74 | 74 | 74 |
D (mm) | 15.5 | 16.5 | 17.5 | 22.5 | 22.5 |
E (mm) | 63 | 86 | 106 | 151 | 169 |
F (mm) | 181 | 230 | 269 | 306 | 339 |
G (mm) | 7.2 | 9 | 9 | 9 | 9 |
Connection type (instrument to device) | Bluetooth® wireless technology ¹ | ||||
Protection rating according to IEC 60529 | IP67 even connected | ||||
Setting by PC | ⬤ | ||||
Adjustable measuring force | 5N / 10N | 10N | |||
Non-rotating spindle | ⬤ | ||||
Fast movement | ⬤ | ||||
Preset function | ⬤ | ||||
Smart Inductive System (SIS) | ⬤ |
¹ Device: PC, display unit, …
² according to DIN 863 / ISO 3611
³ ± 1 digit
Standard Delivery |
Instrument according to technical specifications |
Setting master 50 mm (for 903-060X) |
Setting master 75 mm (for 903-100X) |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
-
Measuring force adjustment
How to take care of your Sylvac instrument
-
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
