Professional micrometer S_Mike PRO Flat / Spherical

Starting at :
CHF 713.00

*Available in different measuring ranges

Description

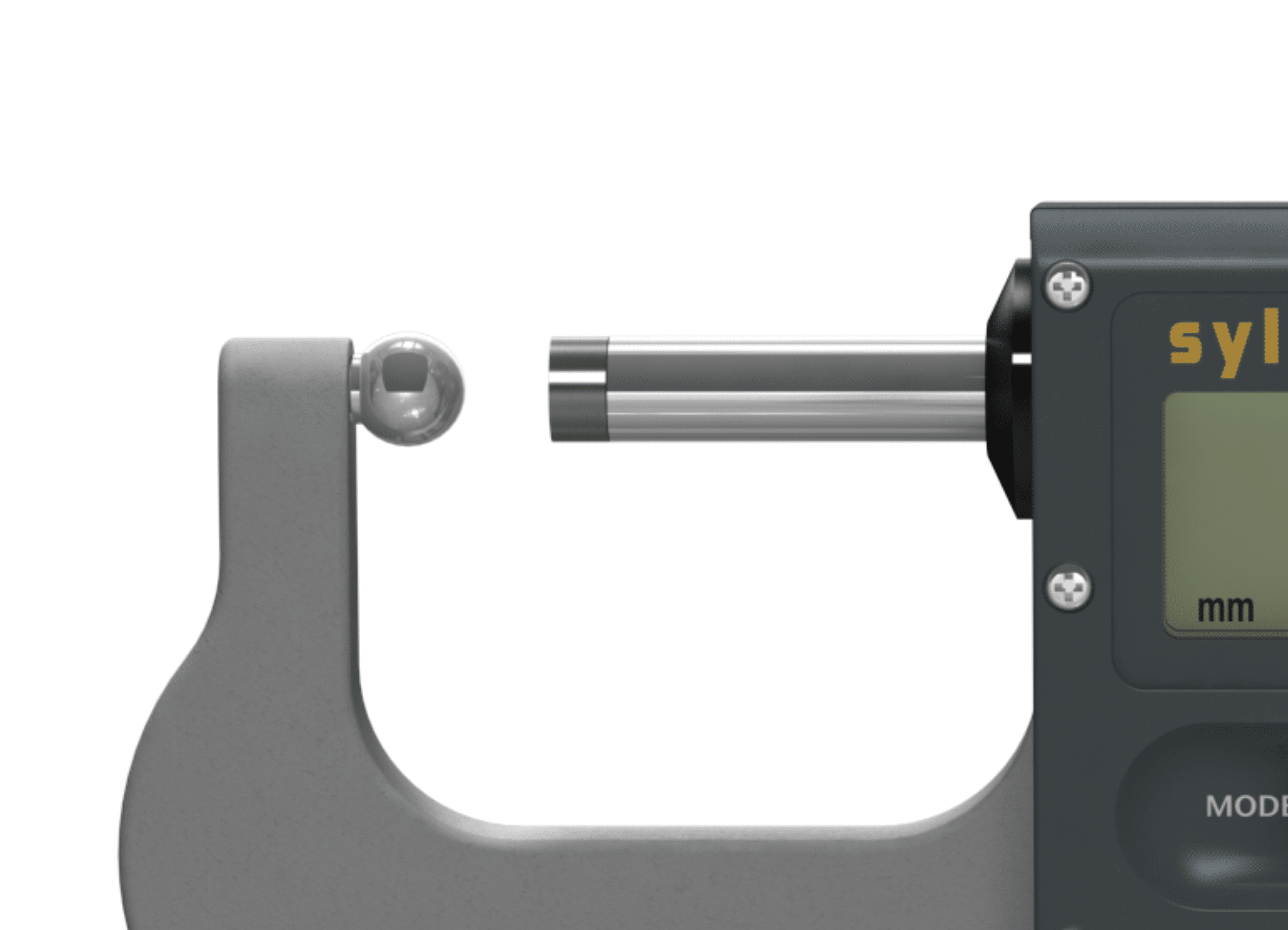

High-speed micrometer with non-rotating spindle. Ø 6.5mm flat and Ø7mm spherical anvils.
1um
Resolution: 1µm
Cable
Cable

Features

High-Speed and Accurate Measurements: This micrometer offers a 0-25mm measuring range, with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

Advanced Connectivity: Proximity data output, available in Bluetooth® version on request.

Stable, Reliable and Repeatable: System features a ratchet that cancels operator influence and a spherical anvil allowing a single contact point less sensitive to part positioning error. The system guarantees excellent and fast repeatability.

Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

Built to Last: Ø 6.5mm flat and Ø7mm spherical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.

Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N in one instrument.

Optional stand for easier parts handling.



Applications

icon-form-deviation
Form deviation
logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

803-0304
EAN 7640125711677
Measuring range (mm) 0-30
Max. Error MPEյ¹ (µm) 3
Repeatability² (µm) 1
Parallelism (µm) 1
Anvils types Ø6.5 flat and Ø7 spherical
Output data USB / RS 232 / Bluetooth® on demand
Prot. rating accor. to IEC 60529 IP67 even connected
Setting by PC
Adjustable measuring force 5N / 10N
Non-rotating spindle
Fast movement
Preset function
Smart Inductive Sensor

¹ according to DIN 863 / ISO 3611
² ± 1 digit

803-0304
EAN 7640125711677
Measuring range (mm) 0-30
Max. Error MPEյ¹ (µm) 3
Repeatability² (µm) 1
Parallelism (µm) 1
Anvils types Ø6.5 flat and Ø7 spherical
Output data USB / RS 232 / Bluetooth® on demand
Prot. rating accor. to IEC 60529 IP67 even connected
Setting by PC
Adjustable measuring force 5N / 10N
Non-rotating spindle
Fast movement
Preset function
Smart Inductive Sensor

¹ according to DIN 863 / ISO 3611
² ± 1 digit

Standard Delivery
Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Calibration certificate
Accessories
903-0330 Stand
985-2215 Battery CR2032

Not available

Professional micrometer S_Mike PRO Flat / Spherical
CHF 713.00
Scroll to Top

Request a demo

Professional micrometer S_Mike PRO Flat / Spherical

Contact us

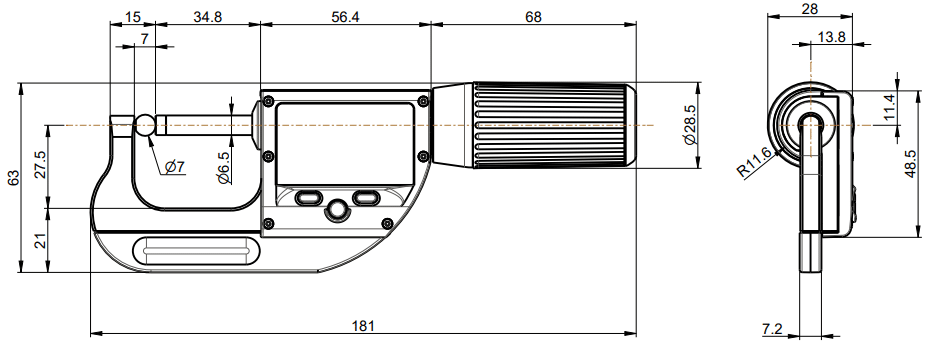

Download Technical Plan :Professional micrometer S_Mike PRO Flat / Spherical
