Professional micrometer S_Mike PRO Disc-shaped
Starting at :
CHF 868.00
*Available in different measuring ranges
Description
High-speed micrometer with non-rotating spindle with or without integrated Bluetooth® system. Ø 0.25mm Disk-shaped anvils
Features
• High-Speed and Accurate Measurements: This micrometer comes in 3 measuring ranges (0-30mm, 30-66mm, 66-102mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

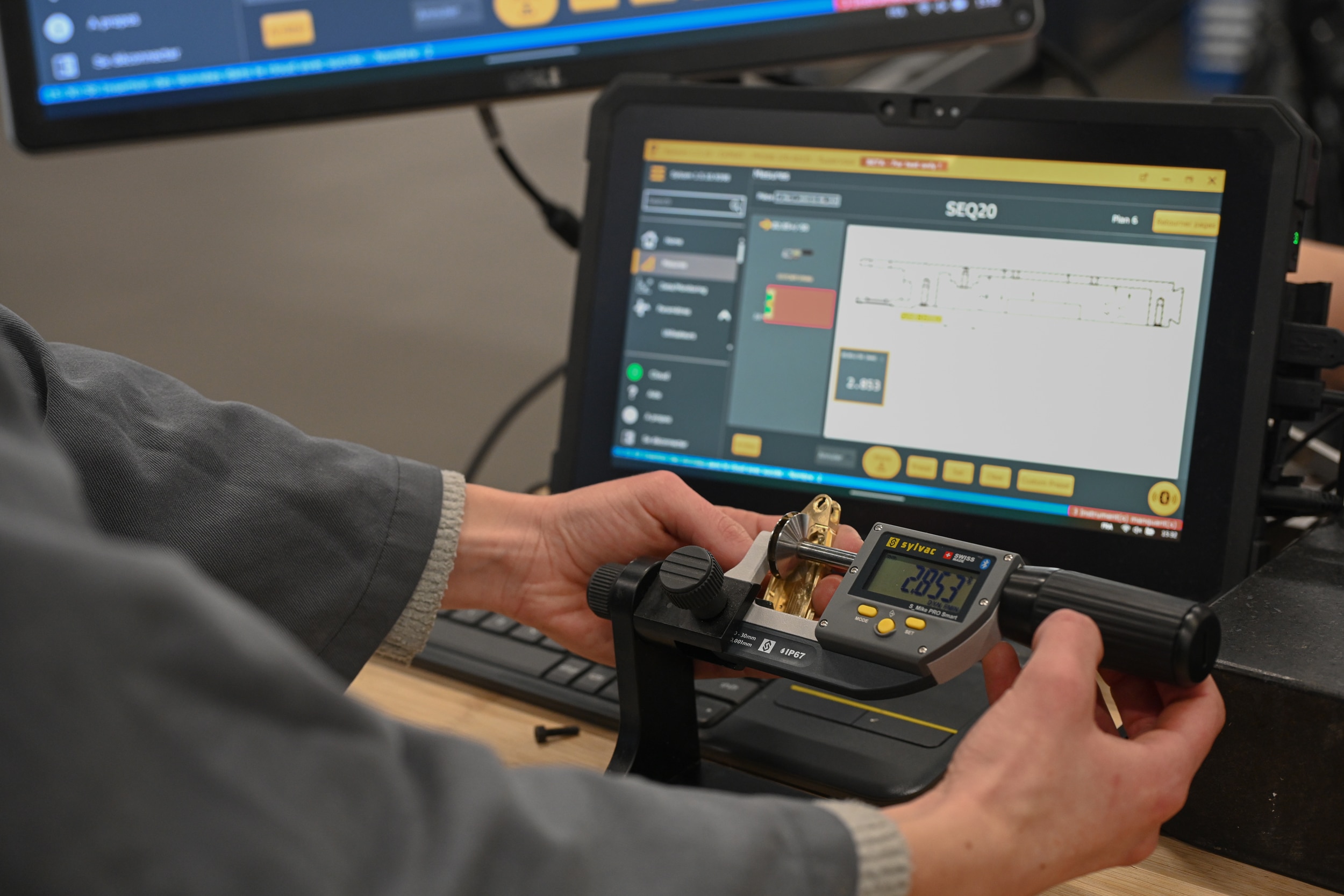

• Advanced Connectivity: This micrometer features an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors except for model 803-0303 that features a Proximity output.
• Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.
• Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

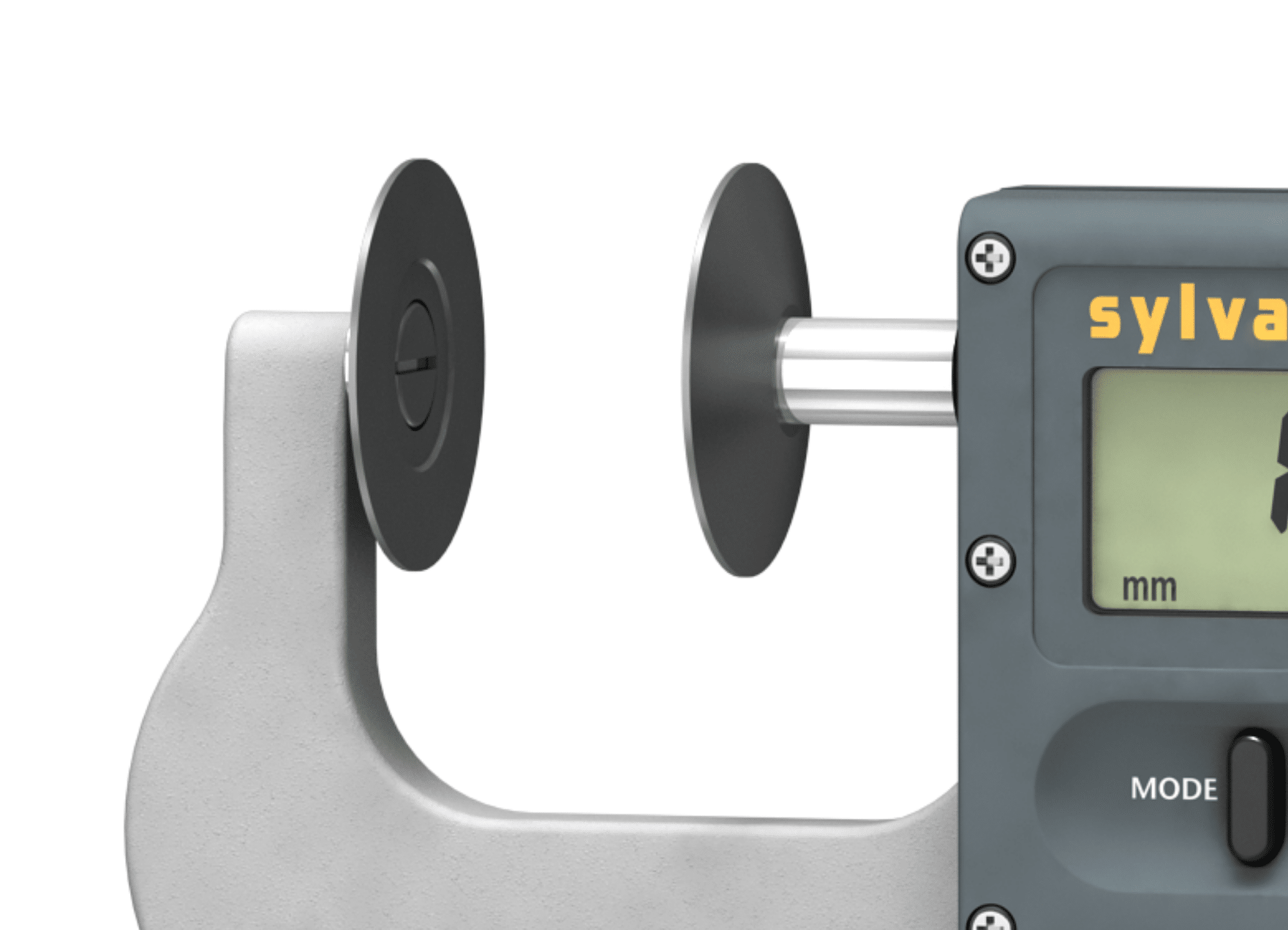

• Built to Last: Ø 0.25mm Disk-shaped anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.
• Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 803-030X) in one instrument.
Optional stand for easier parts handling.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
803-0303 | 803-0313 | 903-0613 | 903-1013 | |
EAN | 7640125717846 | 7640125690675 | 7640125690958 | 7640125690965 |
Measuring range (mm) | 0-30 | 0-30 | 30-66 | 66-102 |
Max. Error MPEյ¹ (µm) | 4 (full-touch-contact) / 10 (partial contact) |
5 (full-touch-contact) / 11 (partial contact) |
6 (full-touch-contact) / 12 (partial contact) |
|
Repeatability² (µm) | 1 | |||
Flatness (µm) | 2 | |||
Parallelism (µm) | 5 (full-touch-contact) / 10 (partial contact) |
6 (full-touch-contact) / 12 (partial contact) |
6 (full-touch-contact) / 12 (partial contact) |
|
Gear unit | Measurable module > 0.5 | |||
Anvils types | Ø25 | |||
Output data | USB / RS 232 | Bluetooth® wireless technology | ||
Prot. rating accor. to IEC 60529 | IP67 even connected | |||

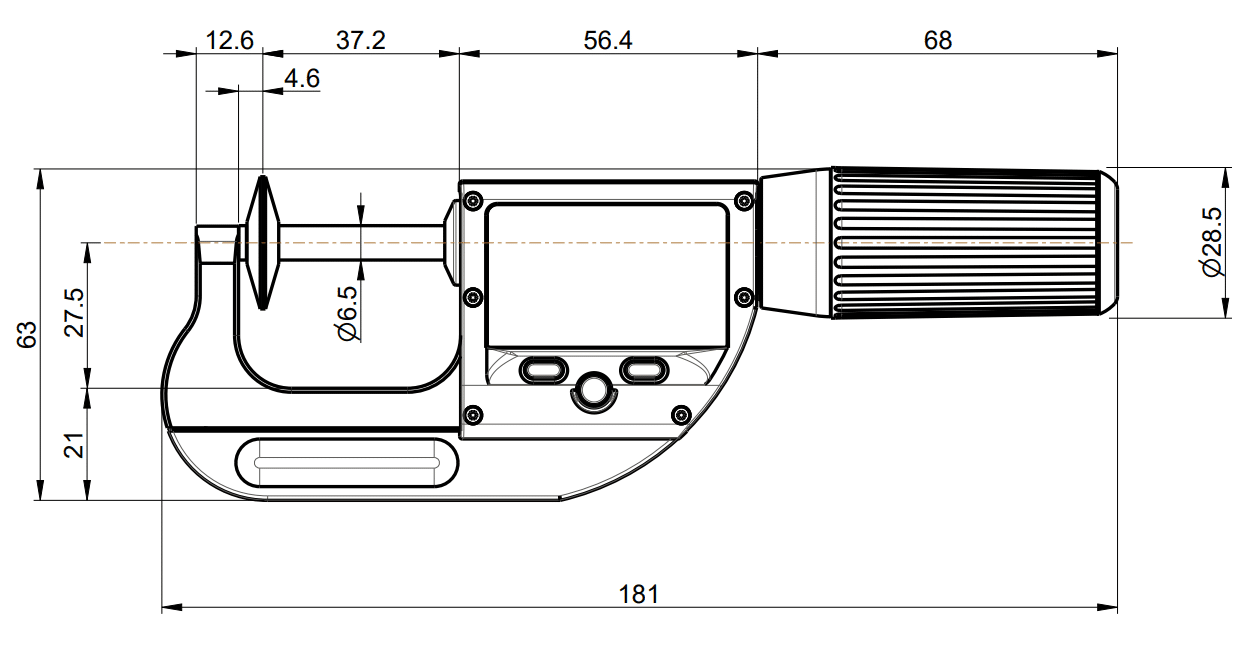

A | 37.3 | 37.3 | 73.3 | 109.3 |
B | 27.5 | 27.5 | 43 | 60 |
C | 68 | 68 | 74 | 74 |
D | 12.5 | 12.5 | 13.5 | 14.5 |
E | 63 | 63 | 86 | 106 |
F | 181 | 181 | 230 | 269 |
G | 7.2 | 7.2 | 9 | 9 |
Setting by PC | ⬤ | |||
Measuring force | 5N | |||
Non-rotating spindle | ⬤ | |||
Fast movement | ⬤ | |||
Preset function | ⬤ | |||
Smart Inductive Sensor | ⬤ |
¹ according to DIN 863 / ISO 3611
² ± 1 digit
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
Accessories | ||
903-0330 | Stand | |
903-0620 | Setting master 50 mm | |
903-1020 | Setting master 75 mm | |
903-1620 | Setting master 125 mm | |
985-2215 | Battery CR2032 |
Not available
-
Measuring force adjustment
How to take care of your Sylvac instrument
-
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
