Professional micrometer S_Mike PRO Knife-shaped / Cone

Starting at :
CHF 910.00

*Available in different measuring ranges

Description

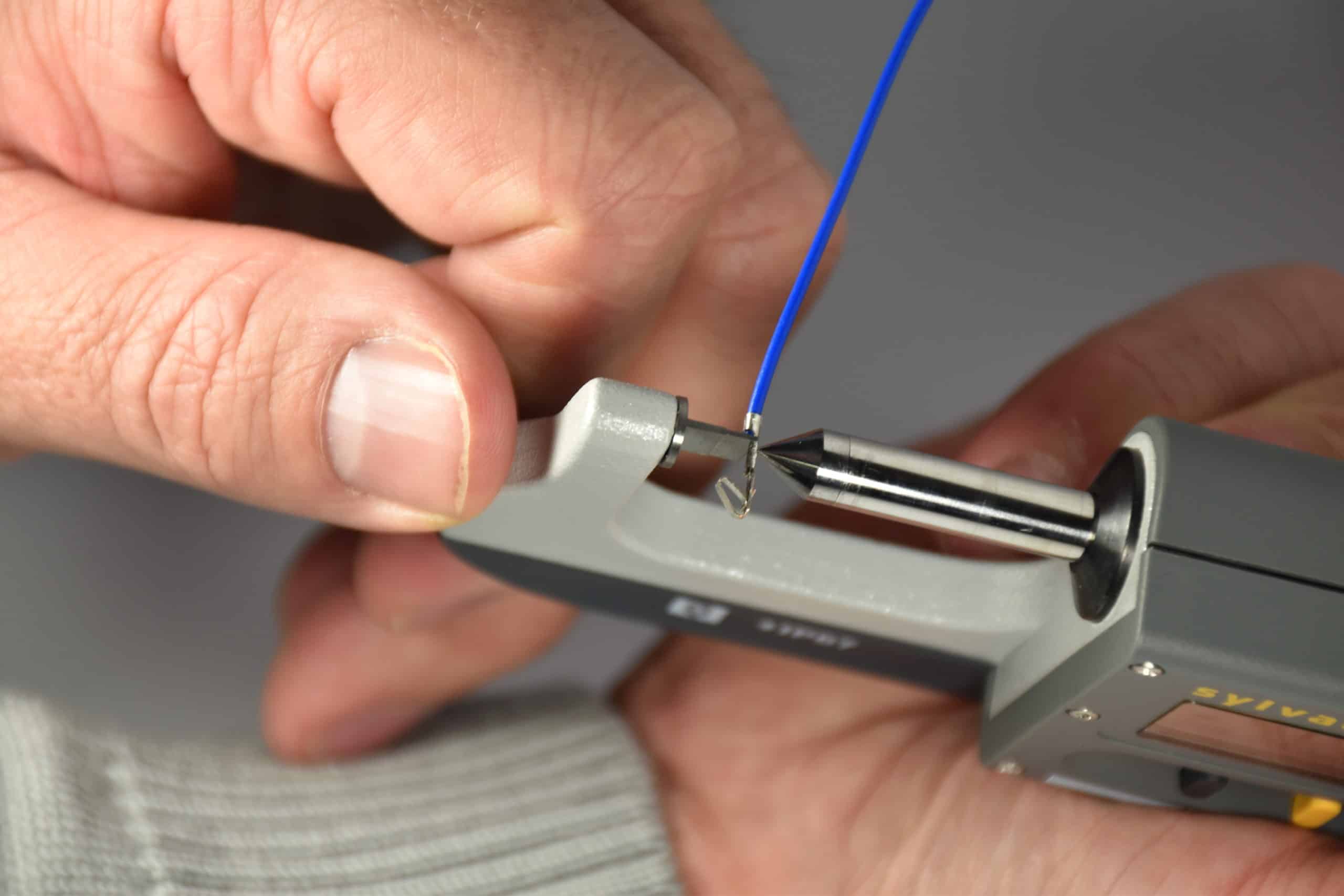

High-speed micrometer with non-rotating spindle with integrated Bluetooth® system. 0.5mm knife-shaped and 60°/Ø0.5mm cone anvils, special application for cable crimping.
1um
Resolution: 1µm

Features

High-Speed and Accurate Measurements: This micrometer offers a 0-25mm measuring range, with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

Advanced Connectivity: This micrometer features an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors

Stable, Reliable and Repeatable: System features a ratchet that cancels operator influence and a cone-shaped anvil allowing an efficient measurement of small internal geometries (e.g : eletrical connectors). The system guarantees excellent and fast repeatability.

Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

Built to Last: 0.5mm knife-shaped and 60°/Ø0.5mm cone anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.

Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N in one instrument.

Optional stand for easier parts handling.



Applications

icon-diameter
Diameter
icon-form-deviation
Form deviation
logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

803-0309
EAN 7640125718683
Measuring range (mm) 0-25
Max. Error MPEյ¹ (µm) 3
Repeatability² (µm) 1
Anvils types Knife 0.5mm – cone 60°/Ø0.5mm
Output data Bluetooth® wireless technology
Prot. rating accor. to IEC 60529 IP67 even connected
Setting by PC
Adjustable measuring force 5N / 10N
Non-rotating spindle
Fast movement
Preset function
Smart Inductive Sensor

¹ according to DIN 863 / ISO 3611
² ± 1 digit

803-0309
EAN 7640125718683
Measuring range (mm) 0-25
Max. Error MPEյ¹ (µm) 3
Repeatability² (µm) 1
Anvils types Knife 0.5mm – cone 60°/Ø0.5mm
Output data Bluetooth® wireless technology
Prot. rating accor. to IEC 60529 IP67 even connected
Setting by PC
Adjustable measuring force 5N / 10N
Non-rotating spindle
Fast movement
Preset function
Smart Inductive Sensor

¹ according to DIN 863 / ISO 3611
² ± 1 digit

Standard Delivery
Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Calibration certificate
Professional micrometer S_Mike PRO Knife-shaped / Cone
CHF 910.00
Scroll to Top

Request a demo

Professional micrometer S_Mike PRO Knife-shaped / Cone

Contact us

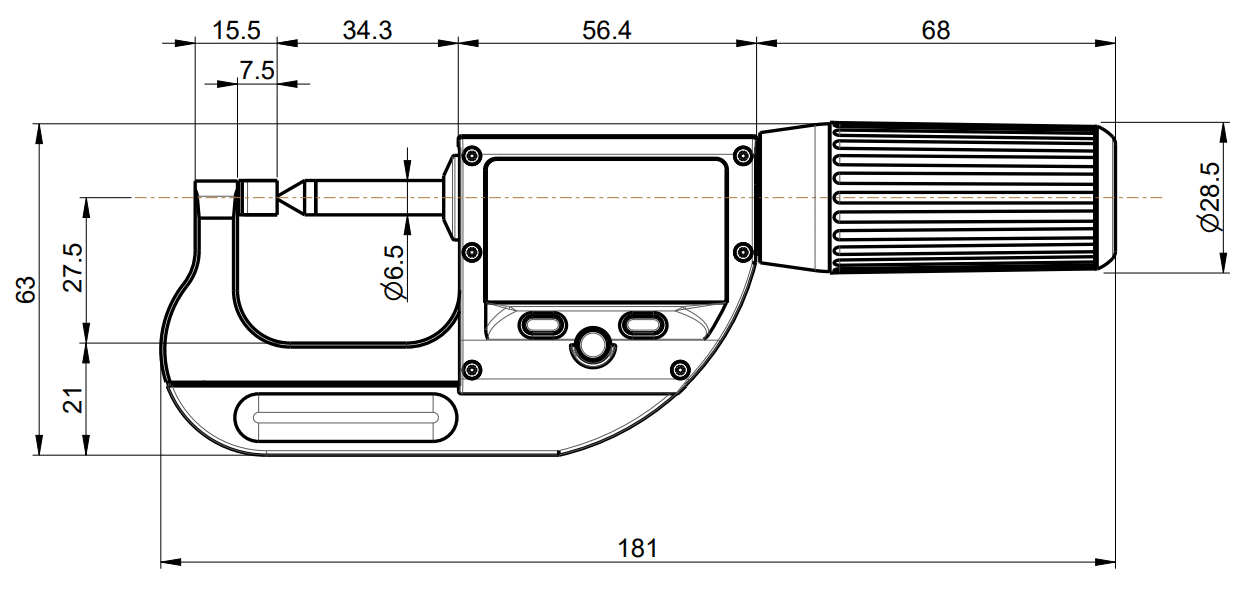

Download Technical Plan :Professional micrometer S_Mike PRO Knife-shaped / Cone
