Inductive measuring probes
Starting at :
CHF 410.00
*Available in different measuring ranges
Description

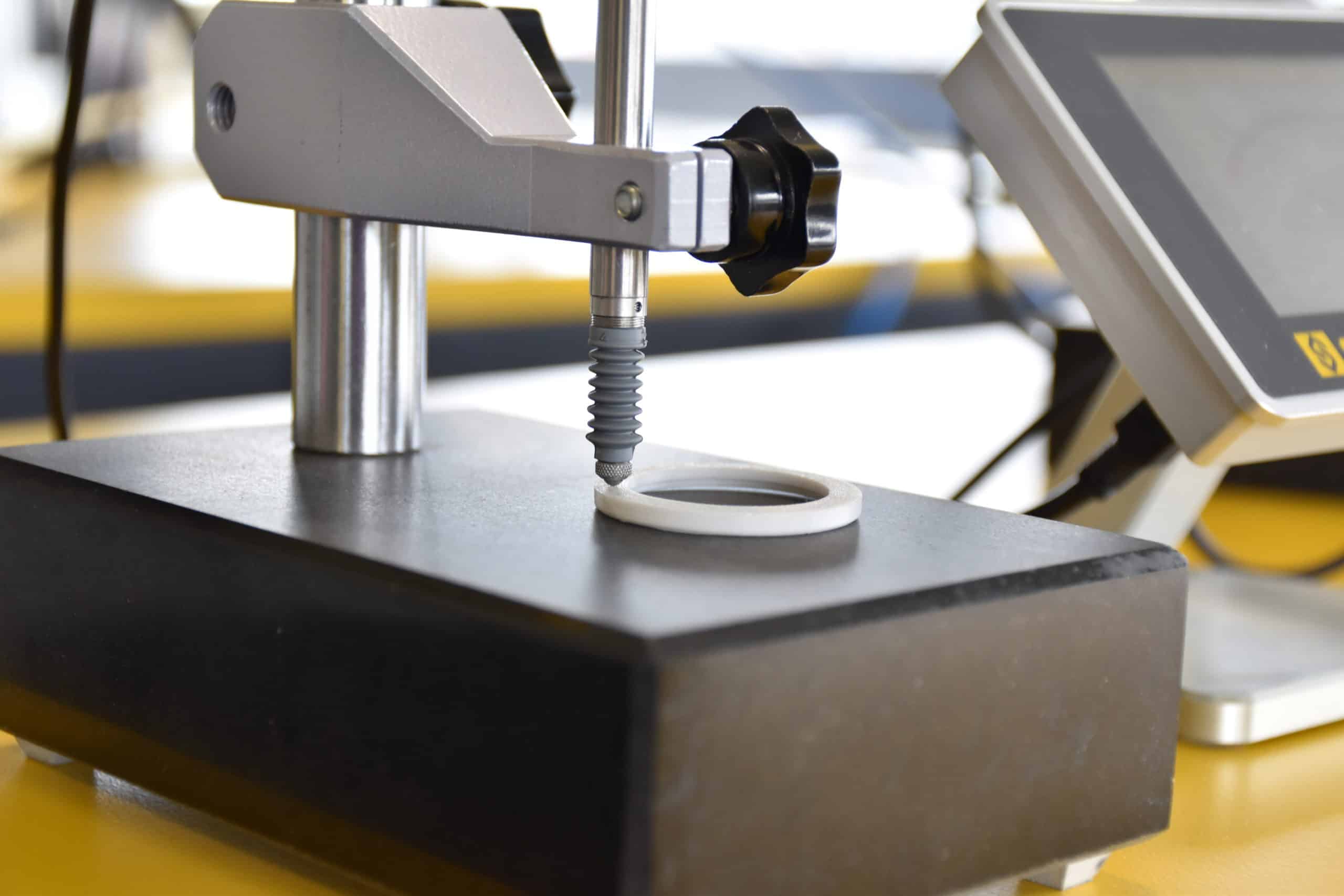

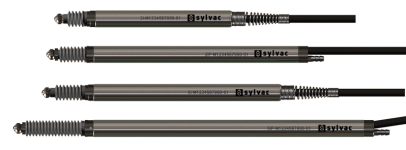

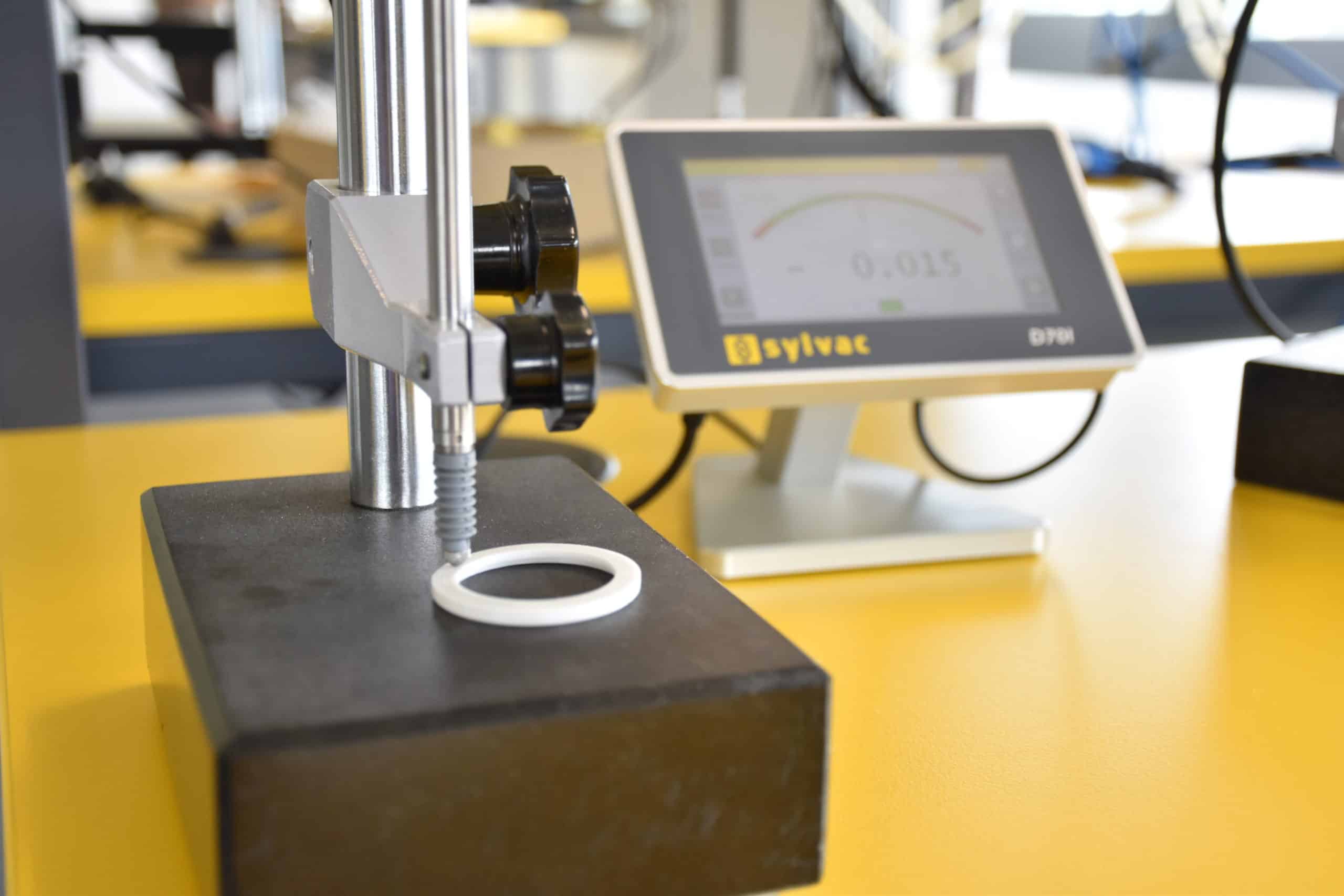

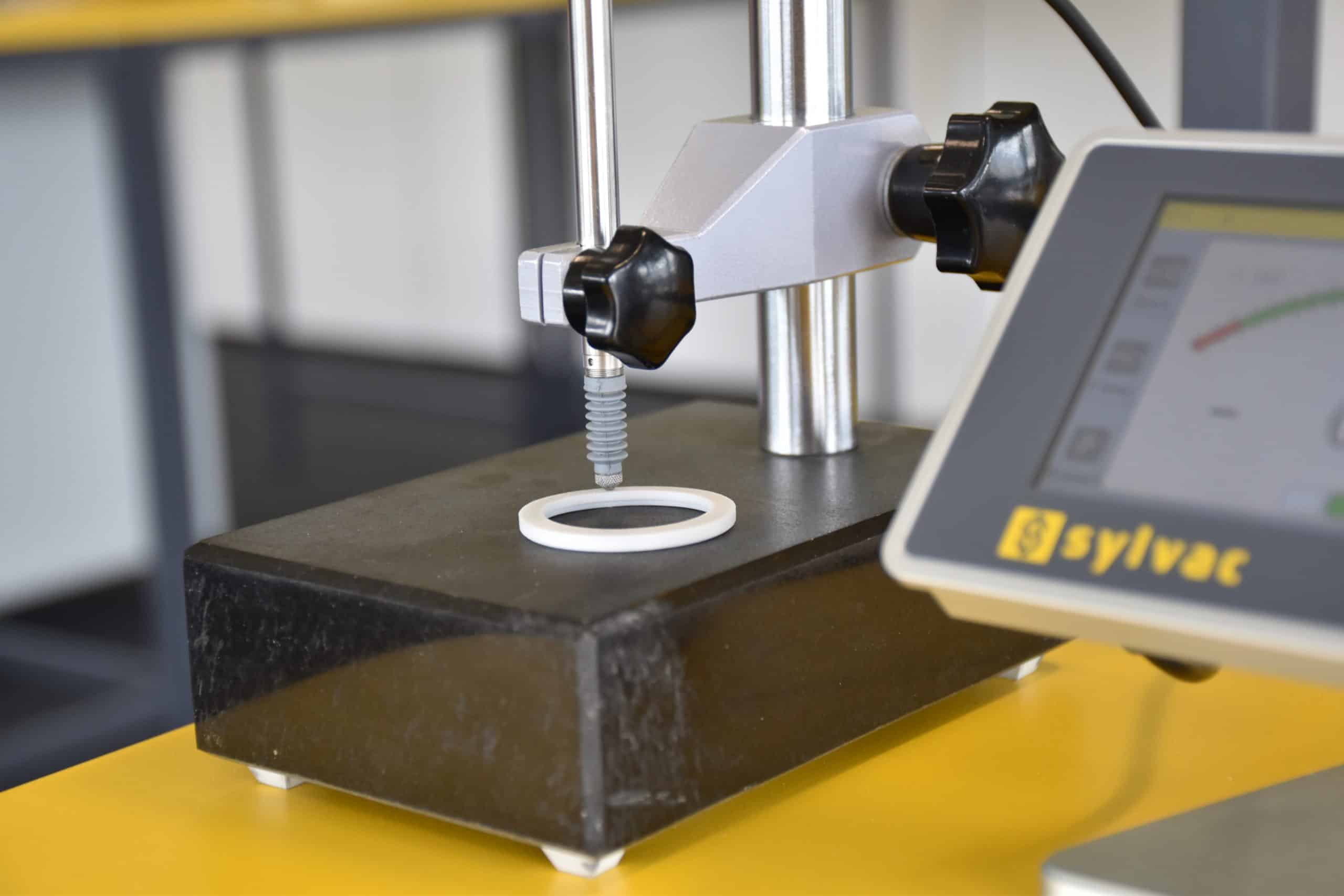

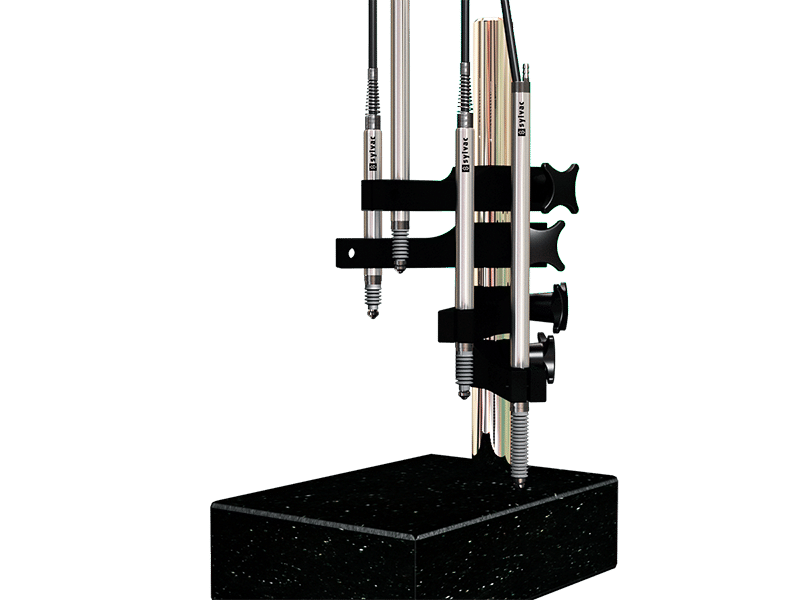

Pencil-type Inductive probe.
0.1µm
Cable
Features
- Comparison Measurements: Specially designed for accurate measurement by comparison, our pencil-type inductive probes ensure precise and reliable results.
- Tailored to Your Needs: Choose from versatile versions – spring push and pneumatic push – for customized measurement solutions.
- High Accuracy and Resolution: Experience exceptional repeatability of 0.15 µm and high-resolution measurements up to 0.0001 mm (0.1 µm) for precise and detailed data analysis.
- Built to last: Benefit from a durable stainless steel body featuring a Ø 8 h6 clamping stem, a long-life precision bearing guidance tested up to 13 million cycles and IP65 protection.
- Seamless Integration and Compatibility: Easily integrate our probes with D300SV2, D70i, and D400S units through M-Bus multiplexer units, expanding your measurement capabilities.
- Efficient and Versatile Operation: Enjoy high-speed data transfer (up to 3900 values per second), an operating temperature range of +10 to +80°C and a measuring range of +/- 2 mm or +/- 5 mm.
Applications
Form deviation
Distance
Industries
Automotive
Electronics
Machine tool
Medical device
Watch making
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 900-1101 | 900-1102 | 900-1111 | 900-1112 | |

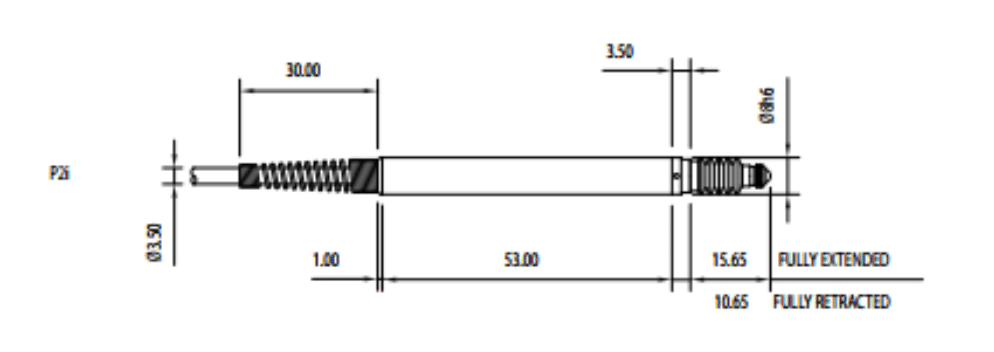

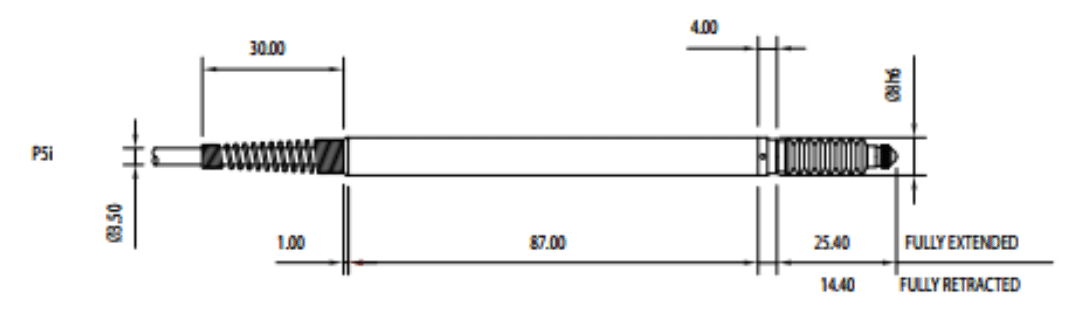

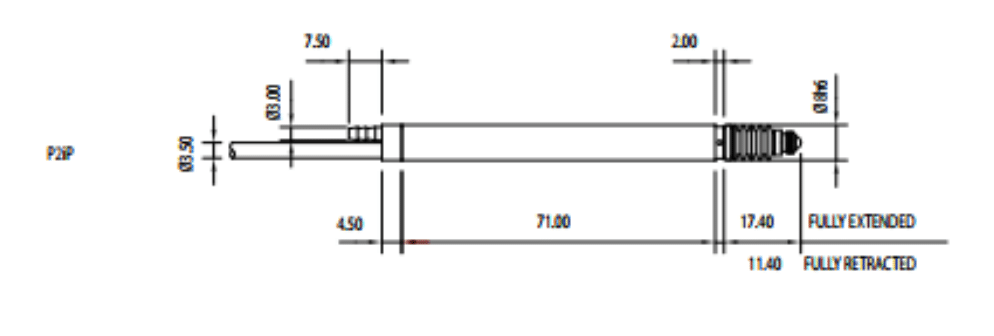

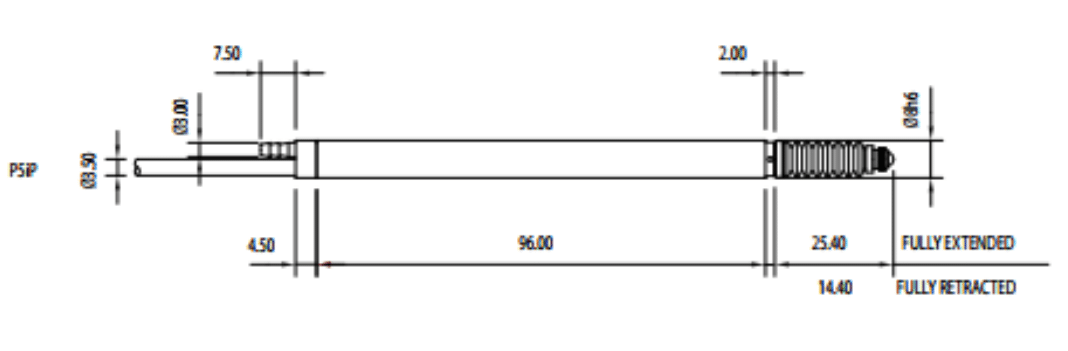

| Type | P2i | P2iP | P5i | P5iP |
| EAN | 7640125680119 | 7640125681659 | 7640125684834 | 7640125684865 |
| Travel (mm) | ±2 | ±2 | ±5 | ±5 |
| Pre-travel (mm) | 0.15 | 0.8 | 0.15 | 0.3 |
| Post-travel (mm) | 1.35 | 1.2 | 0.85 | 0.7 |
| Resolution | Digital : user selectable to <0.1µm | |||
| Repeatability (µm) | 0.15 | 0.15 | 0.15 | 0.15 |
| Moving mass (g) | 3.4 | 3.4 | 3.7 | 3.7 |
| Accuracy of reading (%) | 0.5 | 0.5 | 0.5 | 0.5 |
| Body diameter (mm) | 8h6 | |||
| IP rating | IP65 | |||
| Temperature (%FS/°C) | 0.01 | |||
| Measuring force ¹ (N) | 0.7 | 0.7 / 0.4 bar – 2.6 / 1 bar | 0.7 | 0.7 / 0.4 bar – 2.6 / 1 bar |
¹ Tolerance ± 20%, measuring probe in middle course, outgoing spindle.
Spécifications
| 900-1101 | 900-1102 | 900-1111 | 900-1112 | |
| Type | P2i | P2iP | P5i | P5iP |
| EAN | 7640125680119 | 7640125681659 | 7640125684834 | 7640125684865 |
| Travel (mm) | ±2 | ±2 | ±5 | ±5 |
| Pre-travel (mm) | 0.15 | 0.8 | 0.15 | 0.3 |
| Post-travel (mm) | 1.35 | 1.2 | 0.85 | 0.7 |
| Resolution | Digital : user selectable to <0.1µm | |||
| Repeatability (µm) | 0.15 | 0.15 | 0.15 | 0.15 |
| Moving mass (g) | 3.4 | 3.4 | 3.7 | 3.7 |
| Accuracy of reading (%) | 0.5 | 0.5 | 0.5 | 0.5 |
| Body diameter (mm) | 8h6 | |||
| IP rating | IP65 | |||
| Temperature (%FS/°C) | 0.01 | |||
| Measuring force ¹ (N) | 0.7 | 0.7 / 0.4 bar – 2.6 / 1 bar | 0.7 | 0.7 / 0.4 bar – 2.6 / 1 bar |
¹ Tolerance ± 20%, measuring probe in middle course, outgoing spindle.
Standard Delivery
| Standard Delivery |
| Probe according to technical specifications |
| Cable 2 m |
| Stainless steel contact point with tungsten carbide ball Ø 3 mm (905-2204) |
| Calibration certificate |
Accessories
| Accessories | ||
 |
901-5110 | Bridle 90° |
 |
905-2225 | Plastic lifting ring (bottom) |
| 905-2224 | Plastic lifting lever (bottom) | |
 |
905-2231 | Sleeve Ø8 –>10mm with locking screw |
 |
905-2231 | Adapting socket + screw |
