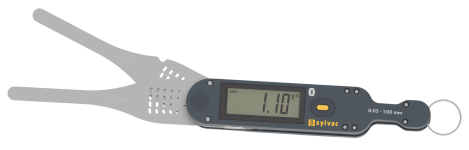

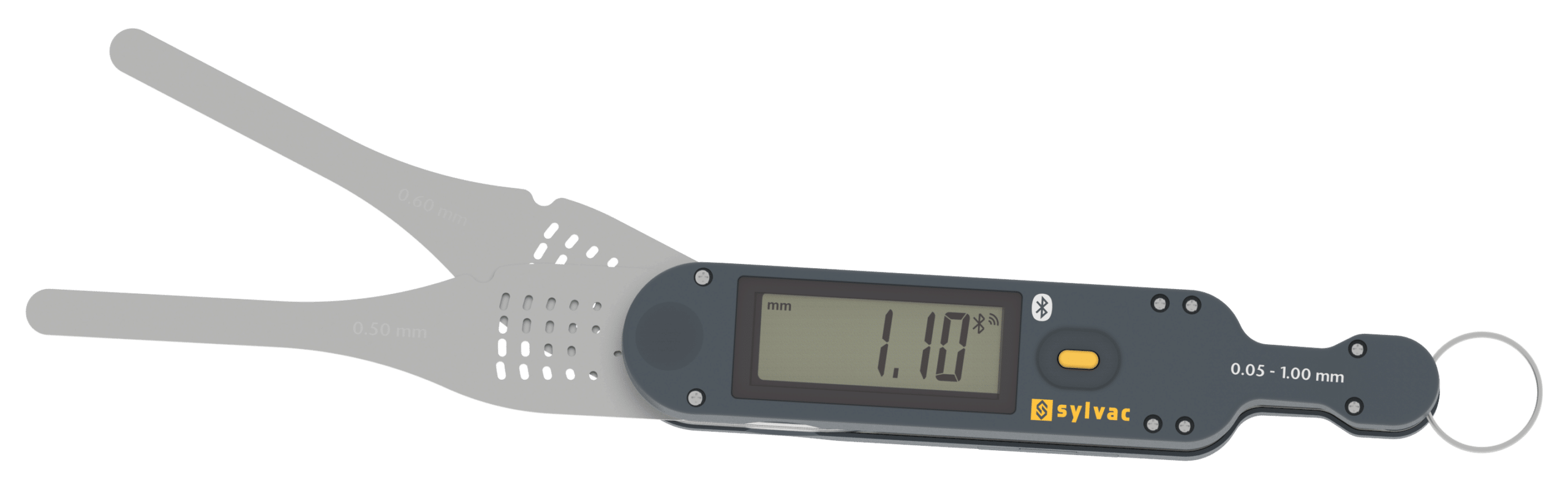

    Digital thickness gage Feeler Gage Smart

    Starting at :
    CHF 612.00

    *Available in different measuring ranges

    Description

    Digital feeler Gage with integrated Bluetooth® technology.
    SIS
    Smart Inductive System (SIS)
    MicrosoftTeams-image (5)
    Swiss made

    Features

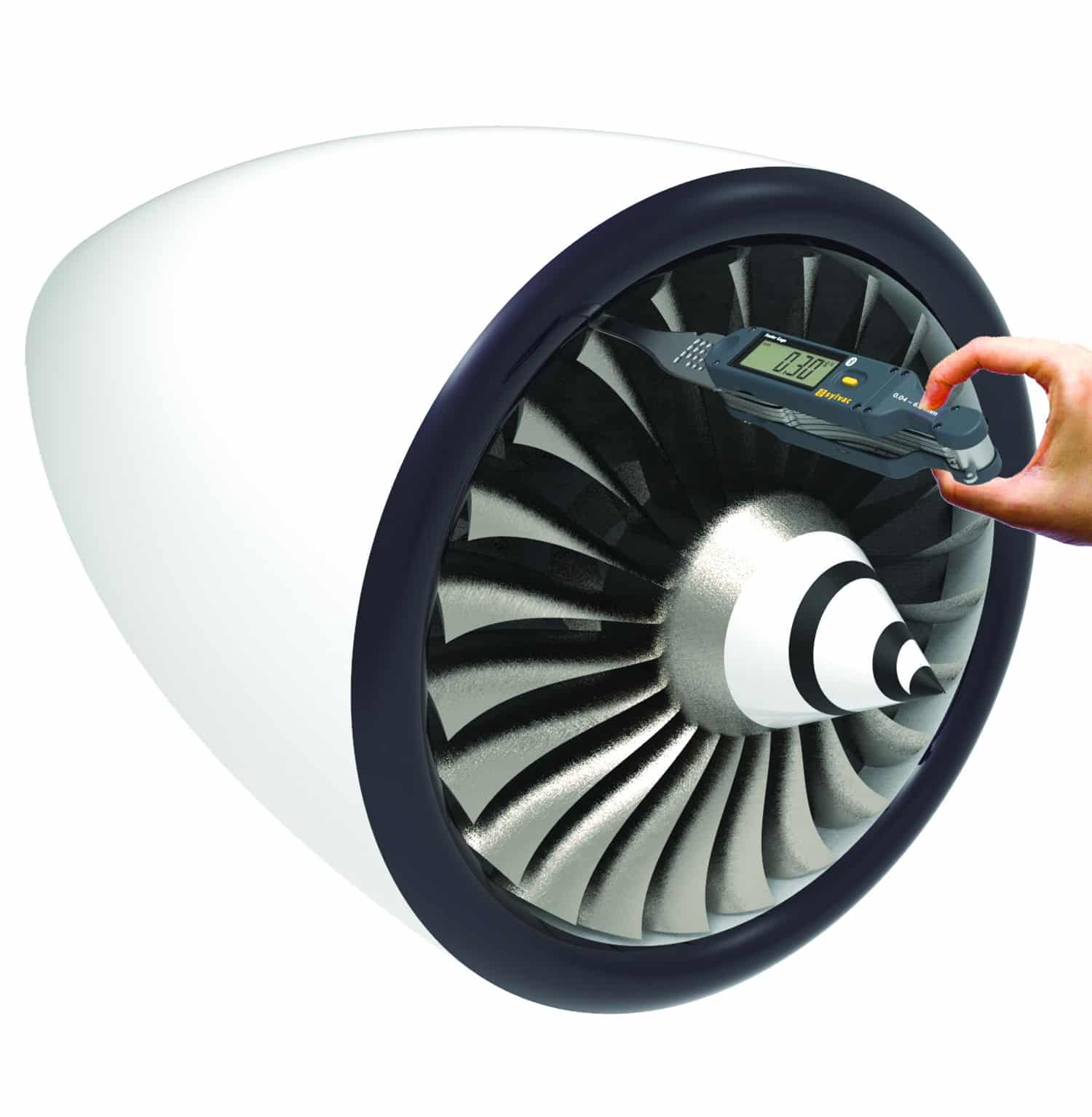

    • Convenient and efficient : designed to set or measure a gap between two small parts, our gauge uniquely calculates and displays the stacking value of all feelers removed from the case, on a large digital display.
    • Time-saving: With the digital display and calculation, users can quickly and easily read the measurement results without having to manually add up the thickness of each individual feeler.
    • Improved accuracy: The digital display ensures accurate and dependable measurements every time, with an accuracy of feeler thickness according to DIN 2275: 2014-03 class TC1. This is especially important for sensitive applications in the aerospace, automotive, and defense industries where errors are not an option.

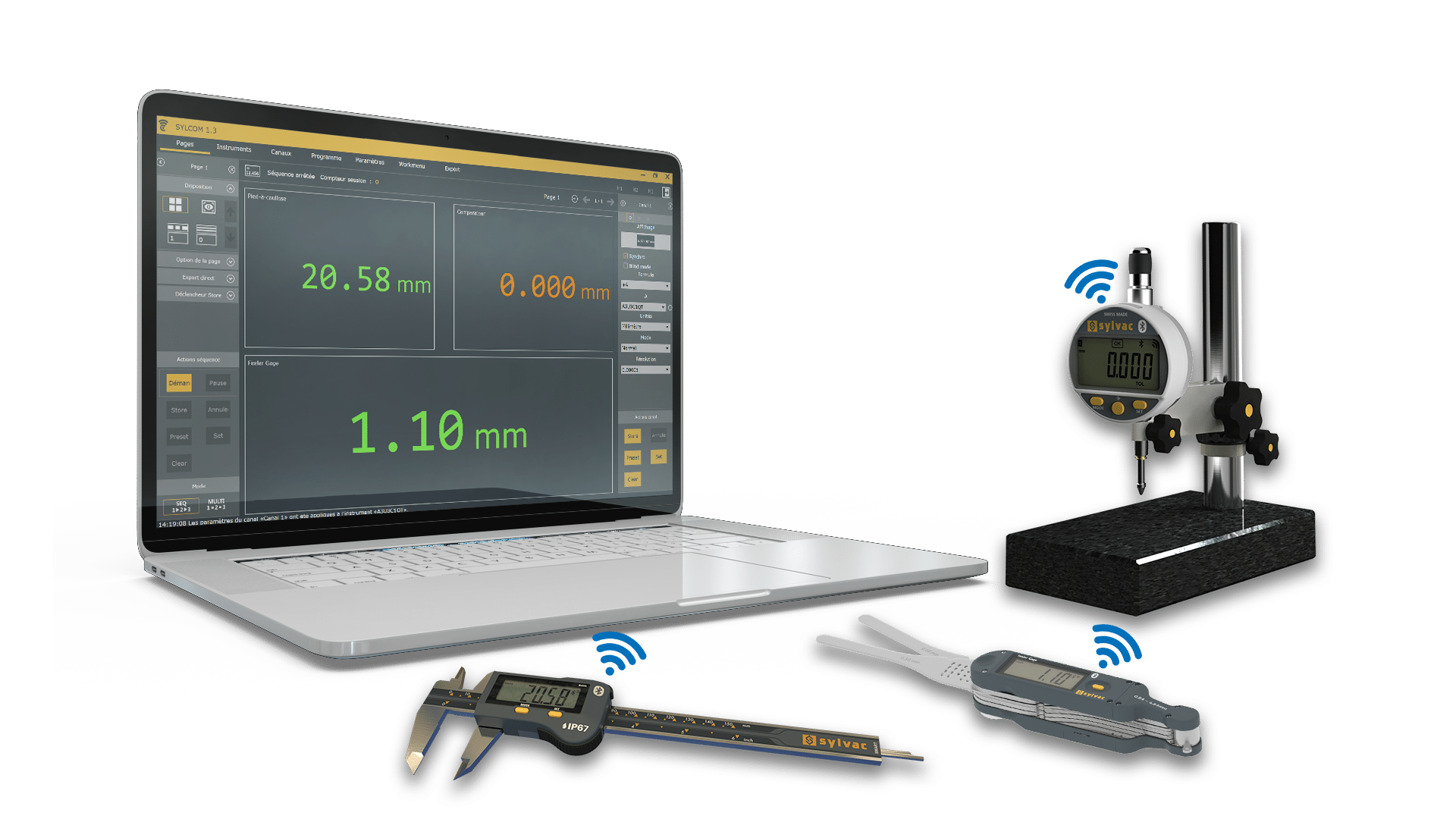

    • Easy data transfer: The integrated Bluetooth® system allows users to transfer measurement data quickly and easily with just one push of a button with no software, driver or dongle when using HID.
    • Ergonomic design: Align the blades easily with a one-handed motion.

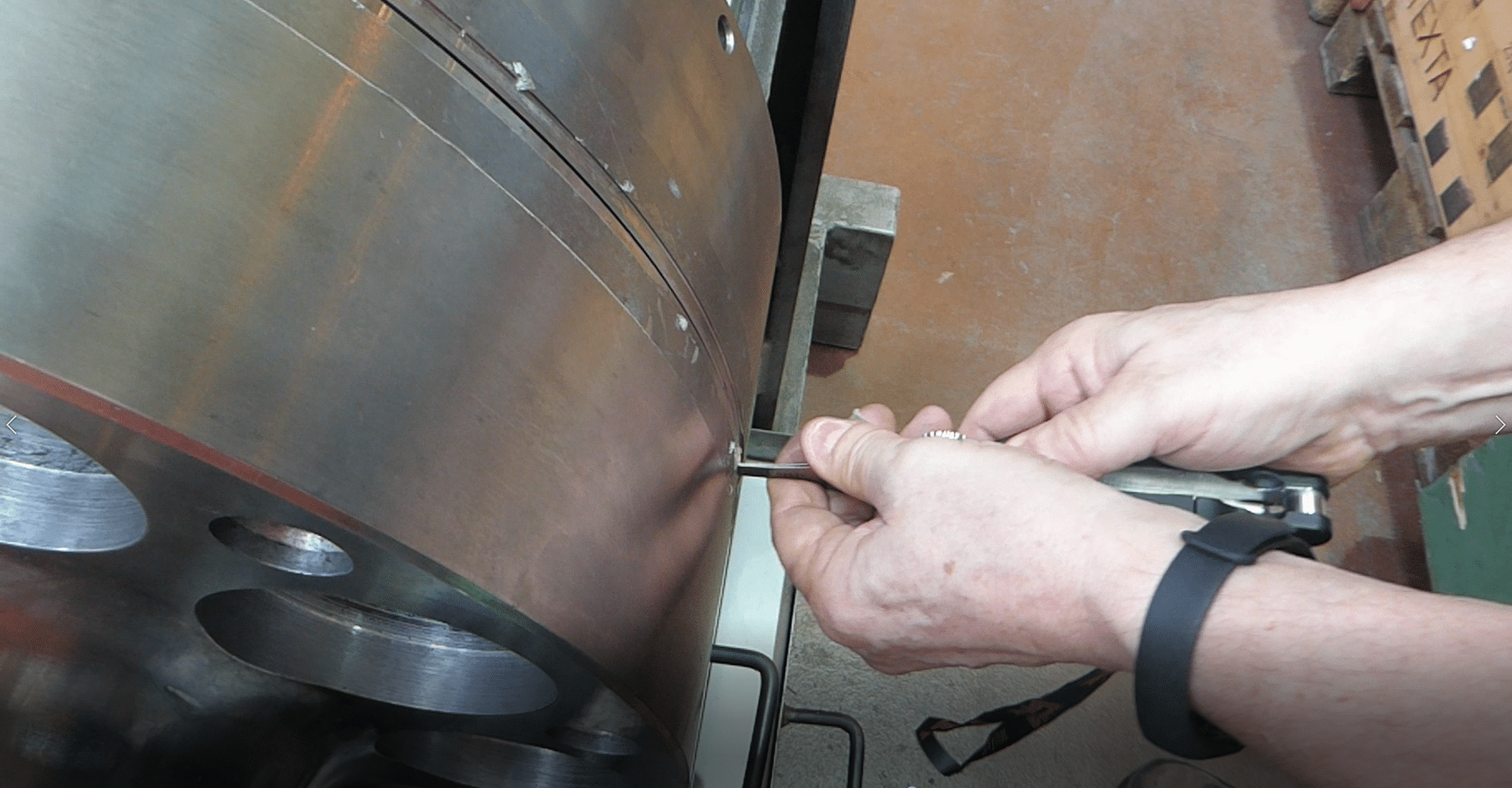

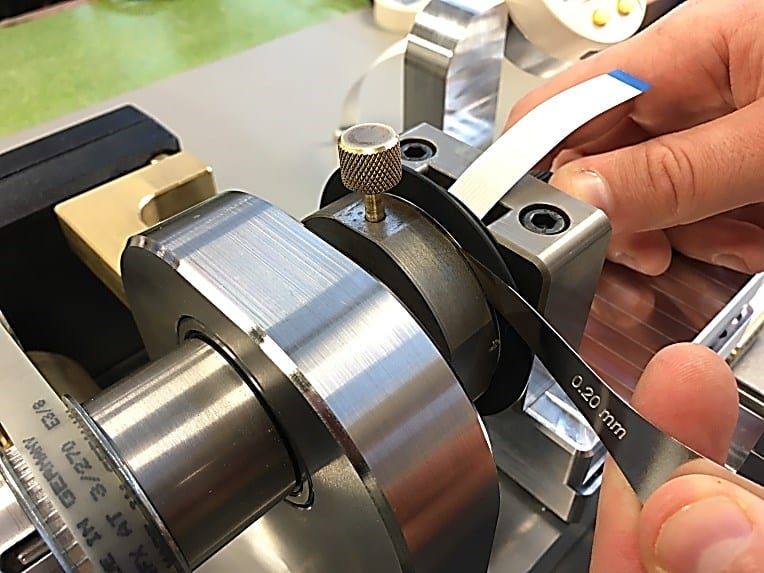

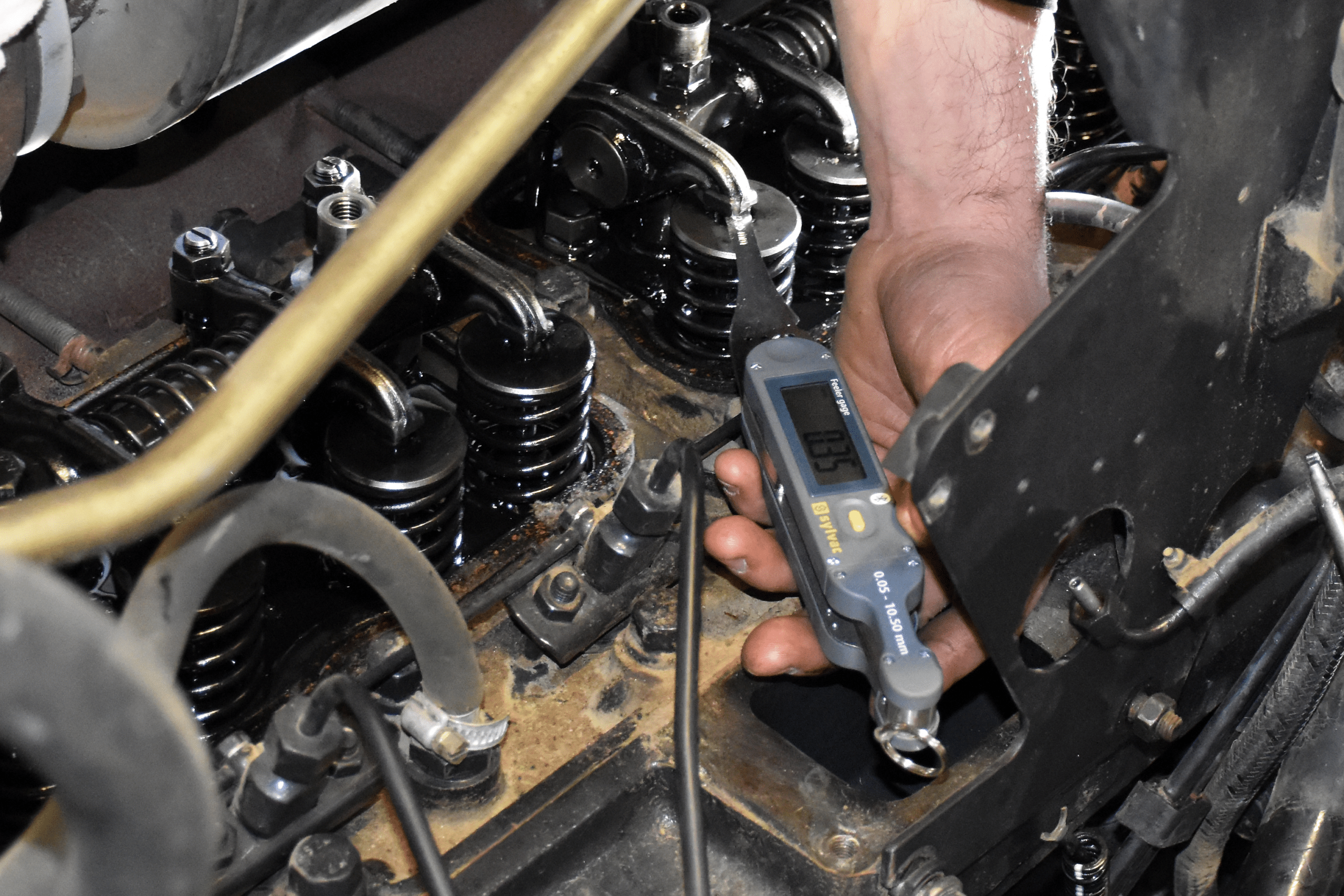

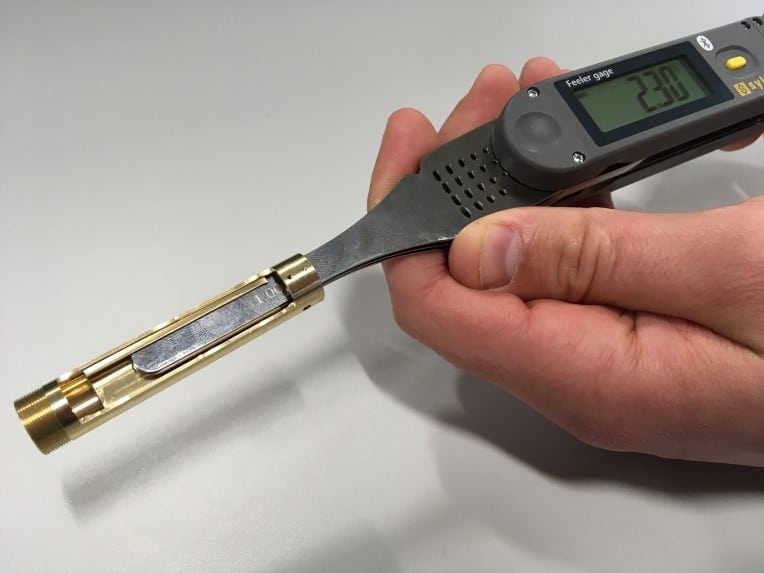

    Applications

    icon-form-deviation
    Form deviation
    logicielsDistance
    Distance

    Industries

    icon-automotive-sylvac
    Automotive
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool

    Overview

    921-0100 921-0110 921-0114
    EAN 7640125699968 7640125699951 7640125699944
    Type of version mm inch
    Measurement capacity (mm/in) 0.05…1.00 mm 0.04…1.00 mm 0.0020…0.0310 in
    Feelers thickness (mm) 0.05, 0.10, 0.15, 0.20, 0.25,
    0.30, 0.35, 0.40, 0.45, 0.50,
    0.55, 0.60, 0.65, 0.70, 0.75,
    0.80, 0.85, 0.90, 0.95, 1.00
    0.04, 0.05, 0.06, 0.07, 0.08,
    0.09, 0.10, 0.15, 0.20, 0.25,
    0.30, 0.35, 0.40, 0.50, 0.60,
    0.70, 0.80, 0.90, 1.00
    0.0020, 0.0030, 0.0040, 0.0050,
    0.0060, 0.0070, 0.0080, 0.0090,
    0.0100, 0.0120, 0.0150, 0.0200,
    0.0250, 0.0310
    Total feelers thickness (mm/in) 10.5 mm 6.64 mm 0.157 in
    Usable length (mm) 99
    Thickness Tolerance Class according to DIN 2275 TC1
    Protection rating according to IEC 529 IP65
    Output data Bluetooth® wireless technology
    Number of feelers 20 19 14
    Weigth (g) 280 224 212
    Functions Unit (mm/inch)

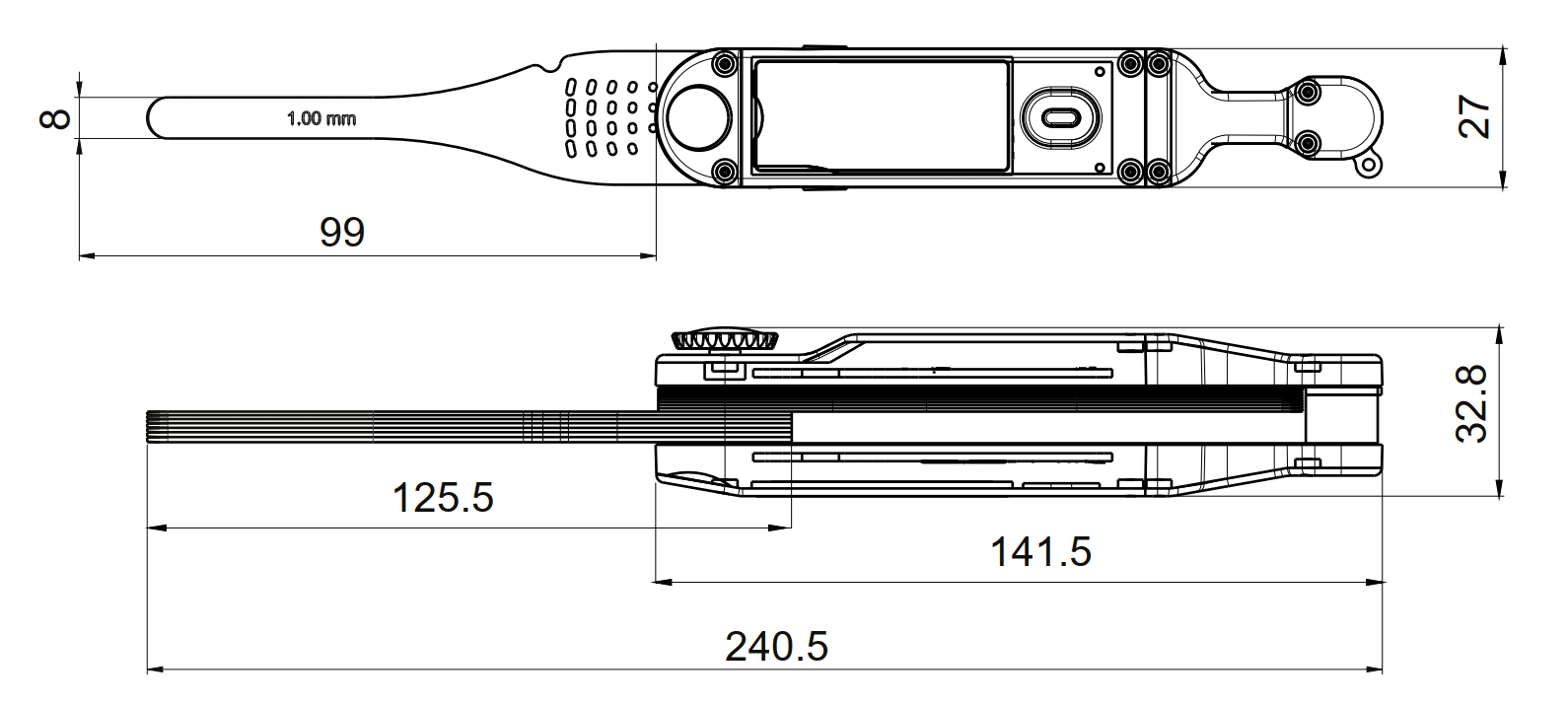

    Model 921-0100
    The thickness may differ slightly for the other models according to the number of gages.

    921-0100 921-0110 921-0114
    EAN 7640125699968 7640125699951 7640125699944
    Type of version mm inch
    Measurement capacity (mm/in) 0.05…1.00 mm 0.04…1.00 mm 0.0020…0.0310 in
    Feelers thickness (mm) 0.05, 0.10, 0.15, 0.20, 0.25,
    0.30, 0.35, 0.40, 0.45, 0.50,
    0.55, 0.60, 0.65, 0.70, 0.75,
    0.80, 0.85, 0.90, 0.95, 1.00
    0.04, 0.05, 0.06, 0.07, 0.08,
    0.09, 0.10, 0.15, 0.20, 0.25,
    0.30, 0.35, 0.40, 0.50, 0.60,
    0.70, 0.80, 0.90, 1.00
    0.0020, 0.0030, 0.0040, 0.0050,
    0.0060, 0.0070, 0.0080, 0.0090,
    0.0100, 0.0120, 0.0150, 0.0200,
    0.0250, 0.0310
    Total feelers thickness (mm/in) 10.5 mm 6.64 mm 0.157 in
    Usable length (mm) 99
    Thickness Tolerance Class according to DIN 2275 TC1
    Protection rating according to IEC 529 IP65
    Output data Bluetooth® wireless technology
    Number of feelers 20 19 14
    Weigth (g) 280 224 212
    Functions Unit (mm/inch)

    Model 921-0100
    The thickness may differ slightly for the other models according to the number of gages.

    Standard Delivery
    Instrument according to technical specifications
    Lithium battery CR2032 included
    Instruction manual
    Lanyard

    Replacement Feelers

    For model 921-0100

    Metric Feeler Gage/0.05…1.00mm/20 blades

    Thickness
    (mm)
    Thickness
    (mm)
    921-1001 0.05 ±0.004
    921-1006 0.10 ±0.005
    921-1007 0.15 ±0.006
    921-1008 0.20 ±0.006
    921-1009 0.25 ±0.007
    921-1010 0.30 ±0.007
    921-1011 0.35 ±0.008
    921-1012 0.40 ±0.009
    921-1013 0.45 ±0.009
    921-1014 0.50 ±0.010
    921-1015 0.55 ±0.011
    921-1016 0.60 ±0.011
    921-1017 0.65 ±0.012
    921-1018 0.70 ±0.012
    921-1019 0.75 ±0.013
    921-1020 0.80 ±0.014
    921-1021 0.85 ±0.014
    921-1022 0.90 ±0.015
    921-1023 0.95 ±0.016
    921-1024 1.00 ±0.017

    For model 921-0110

    Metric Feeler Gage/0.04…1.00mm/19 blades

    Thickness
    (mm)
    Thickness
    (mm)
    921-1000 0.04 ±0.004
    921-1001 0.05 ±0.004
    921-1002 0.06 ±0.004
    921-1003 0.07 ±0.004
    921-1004 0.08 ±0.004
    921-1005 0.09 ±0.004
    921-1006 0.10 ±0.005
    921-1007 0.15 ±0.006
    921-1008 0.20 ±0.006
    921-1009 0.25 ±0.007
    921-1010 0.30 ±0.007
    921-1011 0.35 ±0.008
    921-1012 0.40 ±0.009
    921-1014 0.50 ±0.010
    921-1016 0.60 ±0.011
    921-1018 0.70 ±0.012
    921-1020 0.80 ±0.014
    921-1022 0.90 ±0.015
    921-1024 1.00 ±0.017

    For model 921-0114

    Imperial Feeler Gage/0.0020…0.0310in/14 blades

    Thickness
    (mm)
    Thickness
    (mm)
    921-1025 0.0020 ±0.004
    921-1026 0.0030 ±0.004
    921-1027 0.0040 ±0.004
    921-1028 0.0050 ±0.005
    921-1029 0.0060 ±0.005
    921-1030 0.0070 ±0.006
    921-1031 0.0080 ±0.006
    921-1032 0.0090 ±0.006
    921-1033 0.0100 ±0.006
    921-1034 0.0120 ±0.007
    921-1035 0.0150 ±0.008
    921-1036 0.0200 ±0.009
    921-1037 0.0250 ±0.011
    921-1038 0.0301 ±0.012



    Other accessories
    985-2215 Battery CR2032
    926-7022 S_Footswitch Smart
