Digital indicator testing stand M3
Description
Testing stand for dial gauges and test indicators.
* Available in different measuring ranges
Swiss made
Cable
Features
- Versatile Calibration Capabilities: Comprehensive solution for efficient calibration processes for dial gauges, test indicators, comparators, and lever indicators.
- Precise Adjustments and Flexibility: Choose from different measuring options with our set, featuring the M3 bench for vertical or horizontal use. Two versions are available: one with a capacitive touch probe and display unit for 10mm and 25mm measurements, and another with a precision dial gauge and integrated display for 25mm and 50mm measurements. These options offer precise adjustments according to the ABBE principle.
- Real-Time Monitoring for Accurate Results: Monitor instrument status in real-time during calibration. Our set provides a display that shows the instrument’s performance, allowing prompt detection of deviations. This proactive approach ensures accurate measurements and reduces the risk of instrument failure.
- Customized Certificates for Compliance: Create customized test certificates to comply with regulations and maintain proper documentation. These certificates help track and verify the calibration history of your instruments, ensuring regulatory compliance and accurate record-keeping.
- Increased Independence and Performance: By utilizing our calibration set, you gain independence from external calibration labs. Conducting periodic calibrations in-house saves time and reduces reliance on external services. This independence leads to better instrument performance and reliable measurements.
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| M3 kit with P25D M8 and D62S | M3 kit with P25D USB | M3 kit with S_Dial PRO 50 | |
| Reference | 809-1311 | 809-1312 | 809-1313 |
| EAN | 7640125710335 | 7640125710359 | 7640125710342 |
| Measuring range (mm) | 25 | 50 | |
| Max. error (µm) | 0.8 | 1.2 | |
| Connection type (master to device) | M8 ¹ View cables info |
USB ¹ View cables info |
Power to USB ¹ View cables info |

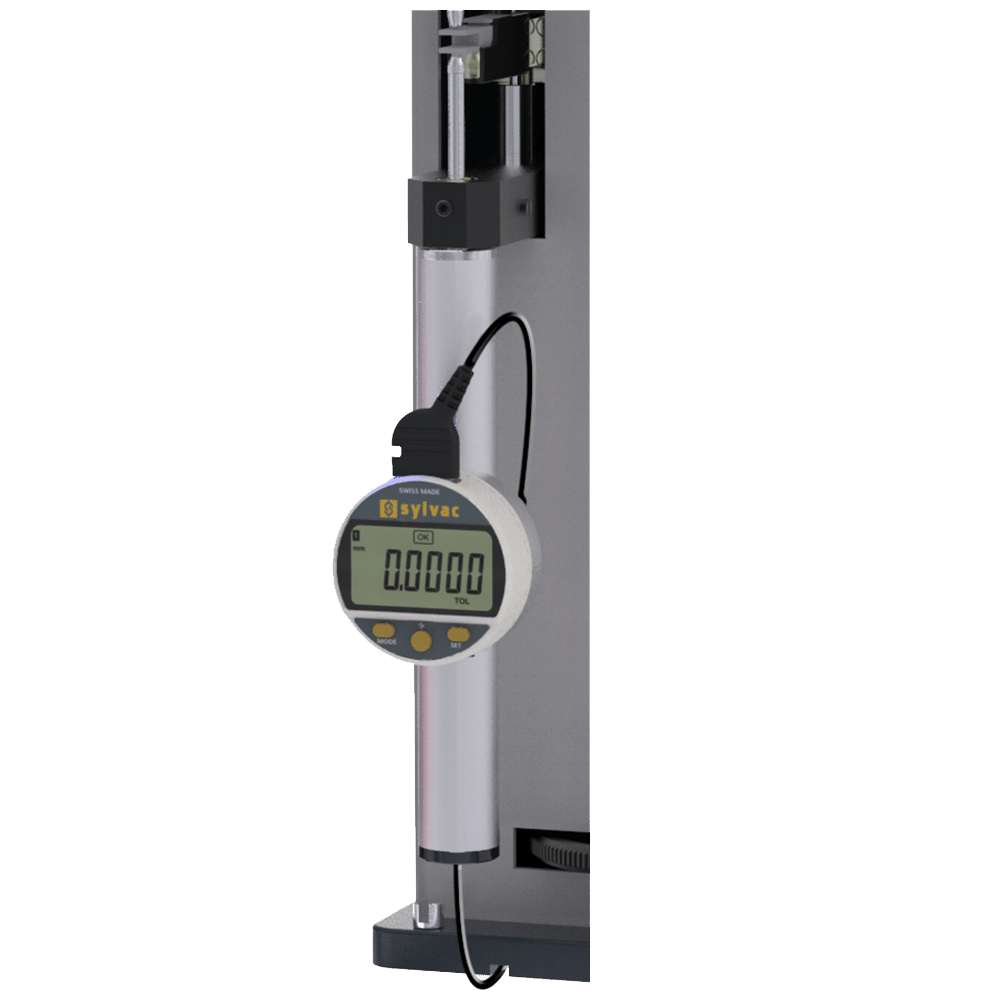

| S_Dial PRO for M3 kit | P25D for M3 kit | |
| Reference | 805-8609 | 801-1260-00 |
| EAN | 7640125719512 | 7640125699036 |
| Measuring range (mm) | 50 | 25 |
| Max. error (µm) | 1.2 | 0.6 |
| Force (N) | 1.2 – 2.3 | 0.9 – 1.4 |
| Connection type (master to device) | Bluetooth® Wireless Technology ¹ Power to Rs232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ View cables info |
Kit: D62S with M8 Others: USB |
¹ Device: PC, display unit, …
Spécifications
| M3 kit with P25D M8 and D62S | M3 kit with P25D USB | M3 kit with S_Dial PRO 50 | |
| Reference | 809-1311 | 809-1312 | 809-1313 |
| EAN | 7640125710335 | 7640125710359 | 7640125710342 |
| Measuring range (mm) | 25 | 50 | |
| Max. error (µm) | 0.8 | 1.2 | |
| Connection type (master to device) | M8 ¹ View cables info |
USB ¹ View cables info |
Power to USB ¹ View cables info |
| S_Dial PRO for M3 kit | P25D for M3 kit | |
| Reference | 805-8609 | 801-1260-00 |
| EAN | 7640125719512 | 7640125699036 |
| Measuring range (mm) | 50 | 25 |
| Max. error (µm) | 1.2 | 0.6 |
| Force (N) | 1.2 – 2.3 | 0.9 – 1.4 |
| Connection type (master to device) | Bluetooth® Wireless Technology ¹ Power to Rs232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ View cables info |
Kit: D62S with M8 Others: USB |
¹ Device: PC, display unit, …
Standard Delivery
| Standard Delivery |
| M3 testing stand |
| 3 precision ceramic shims – DIN861Grade 1: 2 x 1.5 mm and 1 x 4 mm |
| Accessory 909-2010 for the control of lever indicators |
| Sycopro 3 software and its activation licence |

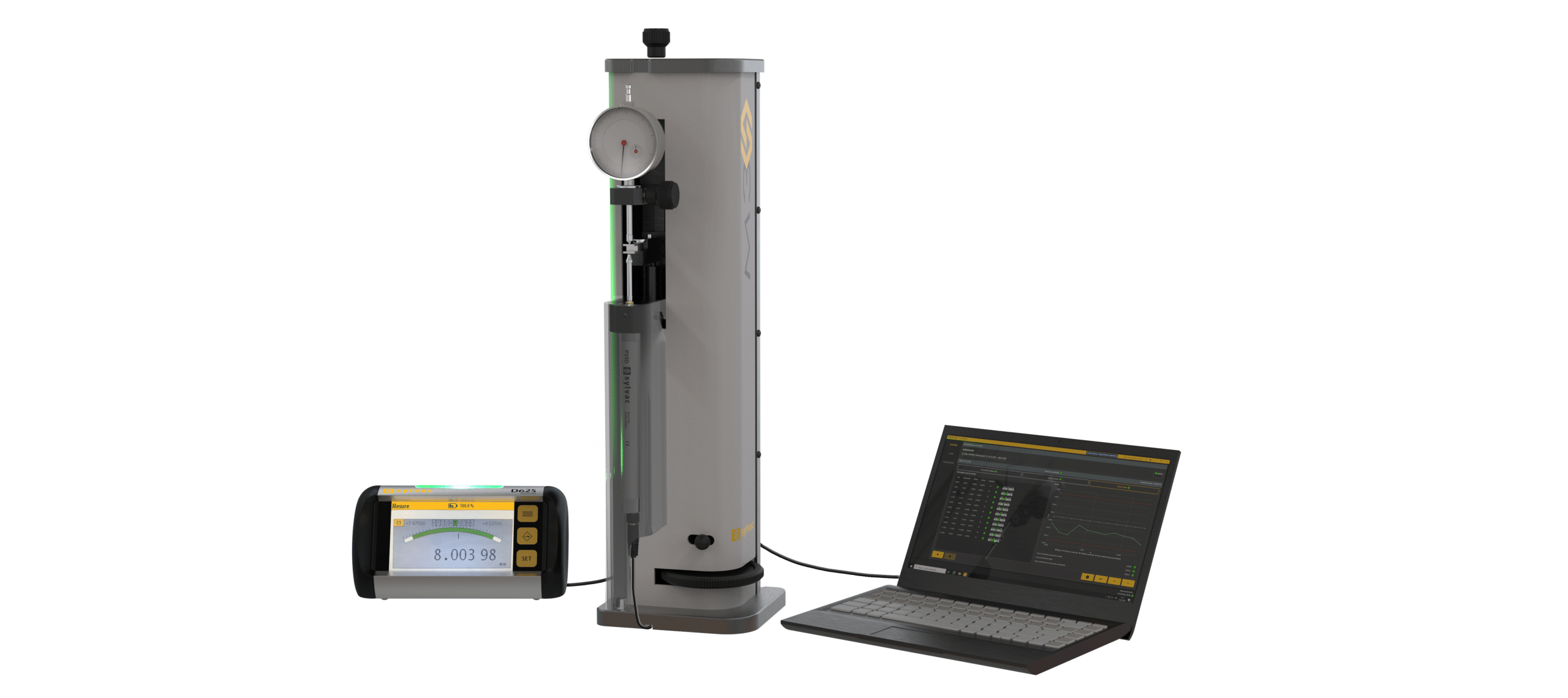

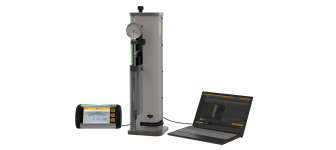

| M3 kit with probe and display unit |
| M3 testing stand |
| D62S |
| Charging unit according to country |
| External contact (pedal) 904-4101 |
| Cable M8 for P25D C310-510-100 |
| P25D HR with special measuring force 801-1260-00 |
| Sycopro 3 software and its activation licence |
| M3 kit with probe only |
| M3 testing stand |
| P25D HR with special measuring force 801-1260-00 |
| External USB footswitch 926-7020 |
| Cable P25D USB C310-510-200 |
| Sycopro 3 software and its activation licence |
Accessories
| Accessories | ||
 |

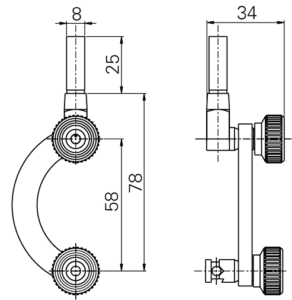

909-2010 | Clamping device for test indicator |
 |

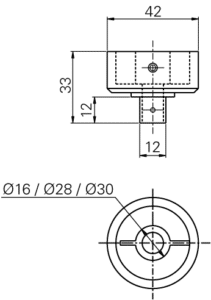

909-2011 | Clamping device for dial gauges Ø 16 / 28 / 30 mm |
