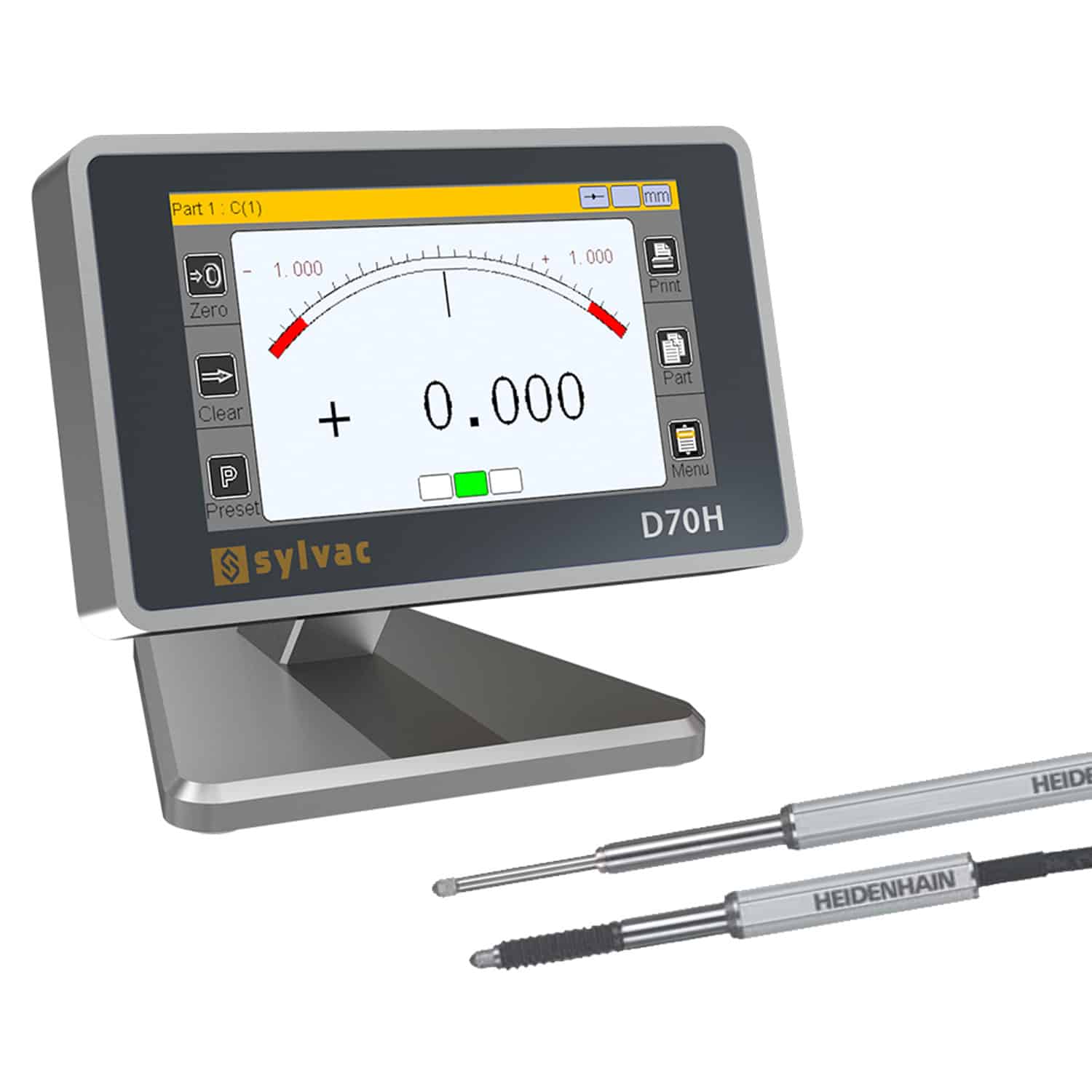

    Digital display D70S/H/I

    Starting at :
    CHF 1'491.00

    *Available in different measuring ranges

    Description

    Robust display units with 2 probes input.
    Cable
    Cable

    Features

    • Intuitive Operation : Our touch screen display units offer plug and play ease of use, requiring no additional drivers or software installation, making it hassle-free to connect and start measuring.
    • Versatile Modularity for Various Probe Types: Choose from three versions – D70S for Sylvac capacitive probes, D70I for Sylvac inductive probes (compatible with Tesa and Mahr probes), and D70H for Heidenhain ST/MT probes (with adapter for Mitutoyo and Magescale probes), providing compatibility for different probe types.

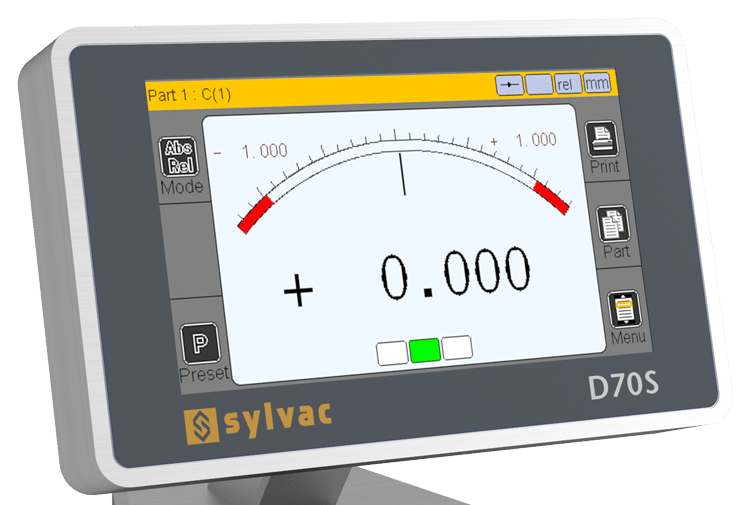

    • Clear Display Options: Analogic, tolerance limit, 2 values simultaneously, for a clear and easy-to-read representation of measurement values.
    • High Resolution for Precise Readings: Experience exceptional resolution, up to 0.00001 mm (0.01 µm) on the D70H version, ensuring accurate and detailed measurement readings.

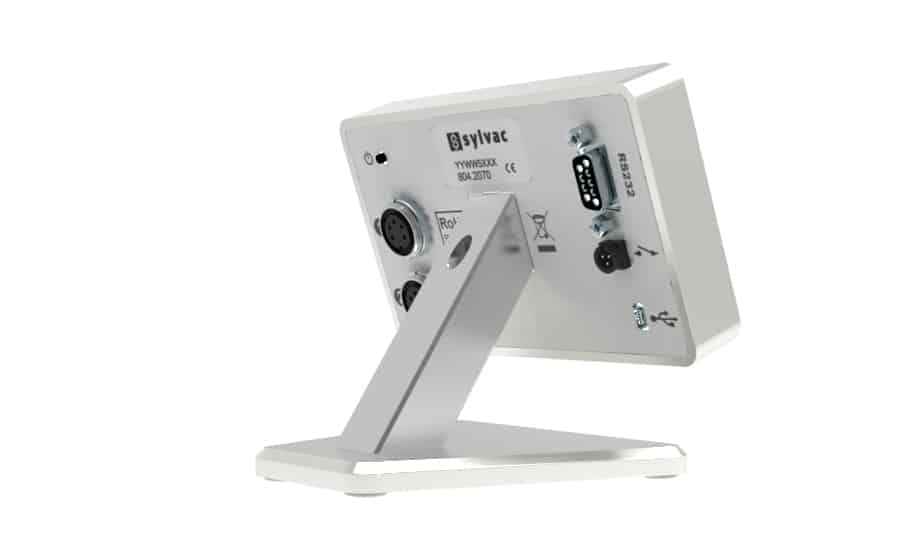

    • Effortless Data Transfer and Compatibility: Seamlessly transfer data via USB or RS232 outputs, with compatibility with Excel and SPC for easy integration into your workflow.
    • Robust and Workshop-Ready Design: Designed with an extremely robust aluminum housing and IP65 liquid-proof front panel, our units withstand workshop conditions for reliable performance.

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    804-2070 804-2072 804-2071
    EAN 7640125719260 7640125718119 7640125716641
    Type D70S D70H ¹ D70I
    Overall dimensions (mm) 140x105x111
    Weight (kg) 0.6
    Case Aluminium
    Protection according to IEC 60529 IP65 IP40
    Output data USB / RS232 USB / RS232 (1×1)
    Probes Sylvac Capacitive probes Heidenhain ST/MT probes (Mitutoyo & Magescale with adapter) / P12D Sylvac Inductive probes (Tesa & Mahr ² compatible) / P12D
    Programmable by PC

    ¹ Not available in Switzerland

    ² Mahr probes : only probes compatible Tesa

    804-2070 804-2072 804-2071
    EAN 7640125719260 7640125718119 7640125716641
    Type D70S D70H ¹ D70I
    Overall dimensions (mm) 140x105x111
    Weight (kg) 0.6
    Case Aluminium
    Protection according to IEC 60529 IP65 IP40
    Output data USB / RS232 USB / RS232 (1×1)
    Probes Sylvac Capacitive probes Heidenhain ST/MT probes (Mitutoyo & Magescale with adapter) / P12D Sylvac Inductive probes (Tesa & Mahr ² compatible) / P12D
    Programmable by PC

    ¹ Not available in Switzerland

    ² Mahr probes : only probes compatible Tesa

    Standard Delivery
    Unit according to technical specifications
    Table base
    Charging unit
    Instruction manual
    Accessories D70 H/I D70 S
    925-1142 * Adaptator RS-USB ¹
    804-2201 RS232 1X1 (3 pins wired) ²
    804-2204 RS232 1X1 ³
    904-4101 External contact (footpedal)
    904-4102 Footpedal (jack)
    926-7020 Footpedal USB (PC only)



    9267021 Footpedal USB robust (PC only)

    804-2130 MB-IO
    804-2140 MB-PS
    804-2160 MB-RS
    804-2170 MB-TP
    804-2180 MB-BT
    804-2190 MB-AG
    804-2105 MB-4P
    804-2132 MB-NET
    804-2133 MB-RO

    * The D70 and D400S do not work on Vmux with this adapter

    ¹ RS232 connection to PC (D70S version and D400S only) bidirectional. Versions D70I/H require a crossover RS232 cable.

    ² Update of the units

    ³ Connection cable for MB-I/O

    • Not available
