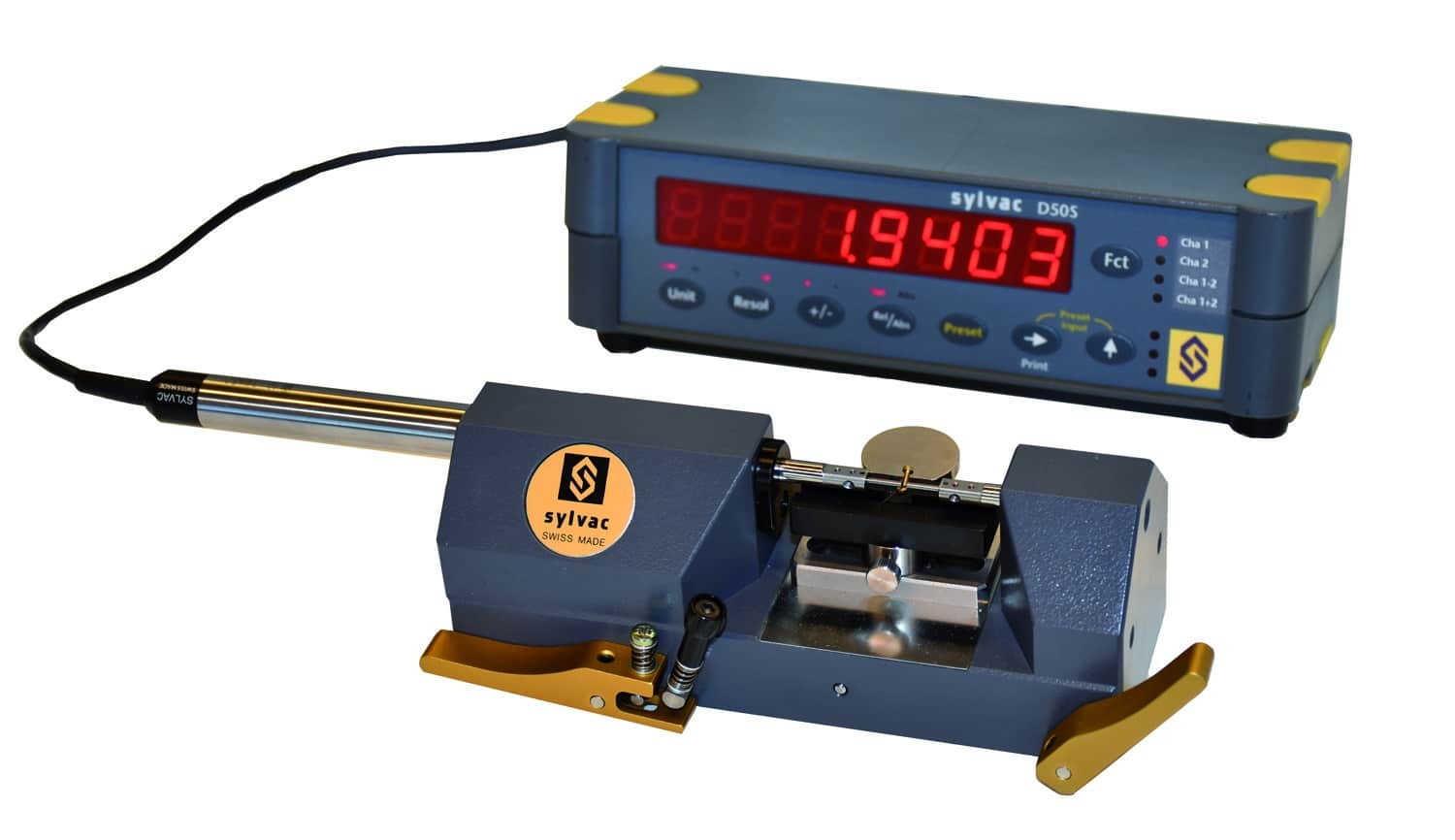

Digital display D50S
Description
Digital display with 2 probe inputs.

Swiss made
Features

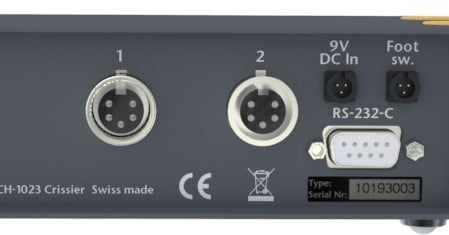

- Dual Probe Inputs for Versatility: Our digital display units are equipped with two probe inputs, allowing for simultaneous measurements and increased versatility.
- Convenient Data Output: Benefit from RS232C data output, enabling easy and efficient data transfer for analysis and recording.
- External Power Supply for Hassle-free Operation: Our units can be powered by an external unit, ensuring uninterrupted performance and flexibility.
- Compact and Lightweight Design: Experience the convenience of a light and compact digital display unit with IP54 front panel, offering portability and ease of use in various measurement scenarios.
- Clear and User-friendly Interface: Enjoy the large, bright display that provides clear and easy-to-read measurement readouts, enhancing visibility and usability.
- High Resolution for Precise Readings: With a resolution up to 0.0001 mm (0.1 µm), our digital display units provide accurate and detailed measurement readings.
Choose between the standard D50S model or the D50S PRO for enhanced linearity correction
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
804-1050 | 804-1060 | |
EAN | 7640125681963 | 7640125718461 |
Type | D50S | D50S PRO |
Max. error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 | P2 : 0.5 / P5 : 0.6 / P10 : 0.6 / P25 : 0.8 ² |
Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 | |
Overall dimensions (mm) | 180 x 75 x 50 | |
Weight (kg) | 0.3 | |
Case | Terblend Plastic | |
Protection according to IEC 60529 | IP40 | |
Connection type (instrument to device) | RS232 1:1 ¹ Adaptator RS – USB ¹ RS232 to Digimatic ¹ View cables info |
|
Programmable by PC | ⬤ |
¹ Device: PC, display unit, …
² Max error on D50S PRO paired with a probe
Standard Delivery |
Unit according to technical specifications |
Feet (pair) |
Charging unit according to country (904-4200) |
Instruction manual |
-
Not available
-
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
- Not available
- Not available
- Not available
Spécifications
804-1050 | 804-1060 | |
EAN | 7640125681963 | 7640125718461 |
Type | D50S | D50S PRO |
Max. error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 | P2 : 0.5 / P5 : 0.6 / P10 : 0.6 / P25 : 0.8 ² |
Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 | |
Overall dimensions (mm) | 180 x 75 x 50 | |
Weight (kg) | 0.3 | |
Case | Terblend Plastic | |
Protection according to IEC 60529 | IP40 | |
Connection type (instrument to device) | RS232 1:1 ¹ Adaptator RS – USB ¹ RS232 to Digimatic ¹ View cables info |
|
Programmable by PC | ⬤ |
¹ Device: PC, display unit, …
² Max error on D50S PRO paired with a probe
Standard Delivery
Standard Delivery |
Unit according to technical specifications |
Feet (pair) |
Charging unit according to country (904-4200) |
Instruction manual |
