Capacitive measuring probes
Starting at :
CHF 653.00
*Available in different measuring ranges
Description

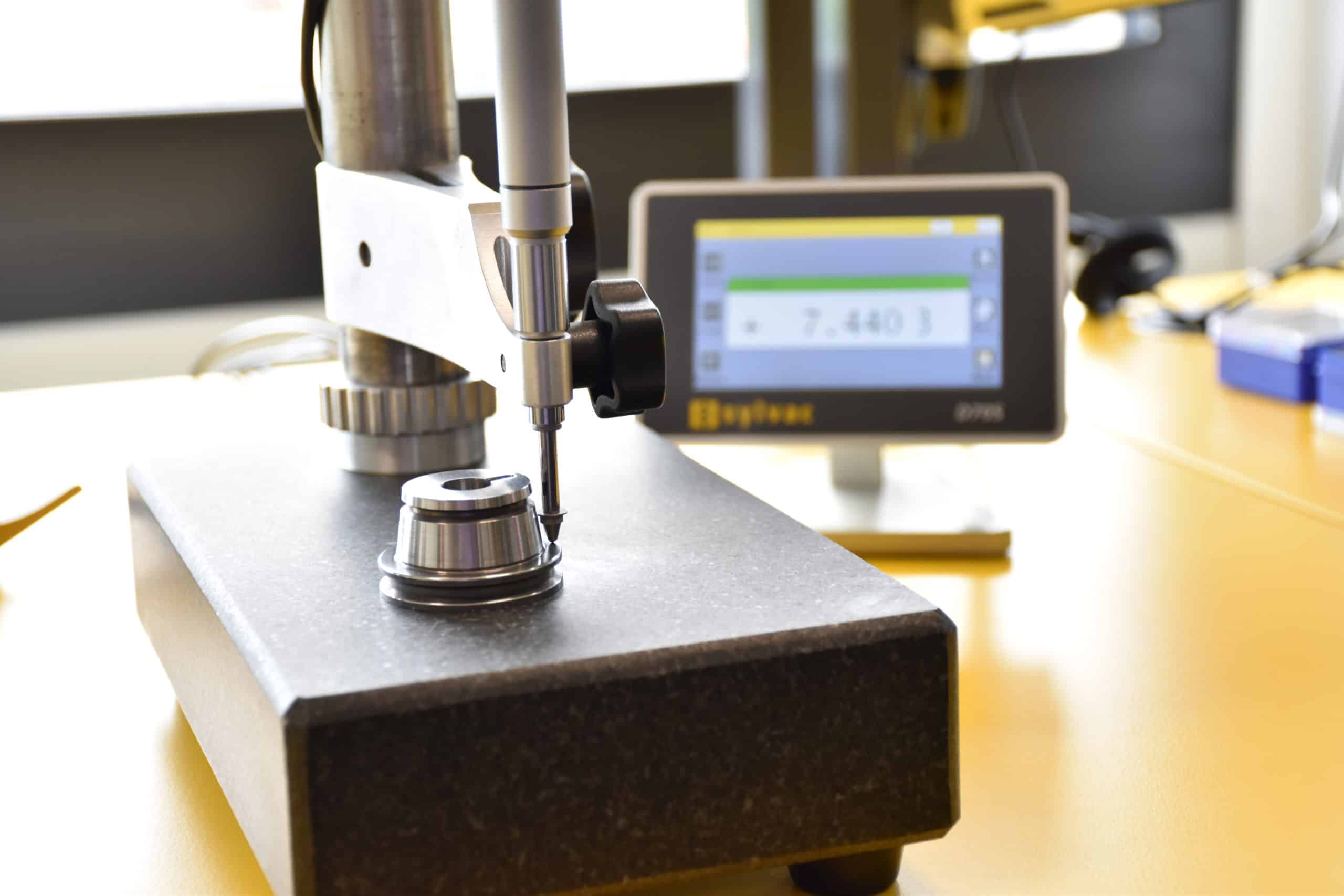

Plunger-type Capacitive probe.
Swiss made
0.1µm
Cable
Features
- Absolute probes for accurate results: Our plunger-type capacitive absolute probes provide accurate measurements and ensure reliable results.
- High Resolution for Detailed Data Analysis: Experience exceptional resolution of 0.0001 mm, allowing for precise and detailed measurements.
- Wide Measuring Range for Versatility: With a measuring range from 5 to 25 mm, our probes accommodate various measurement needs and applications.
- Compatible with Sylvac Display Units: Our capacitive measuring probes are fully compatible with all Sylvac digital units, providing seamless integration and enhancing measurement capabilities.
- Excellent Linearity for Reliable Performance: Benefit from excellent linearity, ensuring consistent and reliable measurements throughout the entire measuring range.
- Interchangeable Cables for Flexibility: Enjoy the convenience of interchangeable cables on most probe types, providing flexibility and ease of use.
Applications
Form deviation
Distance
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 900-1001 | 900-1002 | 900-1003 | 900-1004 | |
| TYPE | P5 | P5BL | P5V | P5B |
| EAN | 7640125689617 | 7640125689648 | 7640125689655 | 7640125689679 |

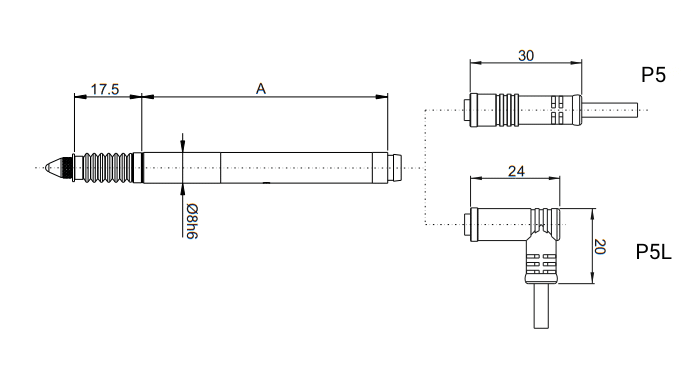

| Plain bearing (Meas. A) | 64 | – | 64 | – |
| Ball bearing (Meas. A) | 72 | – | 72 | – |
| Travel (mm) | 5 | |||
| Pre-travel (mm) | 0.7 | |||
| Max. Error ¹ (µm) | 1 | |||
| Repeatability (µm) | 0.2 | |||
| Moving mass (g) | 3.7 | |||
| Measuring force – Standard (N) | 0.50 – 0.90 | |||
| Measuring force – Minimum (N) | 0.20 – 0.25* | 0.20 – 0.25 | 0.20 – 0.25* | 0.20 – 0.25 |
| Measuring force – Low (N) | 0.30 – 0.65 | |||
| Measuring force – High (N) | 0.80 – 1.40 | – | 0.80 – 1.40 | – |
| 900-1005 | 900-1006 | 900-1007 | 900-1008 | |
| TYPE | P5BV | P5L | P5BVL | P5LV |
| EAN | 7640125689693 | 7640125689709 | 7640125689723 | 7640125689730 |
| Plain bearing (Meas. A) | – | 64 | – | 64 |
| Ball bearing (Meas. A) | – | 72 | – | 72 |
| Travel (mm) | 5 | |||
| Pre-travel (mm) | 0.7 | |||
| Max. Error ¹ (µm) | 1 | |||
| Repeatability (µm) | 0.2 | |||
| Moving mass (g) | 3.7 | |||
| Measuring force – Standard (N) | 0.50 – 0.90 | |||
| Measuring force – Minimum (N) | 0.20 – 0.25 | 0.20 – 0.25* | 0.20 – 0.25 | 0.20 – 0.25* |
| Measuring force – Low (N) | 0.30 – 0.65 | |||
| Measuring force – High (N) | – | 0.80 – 1.40 | – | 0.80 – 1.40 |
| 900-1010 | 900-1010-91 | 900-1012 | 900-1014 | 900-1014-91 | 900-1016 | |
| TYPE | P10 | P10 LF | P10S | P10L | P10L LF | P10LS |
| EAN | 7640125689761 | 7640125689778 | 7640125689792 | 7640125689815 | 7640125023176 | 7640125689839 |
| Travel (mm) | 10 | |||||
| Pre-travel (mm) | 0.5 | |||||
| Max. Error ¹ (µm) | 1 | |||||
| Repeatability (µm) | 0.2 | |||||
| Moving mass (g) | 4.1 | |||||
| Measuring force – Standard (N) | 0.60 – 0.80 | 0.70 – 1.25 | 0.60 – 0.80 | |||
| Measuring force – Minimum (N) | < 0.10 | – | < 0.10 | |||
| Measuring force – Low (N) | 0.20 – 0.25 | – | 0.20 – 0.25 | |||
| Measuring force – High (N) | 0.70 – 1.50 | – | 0.70 – 1.50 | |||
| 900-1025 | 900-1027 | |
| TYPE | P25 | P25S |
| EAN | 7640125689853 | 7640125689877 |
| Travel (mm) | 25 | |
| Pre-travel (mm) | 0.8 | |
| Max. Error ¹ (µm) | 1.2 | |
| Repeatability (µm) | 0.2 | |
| Moving mass (g) | 9.6 | |
| Measuring force – Standard (N) | 0.60 – 1.00 | 0.65 – 1.40 |
| Measuring force – Minimum (N) | < 0.15 | – |
| Measuring force – Low (N) | 0.20 – 0.30 | – |
| Measuring force – High (N) | 0.70 – 1.60 | – |
¹ With Master unit. See as well the specifications of the pair Measuring probe/display unit.
B = ball bearing / V = Vacuum lifter / L = 90° cable / LF = low force / S = with rubber boot
Tolerance ± 20%, measuring probe in vertical position, outgoing spindle.
* without rubber boot
Spécifications
| 900-1001 | 900-1002 | 900-1003 | 900-1004 | |
| TYPE | P5 | P5BL | P5V | P5B |
| EAN | 7640125689617 | 7640125689648 | 7640125689655 | 7640125689679 |
| Plain bearing (Meas. A) | 64 | – | 64 | – |
| Ball bearing (Meas. A) | 72 | – | 72 | – |
| Travel (mm) | 5 | |||
| Pre-travel (mm) | 0.7 | |||
| Max. Error ¹ (µm) | 1 | |||
| Repeatability (µm) | 0.2 | |||
| Moving mass (g) | 3.7 | |||
| Measuring force – Standard (N) | 0.50 – 0.90 | |||
| Measuring force – Minimum (N) | 0.20 – 0.25* | 0.20 – 0.25 | 0.20 – 0.25* | 0.20 – 0.25 |
| Measuring force – Low (N) | 0.30 – 0.65 | |||
| Measuring force – High (N) | 0.80 – 1.40 | – | 0.80 – 1.40 | – |
| 900-1005 | 900-1006 | 900-1007 | 900-1008 | |
| TYPE | P5BV | P5L | P5BVL | P5LV |
| EAN | 7640125689693 | 7640125689709 | 7640125689723 | 7640125689730 |
| Plain bearing (Meas. A) | – | 64 | – | 64 |
| Ball bearing (Meas. A) | – | 72 | – | 72 |
| Travel (mm) | 5 | |||
| Pre-travel (mm) | 0.7 | |||
| Max. Error ¹ (µm) | 1 | |||
| Repeatability (µm) | 0.2 | |||
| Moving mass (g) | 3.7 | |||
| Measuring force – Standard (N) | 0.50 – 0.90 | |||
| Measuring force – Minimum (N) | 0.20 – 0.25 | 0.20 – 0.25* | 0.20 – 0.25 | 0.20 – 0.25* |
| Measuring force – Low (N) | 0.30 – 0.65 | |||
| Measuring force – High (N) | – | 0.80 – 1.40 | – | 0.80 – 1.40 |
| 900-1010 | 900-1010-91 | 900-1012 | 900-1014 | 900-1014-91 | 900-1016 | |
| TYPE | P10 | P10 LF | P10S | P10L | P10L LF | P10LS |
| EAN | 7640125689761 | 7640125689778 | 7640125689792 | 7640125689815 | 7640125023176 | 7640125689839 |
| Travel (mm) | 10 | |||||
| Pre-travel (mm) | 0.5 | |||||
| Max. Error ¹ (µm) | 1 | |||||
| Repeatability (µm) | 0.2 | |||||
| Moving mass (g) | 4.1 | |||||
| Measuring force – Standard (N) | 0.60 – 0.80 | 0.70 – 1.25 | 0.60 – 0.80 | |||
| Measuring force – Minimum (N) | < 0.10 | – | < 0.10 | |||
| Measuring force – Low (N) | 0.20 – 0.25 | – | 0.20 – 0.25 | |||
| Measuring force – High (N) | 0.70 – 1.50 | – | 0.70 – 1.50 | |||
| 900-1025 | 900-1027 | |
| TYPE | P25 | P25S |
| EAN | 7640125689853 | 7640125689877 |
| Travel (mm) | 25 | |
| Pre-travel (mm) | 0.8 | |
| Max. Error ¹ (µm) | 1.2 | |
| Repeatability (µm) | 0.2 | |
| Moving mass (g) | 9.6 | |
| Measuring force – Standard (N) | 0.60 – 1.00 | 0.65 – 1.40 |
| Measuring force – Minimum (N) | < 0.15 | – |
| Measuring force – Low (N) | 0.20 – 0.30 | – |
| Measuring force – High (N) | 0.70 – 1.60 | – |
¹ With Master unit. See as well the specifications of the pair Measuring probe/display unit.
B = ball bearing / V = Vacuum lifter / L = 90° cable / LF = low force / S = with rubber boot
Tolerance ± 20%, measuring probe in vertical position, outgoing spindle.
* without rubber boot
Standard Delivery
|
Standard Delivery
|
| Probe according to technical specifications |
| Calibration certificate |
| Cable 1.5 m |
| Stainless steel contact point with tungsten carbide ball Ø 2 mm (905-2204) |
Accessories
| Accessories | P5 | P10 | P25 | ||
 |
905-2204 | Stainless steel contact point M2.5 with TC ball probe (other contact points, see chapter digital indicators) | ⬤ | ⬤ | ⬤ |
 |
901-2003 | Rubber boot and contact point set | ⬤ | ||
 |
901-2004 | Rubber boot and contact point set | ⬤ | ||
 |
901-2005 | Lifting device with photo-cable | ⬤ | ⬤ | |
| 901-2012 | Tube Ø 4 mm / 2 mm, Length to be specified |
⬤ | ⬤ | ⬤ | |
| 901-2013 | Tube Ø 6 mm / 4 mm, Length to be specified |
⬤ | ⬤ | ⬤ | |
| 901-2014 | Double tube diameter 2 x 4 mm /2 mm, Length to be specified | ⬤ | ⬤ | ⬤ | |
 |
905-2225 | Plastic lifting ring (bottom) | ⬤ | ⬤ | ⬤ |
| 905-2224 | Plastic lifting lever (bottom) | ⬤ | ⬤ | ⬤ | |
 |
905-2231 | Sleeve Ø8 –>10mm with locking screw | ⬤ | ⬤ | ⬤ |
 |
901-5002 | Cable 1.5 m | ⬤ | ||
 |
901-5012 | Cable 1.5 m | ⬤ | ||
 |
901-5032 | Cable 1.5 m bent | ⬤ | ||
 |
901-5042 | Cable 1.5 m | ⬤ | ||
 |
901-5052 | Cable 1.5 m bent | ⬤ | ||
 |
905-2231 | Adapting socket + screw | ⬤ | ⬤ | ⬤ |
