Bore gauges Xtreme SETS Smart

*Available in different measuring ranges

Description

Digital bore gauge sets with integrated Bluetooth® technology.
1um
Resolution: 1µm
Cable
Cable

Features

  • Seamless data acquisition: Our bore gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Unmatched Accuracy: Display resolution of 0.001 mm with a digit height of 9 mm, providing precise measurements that meet the highest metrology standards.
  • Enhanced Measuring Capabilities: With a measuring range from 2 to 300mm and blind bore measurement capabilities from 2-6 mm and 12.5 mm, this bore gage caters to a wide range of measurement requirements, offering unparalleled adaptability.
  • User-Friendly & flexible Design: Interchangeable measuring heads with hard metal 2 points (Ø 2 to 6 mm) and 3 points (from Ø 6 mm) contact points, allowing you to adapt to various applications effortlessly.
  • Built to Last: This gauge is designed to withstand heavy-duty work with a protection rating of IP67, even when connected.
  • Complete Package: Each set comes with a wooden box containing all the necessary items, calibration rings, and UKAS certificates, providing everything you need for accurate measurements.

Applications

icon-diameter
Diameter

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool

Overview

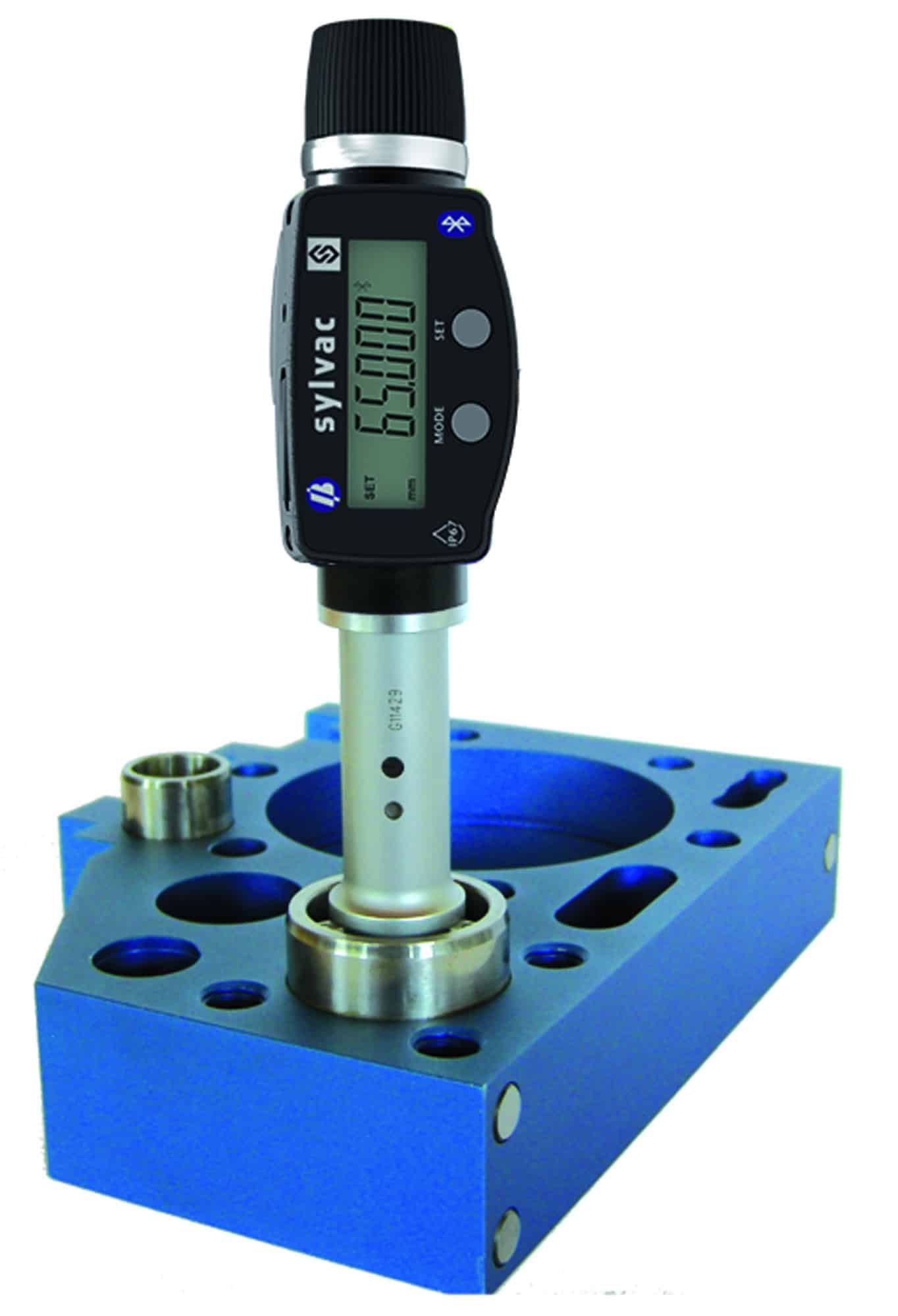

Sets XT3D 951-6102 951-6103 951-6104 951-6105
EAN 7640125028638 7640125028645 7640125028652 7640125028669
Meas. range (mm) 2-6 6-10 10-20 20-50
Type SXT3D 1M BT SXT3D 3M BT SX3D 4M BT SXT3D 5M BT
Numb. of heads 5 2 3 3
Numb. of rings 3 1 2 2
Meas. force 8N 7N 15N 21N



Sets XT3D 951-6106 951-6107 951-6108 951-6109
EAN 7640125028676 7640125028683 7640125028690 7640125028706
Meas. range (mm) 50-100 100-150 150-200 100-200
Type SXT3D 6M BT SXT3D 7M BT SXT3D 8M BT SXT3D 9M BT
Numb. of heads 3 2 2 4
Numb. of rings 2 1 1 2
Meas. force 28N 32N 32N 32N



Sets XTDU 951-7103 951-7104 951-7105 951-7106
EAN 7640125689105 7640125689136 7640125689167 7640125689181
Meas. range (mm) 6-10 10-20 20-50 50-100
Type SXTD3U-BT SXTD4U-BT SXTD5U-BT SXTD6U-BT
Numb. of instruments 2 3 3 3
Numb. of heads 2 3 3 3
Numb. of rings 1 2 2 2

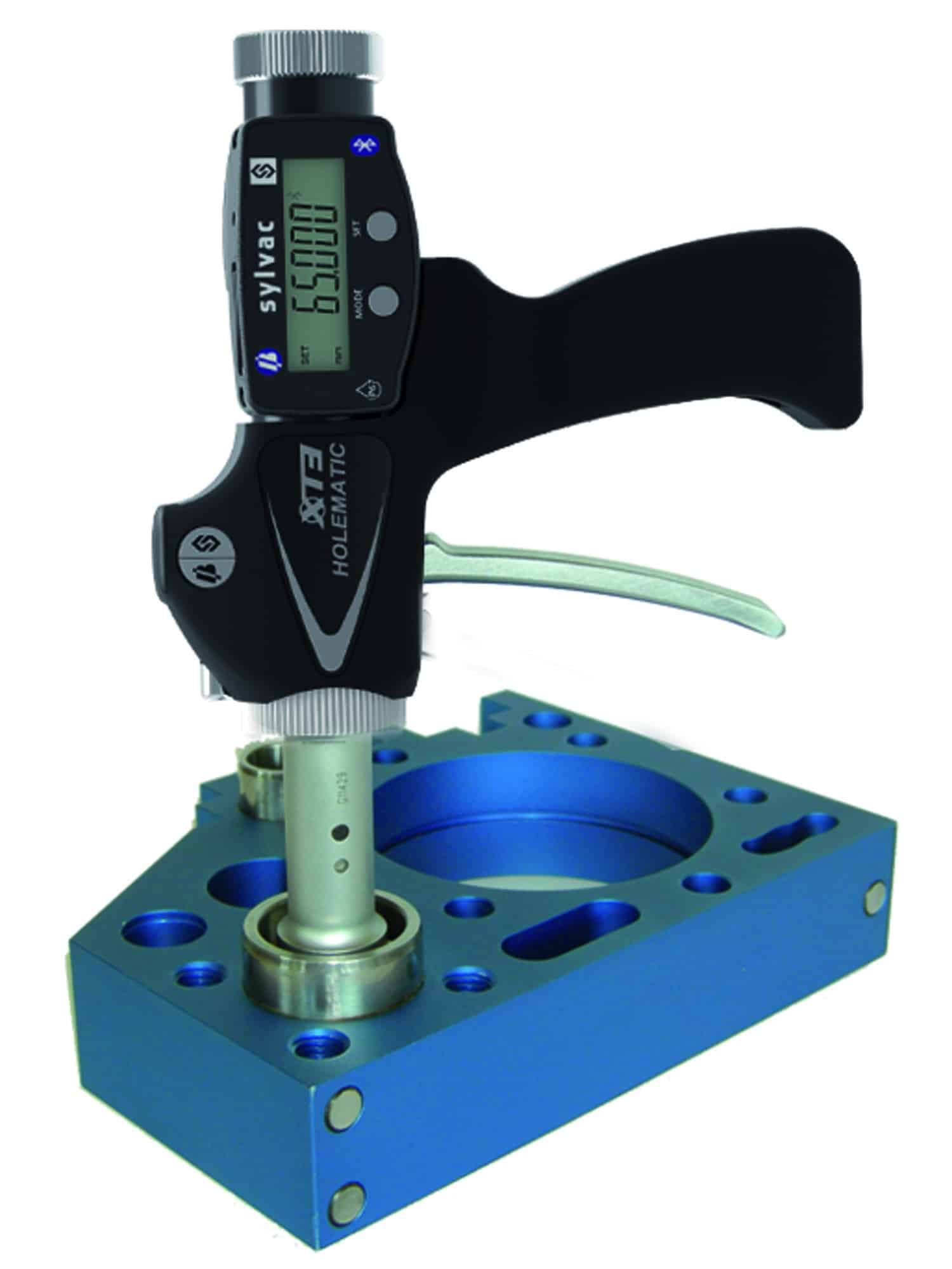

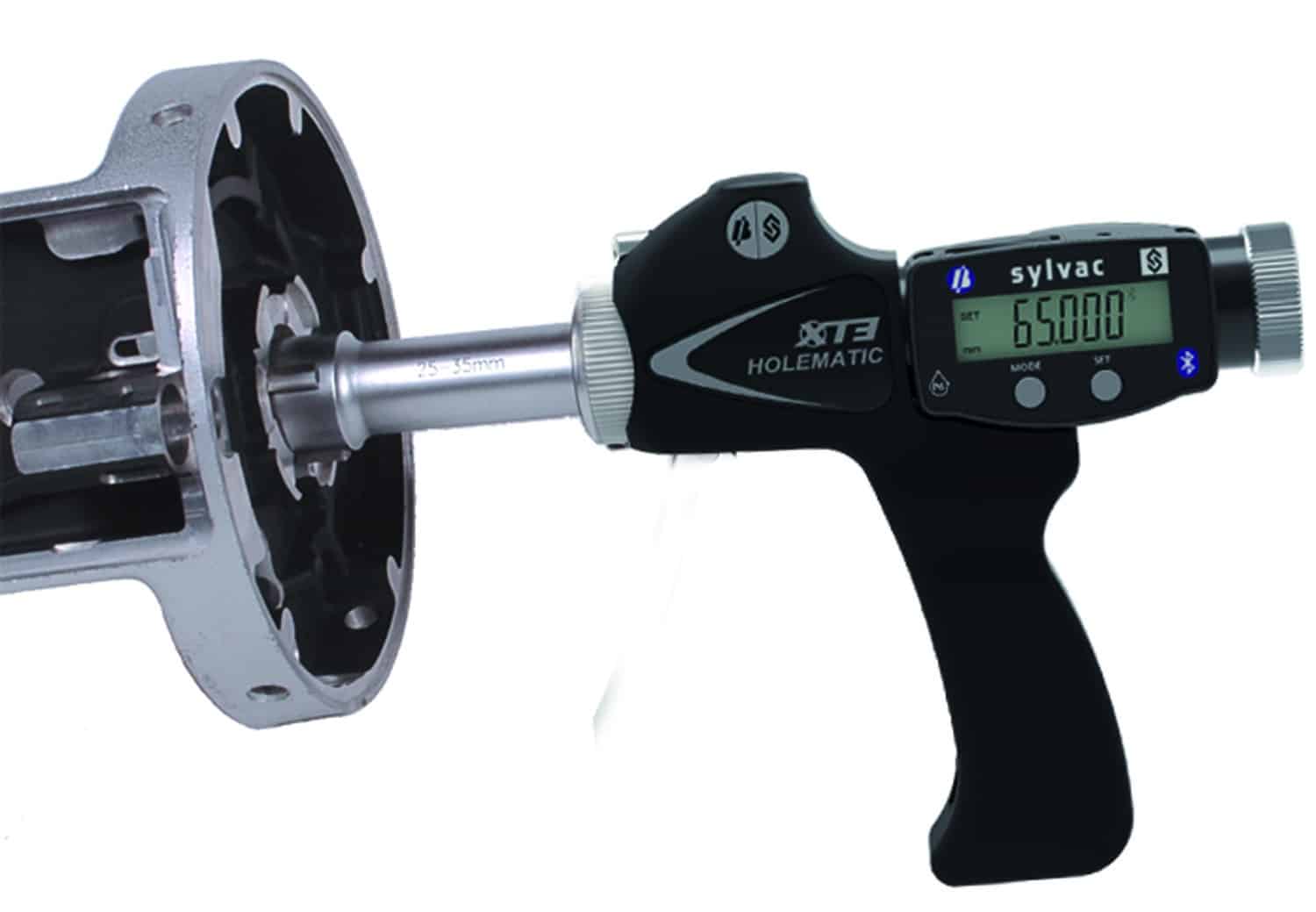

Sets XT3H 955-6102 955-6103 955-6104
EAN 7640125028713 7640125028720 7640125028737
Meas. range (mm) 2-6 6-10 10-20
Type SXT3H 1M BT SXT3H 3M BT SXT3H 4M BT
Numb. of heads  5 2 3
Numb. of rings  3 1 2
Meas. force  4N 9N 9N



Sets XT3H 955-6105 955-6106
EAN 7640125028744 7640125028751
Meas. range (mm) 20-50 50-100
Type SXT3H 5M BT SXT3H 6M BT
Numb. of heads 3 3
Numb. of rings 2 2
Meas. force 19N 19N



Sets XT3H 955-6107 955-6108 955-6114
EAN 7640125028768 7640125028775 7640125028782
Meas. range (mm) 100-150 150-200 6-20
Type SXT3H 7M BT SXT3H 8M BT SXT3H 10M BT
Numb. of heads 2 2 5
Numb. of rings 1 1 3
Meas. force 22N 22N 9N



Sets XT3H 955-6115 955-6116
EAN 7640125028799 7640125028805
Meas. range (mm) 20-100 100-200
Type SXT3H 11M BT SXT3H 9M BT
Numb. of heads 6 4
Numb. of rings 4 2
Meas. force 19N 22N
Sets XT3D 951-6102 951-6103 951-6104 951-6105
EAN 7640125028638 7640125028645 7640125028652 7640125028669
Meas. range (mm) 2-6 6-10 10-20 20-50
Type SXT3D 1M BT SXT3D 3M BT SX3D 4M BT SXT3D 5M BT
Numb. of heads 5 2 3 3
Numb. of rings 3 1 2 2
Meas. force 8N 7N 15N 21N



Sets XT3D 951-6106 951-6107 951-6108 951-6109
EAN 7640125028676 7640125028683 7640125028690 7640125028706
Meas. range (mm) 50-100 100-150 150-200 100-200
Type SXT3D 6M BT SXT3D 7M BT SXT3D 8M BT SXT3D 9M BT
Numb. of heads 3 2 2 4
Numb. of rings 2 1 1 2
Meas. force 28N 32N 32N 32N



Sets XTDU 951-7103 951-7104 951-7105 951-7106
EAN 7640125689105 7640125689136 7640125689167 7640125689181
Meas. range (mm) 6-10 10-20 20-50 50-100
Type SXTD3U-BT SXTD4U-BT SXTD5U-BT SXTD6U-BT
Numb. of instruments 2 3 3 3
Numb. of heads 2 3 3 3
Numb. of rings 1 2 2 2



Sets XT3H 955-6102 955-6103 955-6104
EAN 7640125028713 7640125028720 7640125028737
Meas. range (mm) 2-6 6-10 10-20
Type SXT3H 1M BT SXT3H 3M BT SXT3H 4M BT
Numb. of heads  5 2 3
Numb. of rings  3 1 2
Meas. force  4N 9N 9N



Sets XT3H 955-6105 955-6106
EAN 7640125028744 7640125028751
Meas. range (mm) 20-50 50-100
Type SXT3H 5M BT SXT3H 6M BT
Numb. of heads 3 3
Numb. of rings 2 2
Meas. force 19N 19N



Sets XT3H 955-6107 955-6108 955-6114
EAN 7640125028768 7640125028775 7640125028782
Meas. range (mm) 100-150 150-200 6-20
Type SXT3H 7M BT SXT3H 8M BT SXT3H 10M BT
Numb. of heads 2 2 5
Numb. of rings 1 1 3
Meas. force 22N 22N 9N



Sets XT3H 955-6115 955-6116
EAN 7640125028799 7640125028805
Meas. range (mm) 20-100 100-200
Type SXT3H 11M BT SXT3H 9M BT
Numb. of heads 6 4
Numb. of rings 4 2
Meas. force 19N 22N
Instrument according to technical specifications

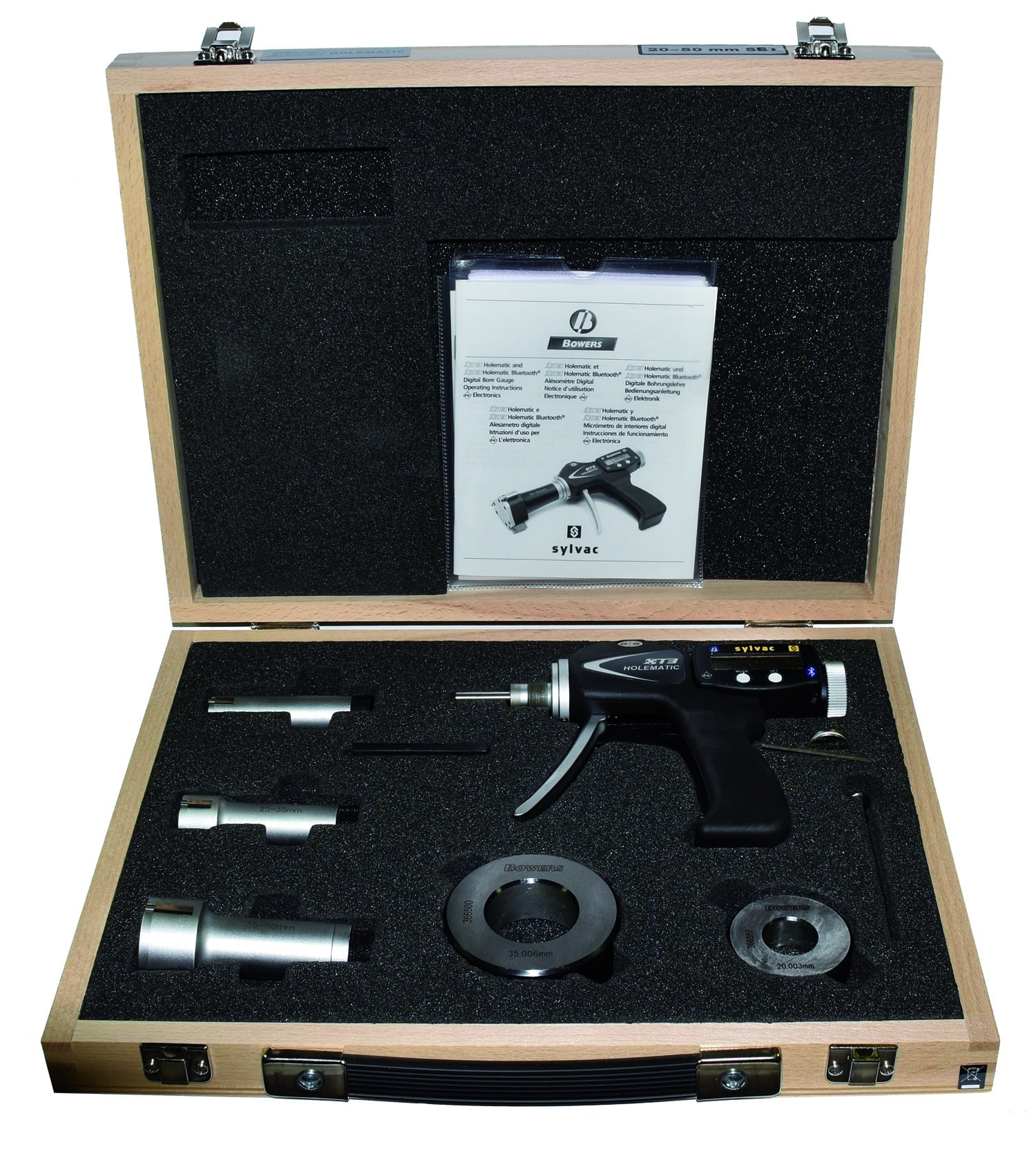

Wooden box
Rings according to technical specifications + UKAS certificate
Digital display according to set
Lithium battery CR2032 included
Instruction manual
Calibration certificate
953-2010 953-2011
Description Stand Depth stop
Measuring range (mm) 2 – 50 2 – 6
