Bench table PS16 V2 3-Points Smart
Description

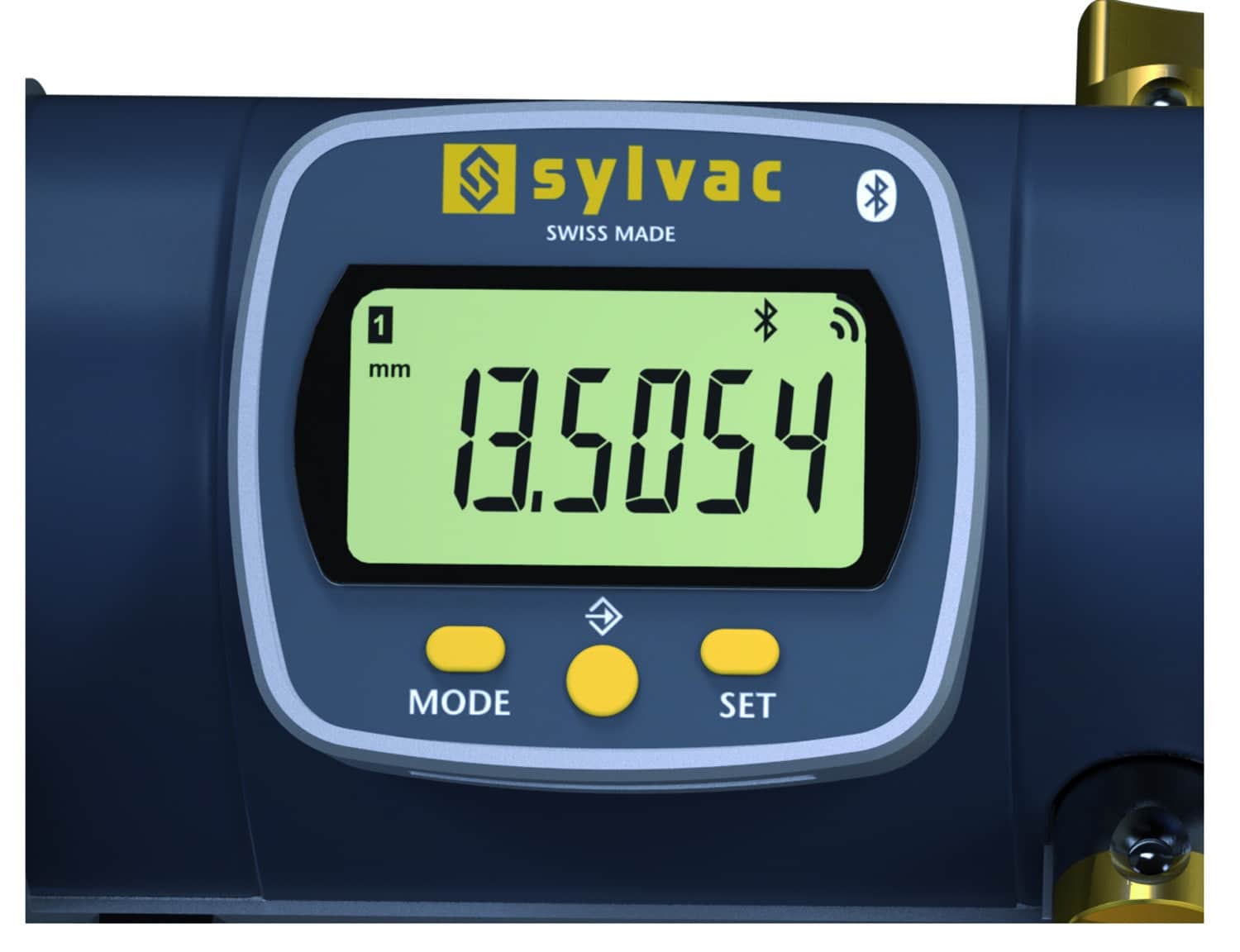

All-in-one horizontal bench table with integrated measuring system, display and Bluetooth® technology for internal or external dimensions up to 70 mm.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- All-in-one Integration: Our cutting-edge measuring bench combines integrated measuring system, display, and Bluetooth® technology. Effortlessly measure internal dimensions ranging from 0.8 mm to 12.5 mm, depending on the model.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity to USB data output.

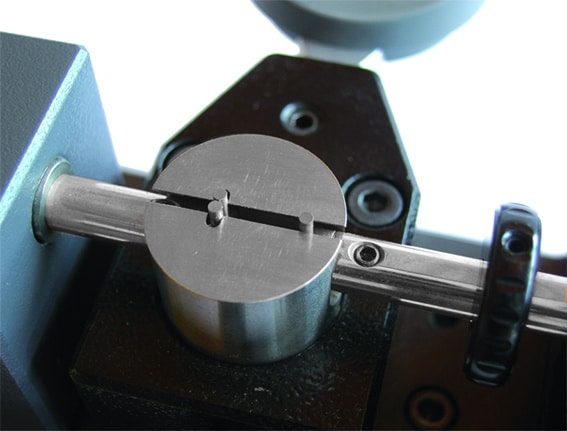

- Clever Design: With a 3-point measurement system and electronic calculation function, easily measure shallow internal diameters. Adjustable measuring force eliminates operator biases. Fine height adjustment table with a mini digital indicator ensures precise movement control.
- Built to Last: Our PS16 bench series thrives in demanding workshop environments. Equipped with a ball bearing guide and boasting IP67 protection, it guarantees reliability in any conditions.

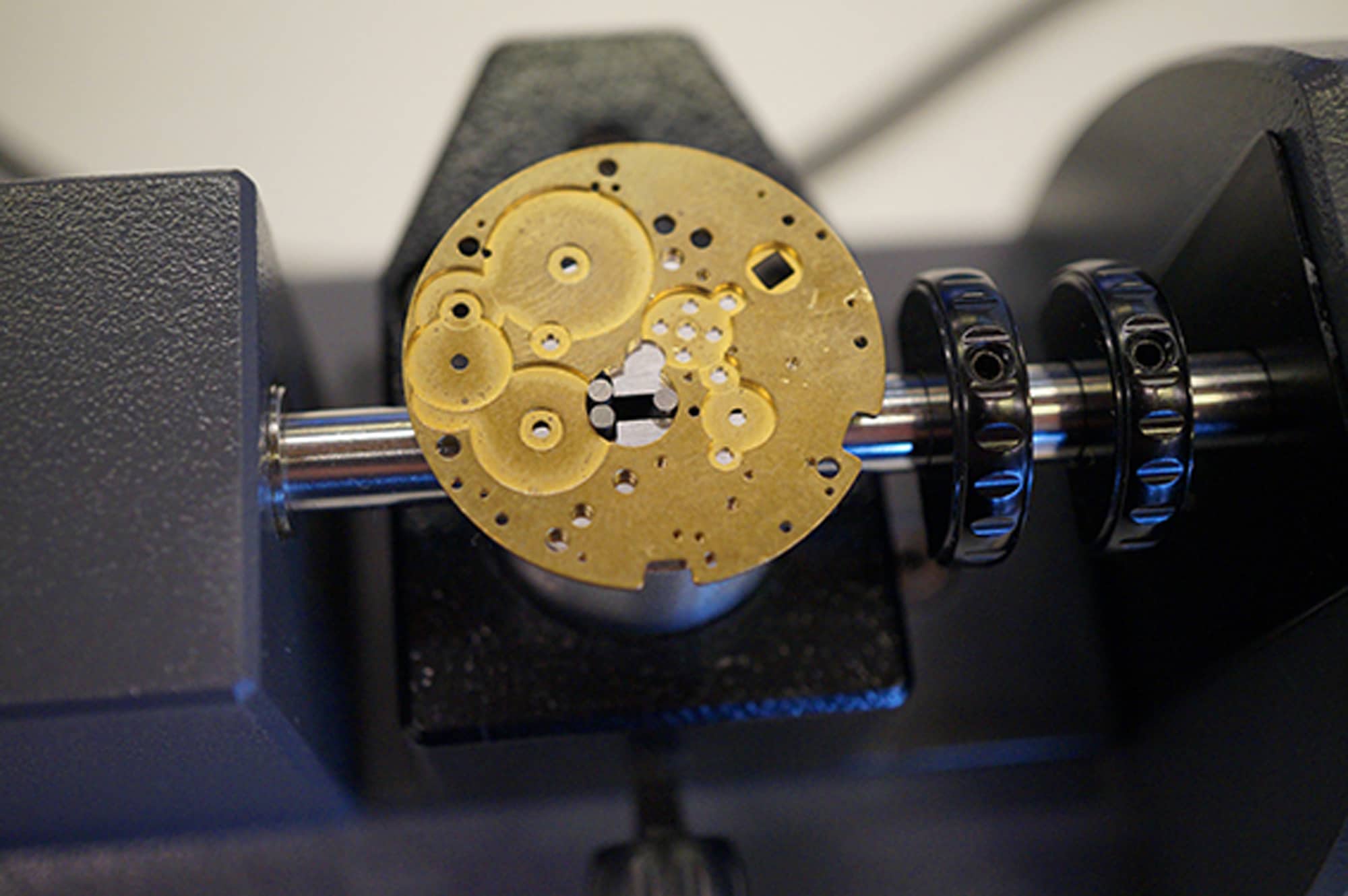

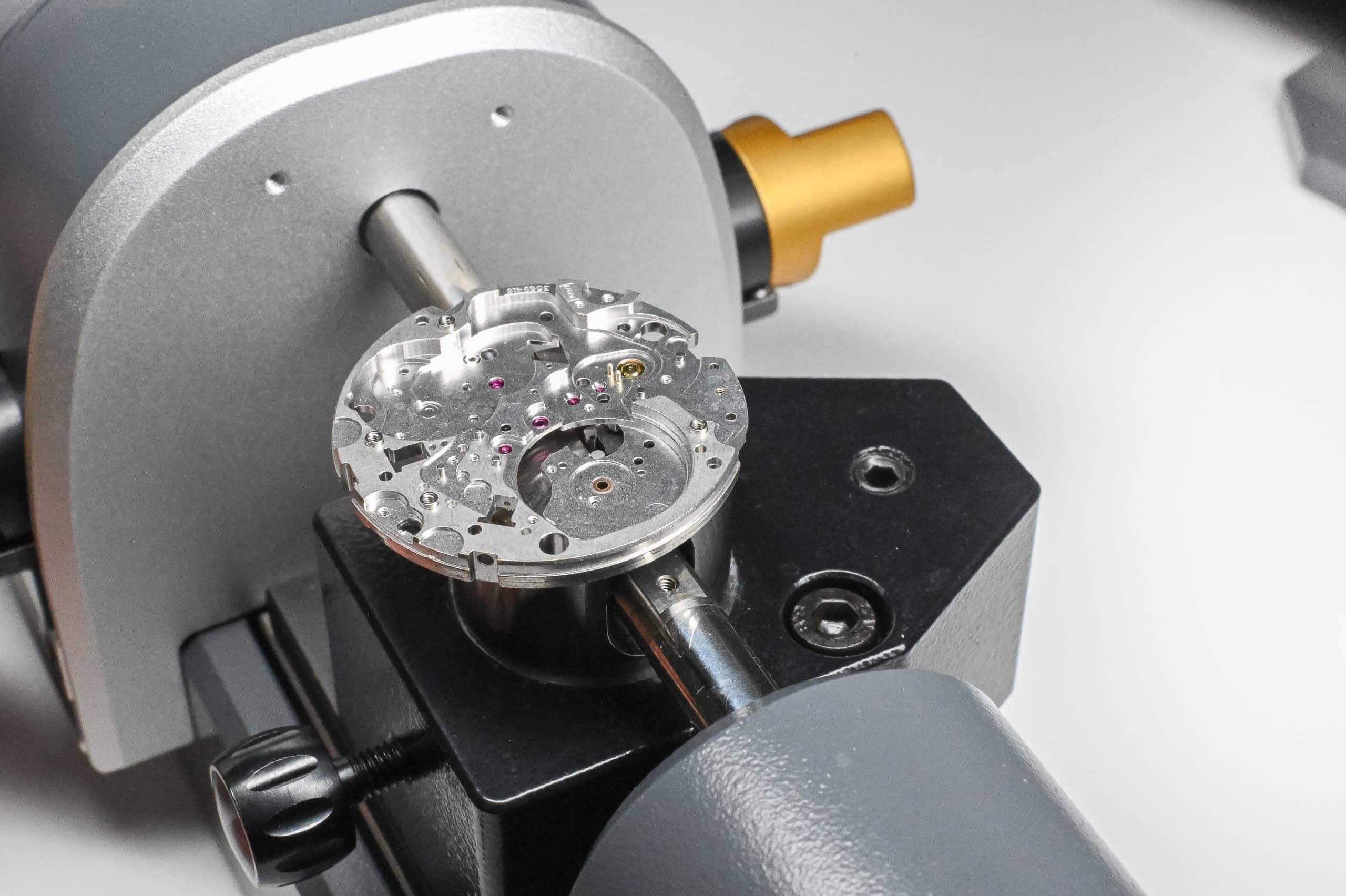

- Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench table to deliver accurate measurements every time.
Applications
Diameter
Form deviation
Industries
Automotive
Electronics
Machine tool
Medical device
Watch making
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
Internal measurement
| 808-1335 | 808-1336 | 808-1337 | 808-1338 | 808-1339 | |
| EAN | 7640125713664 | 7640125714067 | 7640125713671 | 7640125713688 | 7640125713718 |
| Max. capacity C (mm) | Ø0.8-1.3 | Ø1.3-2.5 | Ø2.5-4.0 | Ø4.0-8.0 | Ø8.0-12.5 |
| Max. error (µm) | 1.5 | ||||
| Repeatability (µm) | 1 | ||||
| Resolution (µm) | 0.1 | ||||
| Measuring force (Adjustable) (N) | 0.1 – 0.6 ² | ||||
| Weight (kg) | 4.1 | ||||

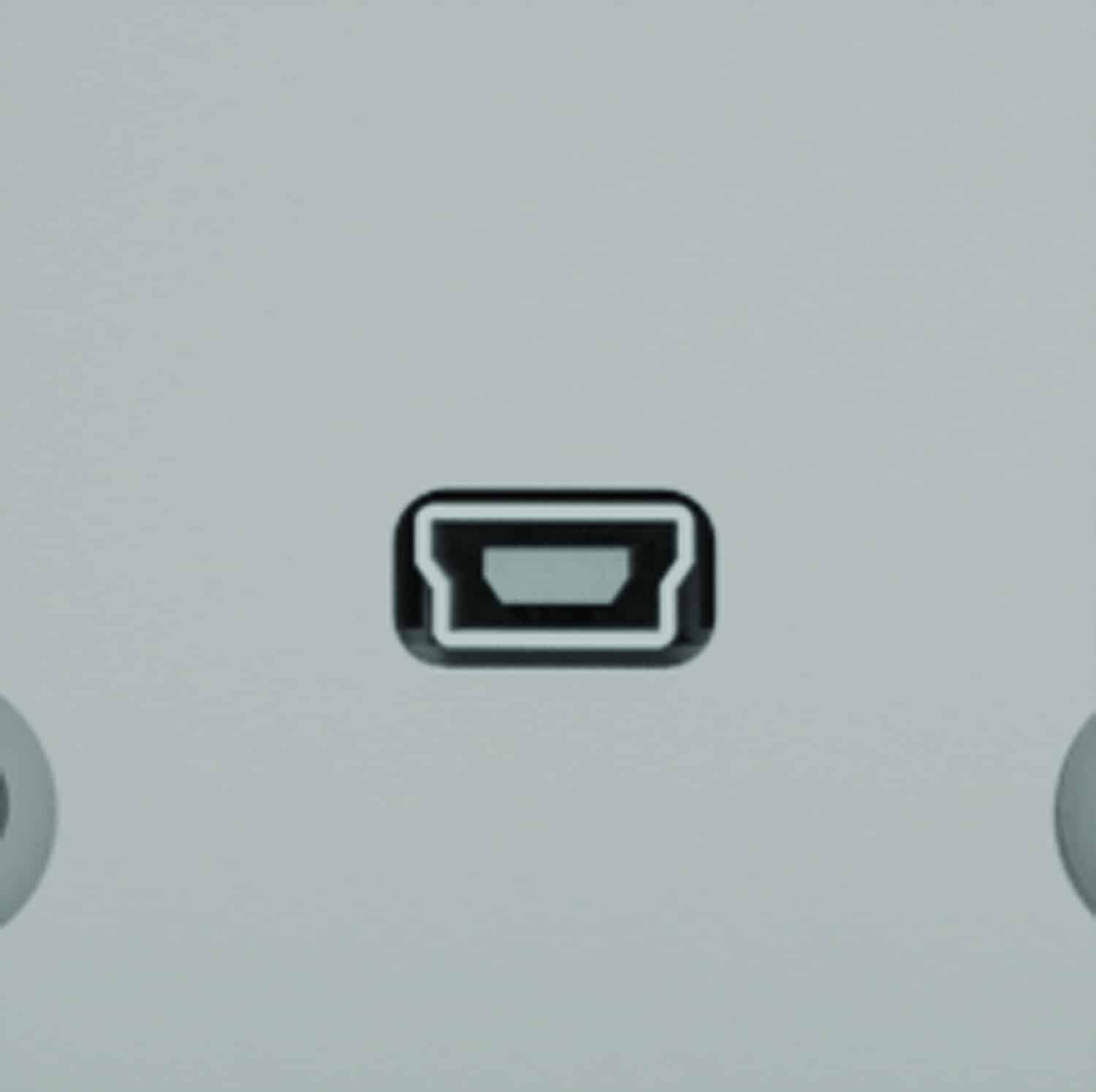

| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Proximity to RS232 ¹ Proximity to USB ¹ Mini-USB to USB ¹ View cables info |
||||
| Anvils clamping dimension (mm) | Ø1.5 | ||||

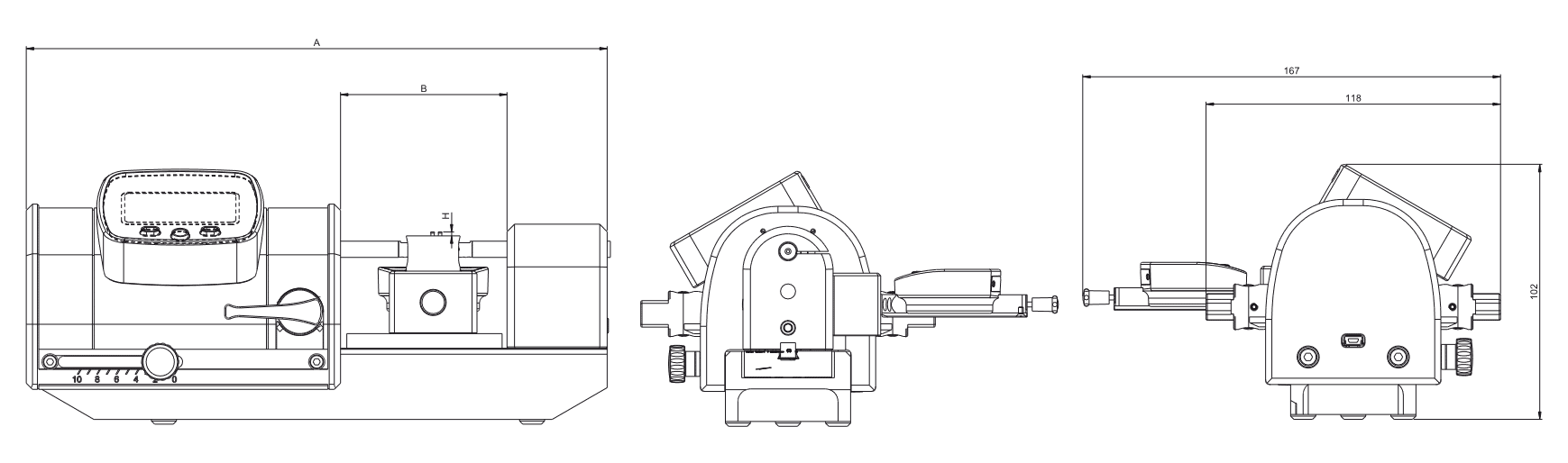

| A (mm) | 232 | ||||
| B (mm) | 60 | ||||
¹ Device: PC, display unit, …
² ± 20%
Spécifications
Internal measurement
| 808-1335 | 808-1336 | 808-1337 | 808-1338 | 808-1339 | |
| EAN | 7640125713664 | 7640125714067 | 7640125713671 | 7640125713688 | 7640125713718 |
| Max. capacity C (mm) | Ø0.8-1.3 | Ø1.3-2.5 | Ø2.5-4.0 | Ø4.0-8.0 | Ø8.0-12.5 |
| Max. error (µm) | 1.5 | ||||
| Repeatability (µm) | 1 | ||||
| Resolution (µm) | 0.1 | ||||
| Measuring force (Adjustable) (N) | 0.1 – 0.6 ² | ||||
| Weight (kg) | 4.1 | ||||
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Proximity to RS232 ¹ Proximity to USB ¹ Mini-USB to USB ¹ View cables info |
||||
| Anvils clamping dimension (mm) | Ø1.5 | ||||
| A (mm) | 232 | ||||
| B (mm) | 60 | ||||
¹ Device: PC, display unit, …
² ± 20%
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications |
| Lithium battery CR2477 included |
| Adapter for Lithium battery CR2032 |
| Instruction manual |
| Calibration certificate |
| Table and anvils according to technical specification |
| Mini indicator and 2 setting rings included |
| Dust cover |
Accessories
|
Accessories
|
||
 |
926-6723 | Proximity RS232 |
 |
926-6721 | Proximity USB |
 |
926-6001 | Mini USB-USB |
 |
985-2216 | Battery CR2477 |
 |
926-7022 | S_Footswitch Smart |
